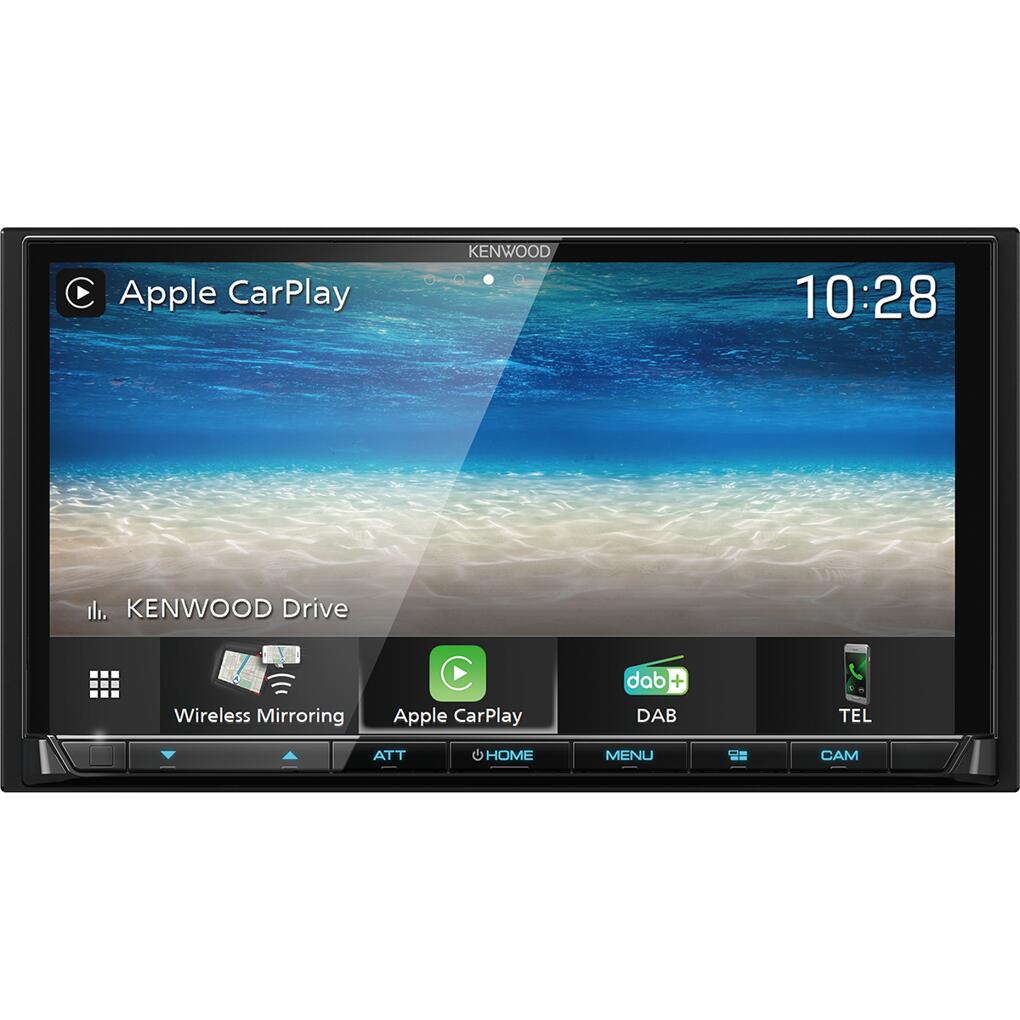

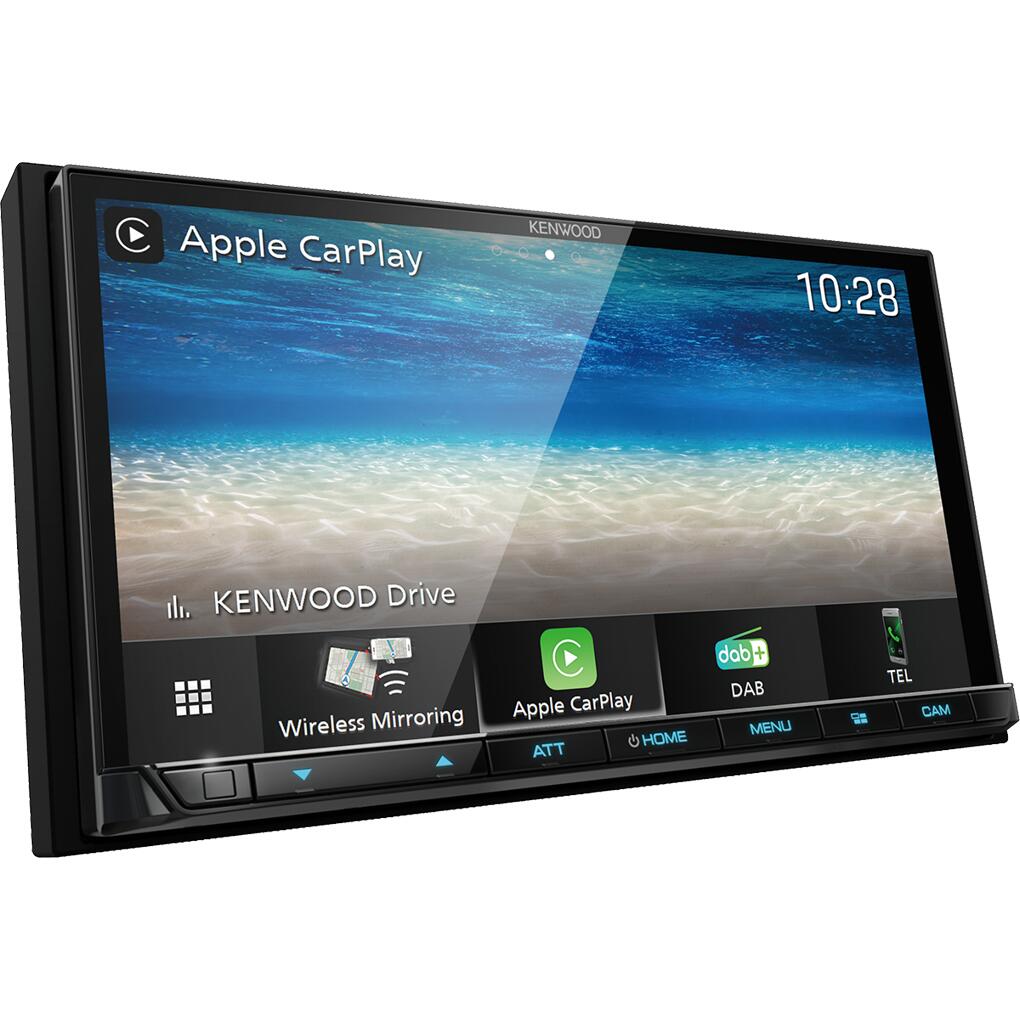

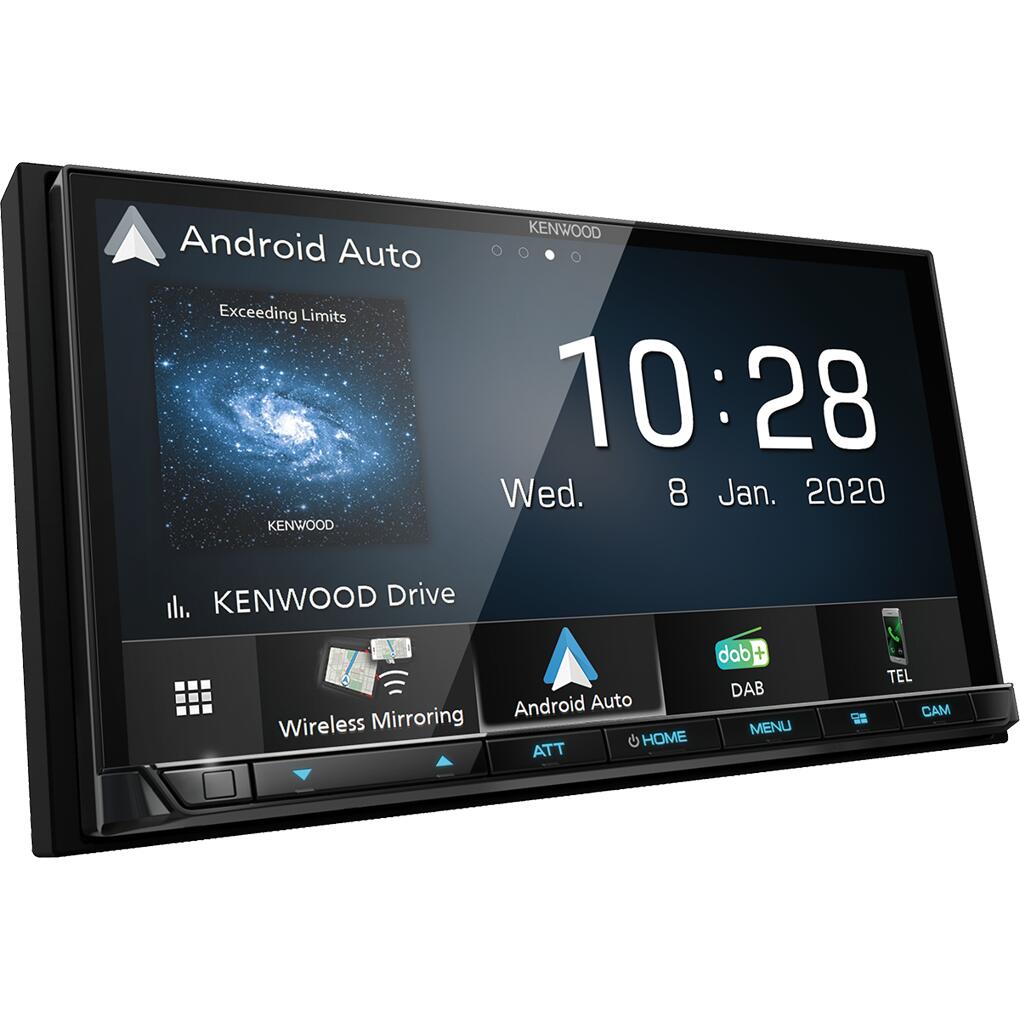

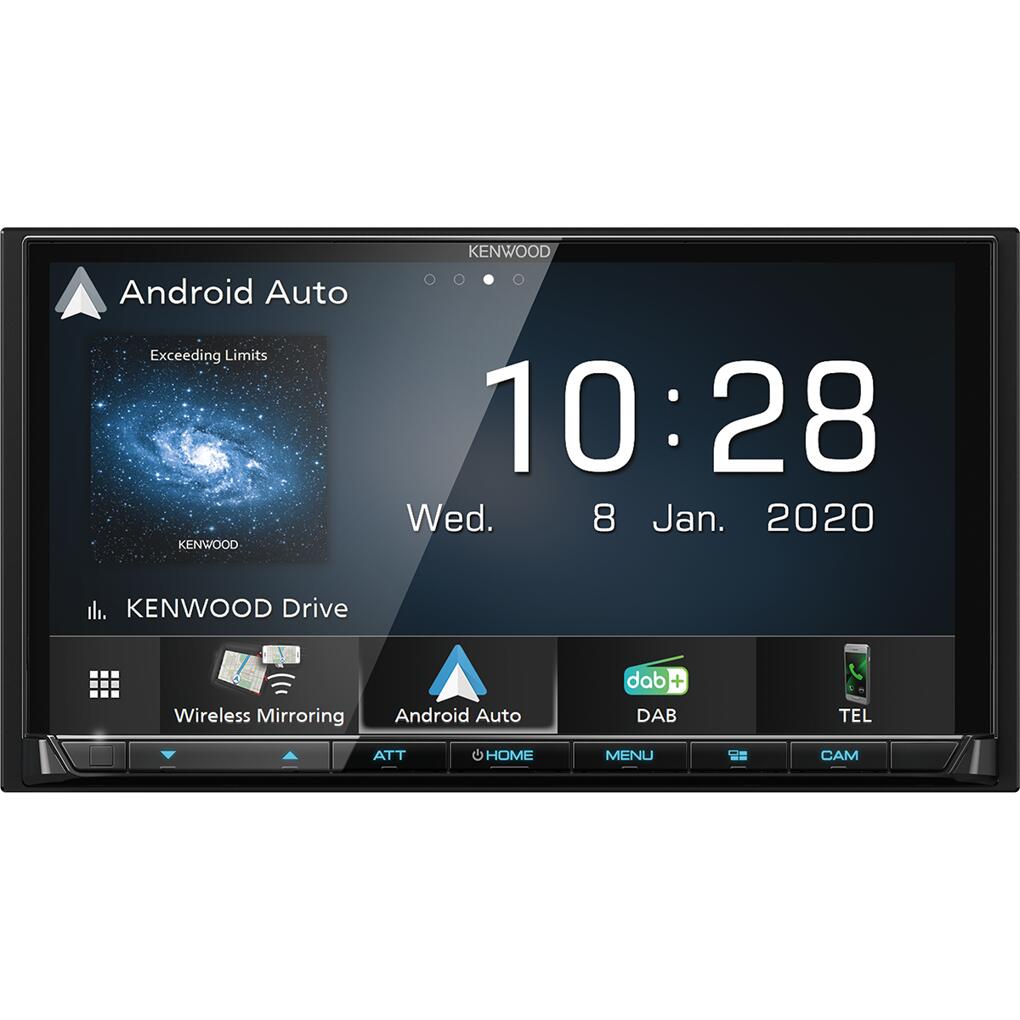

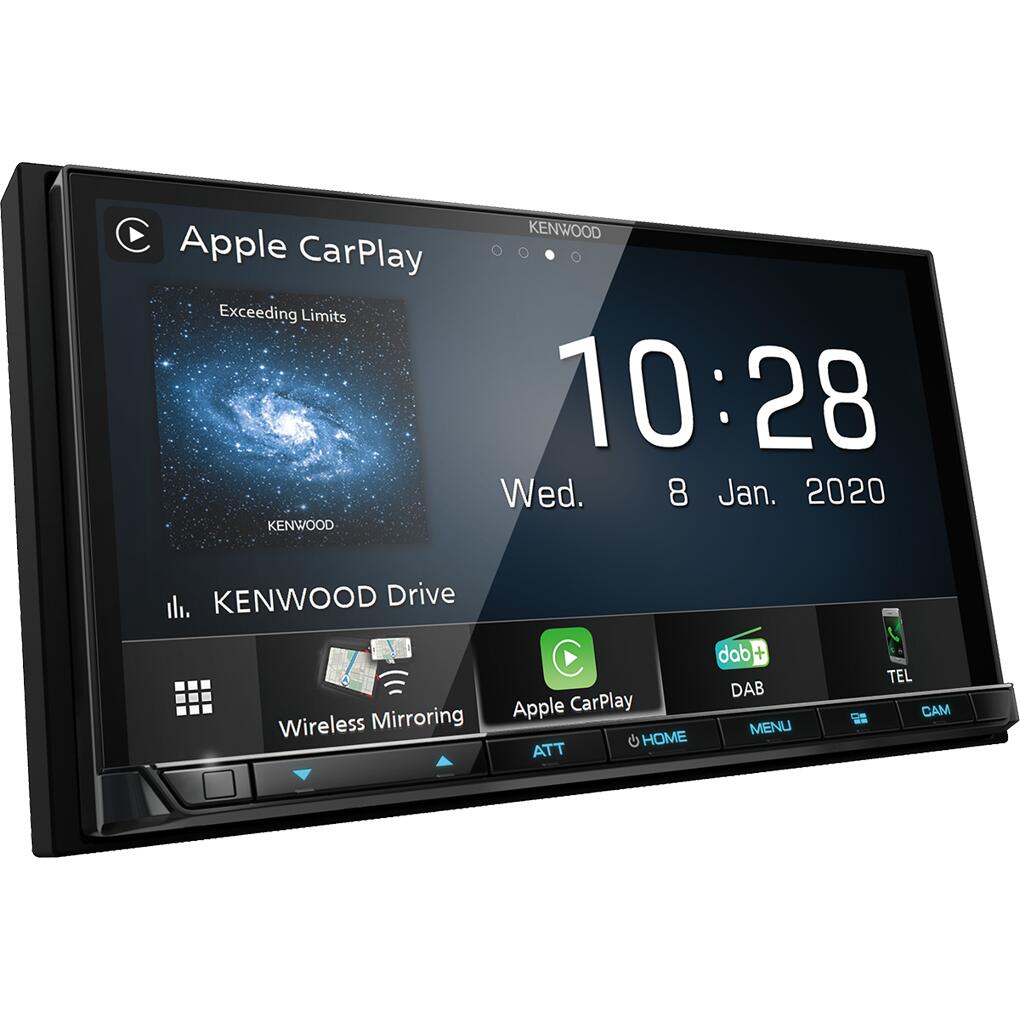

DMX-8020DABS 2DIN KENWOOD DE 7″, WiFi/USB/BT/DAB+ CONTROL SMARTPHONE WIRELESS
Detalii produs
Sistem Multimedia cu ecran de 7,0″, WiFi, Bluetooth și radio digital DAB + încorporat.
Service autorizatpentru instalari profesionale
Sistem Multimedia cu ecran de 7,0″, WiFi, Bluetooth și radio digital DAB + încorporat.
- Noile aparate Kenwood cu Wi-Fi acceptă acum Apple CarPlay™ si Android Auto fără fir.
- Wireless mirroring for Android – este o soluție revoluționară pentru afișarea și controlul fără probleme a aplicațiilor smartphone-ului pe ecranul mare fără cabluri. Funcția este disponibilă pe telefoanele Android compatibile. Unele caracteristici, aplicații și servicii nu sunt disponibile în fiecare regiune.
- USB Mirroring for Android – vă permite să afișați și să controlați smartphone-ul dvs. Android pe ecranul aparatului prin USB. Vă puteți bucura de aplicațiile preferate pe un ecran mare, cu o calitate a sunetului impresionantă. Înainte de a porni True Mirroring, trebuie doar să instalați aplicația gratuită „Mirroring for KENWOOD” pe smartphone și să va conectați la aparat prin Bluetooth, precum și printr-un cablu USB.
- Trei intrări de cameră – Puteți conecta până la 3 camere la acest aparat: o cameră marsarier cu linii de ghidaj, K și o cameră pentru unhiul mort (stânga/dreapta). Intrarea AV poate fi alocată ca a treia intrare de camera. Setarea tipului de cameră și comutarea afișajului între 3 camere pot fi operate cu ușurință prin intermediul ecranului mare al aparatului.
- Ecran tactil WVGA de 7,0″
- Wifi încorporat
- DAB+ Radio digital și receptor FM/AM
- Bluetooth Hands Free & Audio Streaming
- Compatibil cu USB și fără fir pentru Apple CarPlay®
- Compatibil cu USB și fără fir pentru Android Auto™
- Mirroring pentru Android prin USB și fără fir
- Pana la 3 intrări de cameră
- 3 ieșiri RCA de mare putere (5V) (față/spate/sub)
- Compatibil cu High Res Audio
- Digital Sound Processor, Time Alignment & Egalizator 13 benzi
- Port USB 2.0 de mare viteză
Caracteristici tehnice:
| DIN Size |
2 DIN |
| Security Code Function ( user set) |
Yes, Set by user |
| Smooth GUI |
Yes |
| Selectable GUI Background Wallpaper |
Yes |
| Key Illumination |
Variable color |
| Installer Memory |
Yes |
| Back-up Memory |
Yes |
| Attenuator with Smooth Volume Return |
Yes |
| Optional IR remote controller |
Yes, (KCA-RCDV331) |
| Digital Clock (24H) |
Yes |
| Built-in Bluetooth |
Yes |
| DAB Tuner Built-in |
Yes |
| Works with Apple CarPlay |
Yes |
| Works Wireless with Apple CarPlay |
Yes |
| Works with Android Auto |
Yes |
| Works Wireless with Android Auto |
Yes |
| Android USB Mirroring |
Yes |
| Wireless Mirroring for Android |
Yes |
| Firmware upgreadable |
Yes |
| HDMI input |
for video playback |
| Dashcam Link |
Yes |
| GPS input |
GPS & Glonass Antenna included |
| Screen Type |
7,0″ Wide VGA |
| Display Mode |
3 Mode (Full(default)/Auto/Normal) |
| Screen Adjustments |
► Noon & Night Memory.► Brightness.► Tint.► Colour.► Contrast.► Black Level.► Backlight. |
| Dimmer function |
Manual/Sync |
| Dimmer Level |
Sync / On / Off |
| Visual Source Mode |
Mirorring / CarPlay / Android Auto. |
| Touch Panel |
Capacitive |
| Display Type |
Glare |
| Display film |
Anti-Fingerprint / Anti-Reflection / Anti-Glare) |
| LCD viewing angle control |
„0” (Default) / „-1” / „-2” / „-3” |
| NTSC/PAL judge |
Yes (Auto) |
| Menu text |
22 languages:► English(UK)(Default)► English(US)► Spanish► French► German► Italian► Dutch► Russian► Portuguese► Chinese (Simplified)► Chinese (Traditional)► Thai► Turkish► Arabic► Persian► Hebrew► Greek► Malaysian► Indonesian► Polish► Czech► Hungarian |
| Software updates (SoC) |
via USB |
| Graphics Type |
Graphics |
| Spectrum Analyzer |
Yes |
| Demonstration Mode |
Yes |
| Top Menu Customize |
Yes |
| Opening Screen Type |
standard |
| Background Customize |
Preset x6:► Static x4.► Colour Customize x1.► Sync Album Art x1.► USER x2. |
| Wallpaper colour change |
Yes |
| Multi Widgets |
Multi (up to 4), Clock, Weather & Photo Frame Widget |
| Picture in picture |
Yes |
| Animation |
Yes |
| Screen Capture |
Yes |
| R-CAM interrupt |
Yes |
| R-CAM Caution On Screen Display |
Yes |
| R-CAM Parking Guide Lines |
Yes |
| Front Camera Interruption |
Yes |
| DashCam Control |
Yes |
| Rapid charge indicator |
Yes |
| WiFi built-in |
built-in |
| Frequency Range |
Dual Band (2.4GHz / 5GHz) |
| IEEE standard |
802.11a/b/g/n/ac |
| Wifi connection for Apple CarPlay |
Yes |
| Wifi connection for Android Auto |
Yes |
| Wifi connection for Android Mirroring |
Yes |
| Station Select |
Manual / Preset (List) |
| Tuner Type |
Lithio |
| FM(RDS) + AM(MW/LW) Tuner |
Yes |
| Tuner Presets (FM/AM) |
20 Presets (15FM / 5AM) |
| Preset memory w/o back-up power |
Yes |
| Tuning mode |
|
| Up/Down Seek/Scan |
Yes |
| Automatic Memory Entry (AME) |
Yes |
| FM Stereo / Mono Selector |
Yes |
| Radio Data System |
Yes |
| Radio Text Plus |
Yes |
| Traffic Information |
Yes |
| Local search |
Yes |
| AF Regional |
Selectable: AF/AF Reg/OFF |
| Auto TP search |
Yes |
| Enhanced Other Networks Function (EON) |
Yes |
| Program Type Function (PTY) |
Yes |
| DAB+ tuner built-in |
Yes |
| Digital Radio Certification Mark |
Yes |
| Intelligent seek |
Yes, (Service, Ensemble & Component) |
| Ensemble seek |
Yes |
| Tuning mode / Seek mode |
Auto1/Auto2/Manual |
| Service preset |
15 ch * 1 bank presets, |
| Service list by alphabet order |
Yes |
| Preset list |
Yes |
| Alphabet Search |
Yes |
| Related service |
Yes |
| Traffic Information |
Yes |
| DAB priority |
Yes |
| DAB-DAB/DAB-FM auto switch |
Yes |
| Seamless DAB-FM blending |
Yes |
| DLS (Dynamic Label) |
Yes |
| PTY (Programme Type) search |
Yes |
| PTY (Programme Type) watch |
Yes |
| Announcement Switching (ASW) Select |
Yes |
| TMC (Traffic Message Channel) support |
Yes |
| DMB Audio (Digital multimedia broadcasting) |
Yes |
| Soft linking |
Yes |
| Antenna power supply on/off switch |
Yes |
Bluetooth General Features
| Module |
Murata |
| Hands Free Profile (HPF) |
V1.7 |
| Hands Free Profile with High Sound Quality |
HFP V1.7 |
| 2 Phones Switchable Hands Free |
Yes |
| 2 phones fulltime connection |
Yes |
| Audio Streaming (A2DP) |
Yes, (SBC/AAC) |
| High Quality Audio Streaming |
SBC/AAC |
| Max num. of regist. units for A2DP |
5 units |
| Serial Port Profile (SPP) |
Yes |
| Simple Secure Pairing (SSP) |
Yes |
| Phonebook Access Profile (PBAP) |
Yes |
| Audio/Video Remote Control Profile (AVRCP) |
Yes, V1.6 |
| Multi Profile Support |
Yes |
| iPhone & Android automatic pairing via USB |
Yes |
| KENWOOD Remote App Ready |
|
| KENWOOD Music Mix Support |
Yes |
| Catchphone / Call Waiting |
Yes |
| Private mode |
Yes |
| Alphabet Search (Phonebook) |
Yes |
| Noise Canceller |
Yes |
| Echo Canceller |
Yes |
| Phone device status display |
Yes |
| Audio device status display |
Yes |
| Signal strength display |
Yes |
| Remaining battery display |
Yes |
| High-quality noise canceling microphone |
Included (rear wired) |
| AAC (*.m4a) files are playable |
USB |
| AAC (*.aac) files are playable |
USB |
| MP3 files are playable |
USB |
| WMA (.wma) files are playable |
USB |
| WAV (.wav) files are playable |
USB |
| FLAC files are playable |
USB |
| MPEG1/2 files are playable |
USB |
| MPEG4 files are playable |
USB |
| WMV files are playable |
USB |
| H.264 files are playable |
USB |
| mkv files are playable |
USB |
| JPEG files are playable |
USB |
| BMP files are playable |
USB |
| PNG files are playable |
USB |
| USB terminal |
Yes, Rear USB 2.0 (Full Speed) |
| USB Type |
2.0 High speed |
| USB extension cable supplied |
2x 1 meter |
| Drive Change |
Yes |
| Works with Android Auto |
Yes |
| USB 1 wire Mirroring for Android |
Yes |
| Tag Information Display |
Yes |
| Album Art Display |
Yes |
| Repeat/Scan/Random search |
Yes |
| Repeat Play |
Folder/File/All |
| Random play |
Folder |
| Category search |
Yes |
| Link Search |
Yes |
| Resume play |
Yes |
| Time code display |
Yes |
| Made for iPod & iPhone * |
Yes |
| USB Direct Control (Audio, 1 wire, Lightning-connector) |
with optional cable KCA-iP103 |
| Album art support |
Yes |
| Music library search |
Yes |
| Alphabet search |
Yes |
| Skip search |
Yes |
| iPod Accessory Protocol (iAP) |
iAP2 |
| iTunes Radio App |
yes iAP2 |
| Works with Apple CarPlay |
Wireless or Wired via USB |
| Reverse browsing |
Yes |
| Voice Control using Siri. |
Yes |
| Bluetooth Auto Paring for iPhone |
Yes |
| Battery charge + power control |
Yes |
| * Always update to latest Apple firmware |
|
| Max. Output Power (MOSFET Power IC) |
4 x 50W |
| Pre-out |
3RCA: Front/Rear/Subwoofer |
| Pre-out Output Level |
5V |
| Volume Offset |
Yes |
| 2 Zone Control |
Yes |
| Balance/Fader Control |
Yes, (via DSP) |
| Loudness Control |
Yes, By DSP |
| Bass Boost |
Yes, (Via DSP) |
| Att.(-20dB) with smooth Volume Return |
Yes |
| Equalizer |
Yes, 13 Band Graphic EQ |
| Digital Sound Processor (DSP) |
Yes |
| Digital Time Aligment (DTA) |
Yes |
| Beep On/Off |
Yes |
| Car type control |
Off / Compact / Sedan / Wagon / Minivan / SUV / Passenger Van |
| Speaker Size & Location Control |
Yes |
| X’over network |
3-Way / 2-way X’over / HPF / LPF |
| Listening postion control / Time Alignment |
Yes |
| Equalizer type |
Graphical |
| Equalizer |
13-Bands |
| Equalizer presets / User set |
8 presets / 4 User set |
| Zone Control |
1 Zone / 2 Zone |
| Balance & Fader Control |
Yes |
| Source Volulme Offset |
source independent |
| Sound Effects |
► Bass Boost► Supreme► Loudness► Realizer► Drive Equalizer► Stage EQ► Space Enhancer |
| Audio Setup Memory |
Yes |
| iPod direct control |
Yes |
| USB interface |
2 x USB 2.0 (pigtail) |
| OEM Wired Remote Control ready |
Yes, Optional interface needed |
| OEM Display Control ready |
Yes, Optional interface (KIM) needed |
| Programmable OEM Steeringwheel Remote Function |
Yes |
| Display input/output control |
Yes |
| DC-Cord |
Mitsumi to ISO |
| Parking sensor (handbrake) wire |
Yes |
| Power Control (P.CON) wire |
Yes |
| 2-way (Tel/Navi) mute wire |
Yes |
| Dimmer control wire |
Yes |
| Speedpuls input wire |
Yes |

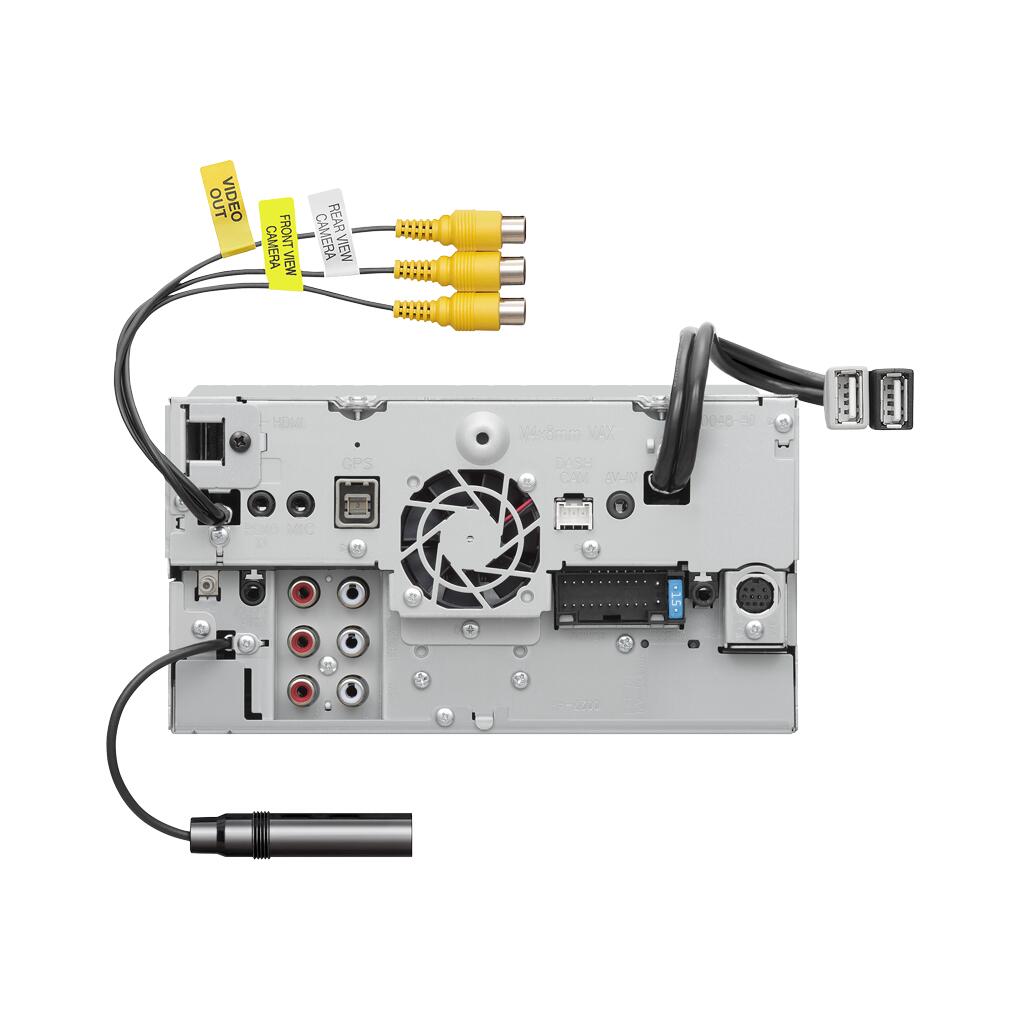

| AV-Input |
1x mini-jack (selectable: AV-in / Camera-in) |
| AV Output |
Video: RCA / Audio: mini-jack |
| Available AV-Out source |
AV-in / Off |
| Reverse sensor wire |
Yes |
| Rear View Camera Input |
Dedicated RCA Video-in |
| Front View Camera Input |
selectable: Front / Dash-Camera-in |
| Camera inputs |
up to 3 camera’s |
| Multi View Camera Control Line |
Yes |
| Dashcam Link |
Yes |
| Amplifier pre-out |
3 x RCA: Front/Rear/Subwoofer |
| 3rd Party TV Control (Mini-Jack) |
Yes |
| HDMI input |
Type A |
| GPS Aerial Input |
HRS GT5-1S connector |
| FM Antenna Input |
JASO connector |
| DAB Aerial input |
SMB connector |
| External microphone input |
3,5mm mini-jack |
| FM range: 87.5Mhz – 108MHz (50Khz step) |
Yes |
| FM Usable Sensitivity |
0.8μV/75ohm (S/N 30dBf) |
| FM Quieting Sensitivity |
1.6μV/75ohm (S/N 15.2dBf) |
| FM Frequency Response |
30Hz ~ 15kHz (± 3dB) |
| FM Signal to noise ratio (Mono) |
65dB |
| FM Selectivity(DIN) |
over 80dB (±400kHz) |
| FM Stereo Separation (1kHz) |
45dB |
| MW range: 531kHz – 1611kHz (9kHz step) |
Yes |
| MW Usable Sensitivity |
45μV |
| LW range: 153kHz – 279kHz (9kHz step) |
Yes |
| LW Usable Sensitivity |
25μV |
| Band III – Frequency range |
174.928 MHz – 239.2MHz |
| Mode |
I, II, III, IV |
| Sensitivity |
– 100dBm |
| Signal to noise ratio |
90dB |
| Audio format |
MPEG1 Audio Layer II, MPEG4 HE-AAC v2 |
| DAB Aerial Connector Type |
SMB |
| Output Voltage |
14.4V (11V to 16V allowable) |
| Maximum Current |
< 100 mA |
| Technology |
Bluetooth V5.0 |
| Frequency |
2.402 – 2.48 GHz |
| Output power |
+4dBm(max), power class 2 |
| Maximum range |
Line of sight approx. 10 meter |
| Handsfree profile (HFP) |
Yes, V1.7 |
| Serial port profile (SPP) |
Yes |
| Advanced audio distribution profile (A2DP) |
Yes |
| Audio Codec |
SBC/AAC |
| Audio/Video remote control profile (AVRCP) |
Yes, V1.6 |
| Phonebook access profile (PBAP) |
Yes |
| Multi Profile Support |
Yes |
| USB Version compatibility |
USB 2.0 High Speed |
| File System |
FAT 16/32 / exFAT / NTFS |
| Maximum Supply current |
1500mA |
| D/A Converter |
24/32 bit |
| Video Decoder |
MPEG1/MPEG2/MPEG4/WMV/H.264/MKV |
| Audio Decoder |
MP3/WMA/AAC/WAV/FLAC/Vorbis |
| S/N Ratio |
98.5 dB (1kHz) |
| Dynamic Range |
89dB |
| Maximum Power |
50W x 4 |
| Output Power (DIN45324,+B=14.4v) |
22W x 4 |
| Output frequency band |
20Hz ~ 88kHz |
| Preout Level |
5000mV / 1kOhm, |
| Preout Impedance |
≤ 300Ohm |
| Speaker Impedance |
4Ohm ~ 8Ohm |
| Frequency band |
62.5/100/160/ ~ /6.3k/10k/16k Hz |
| Equalizer Gain |
–9db ~ +9db |
| Time Alignment |
0 — 610cm(1 cm step) |
| Speaker type – Center |
► NONE► 40mm X 70mm► 5cm► 10cm► 13cm► 16cm OVER |
| Speaker type – Front |
► O.E.M.► 10cm► 13cm► 16cm► 17cm► 18cm► 4″ x 6″► 5″ x 7″► 6″ x 8″► 6″ x 9″► 7″ x 10″ |
| Speaker type – Rear |
► NONE► O.E.M► 10cm► 13cm► 16cm► 17cm► 18cm► 4″ x 6″► 5″ x 7″► 6″ x 8″► 6″ x 9″► 7″ x 10″ |
| Speaker type – Sub woofer |
► NONE► 16cm► 20cm► 25cm► 30cm► 30cm over |
| 2-Way X’over / Front/Rear (HPF) / Frequency |
Through, 30/40/50/ ~ /220/250 Hz |
| 2-Way X’over / Front/Rear (HPF) / Slope |
-6/-12/-18/-24 (dB/oct) |
| 2-Way X’over / Subwoofer (LPF) / Frequency |
30/40/50/ ~ /220/250 Hz, Through |
| 2-Way X’over / Subwoofer (LPF) / Slope |
-6/-12/-18/-24 (dB/oct) |
| 3-Way X’Over / High Pass Filter Frequency |
Through, 30/40/50/ ~ /220/250 Hz |
| 3-Way X’Over / High Pass Filter Slope |
-12/-18/-24 (dB) |
| 3-Way X’Over / Low Pass Filter Frequency |
30/40/50/ ~ /220/250 Hz, Through |
| 3-Way X’Over / Low Pass Filter Slope |
-12/-18/-24 (dB/Oct |
| Subwoofer Level |
-50dB ~ 10dB |
| Car type control |
► Off► Compact► Sedan► Wagon► Minivan► SUV► Passenger Van |
| Color System of External Video Input |
NTSC/PAL |
| External video input level (mini-jack) |
1 Vpp / 75 Ohm |
| External audio max. input level (mini-jack) |
2 Vpp / 25 kOhm |
| Video input level (RCA) |
1 Vpp, 75 Ohms |
| Video Output Level (RCA) |
1 Vpp / 75 Ohm |
| Audio Output Level (mini-jack) |
0.9 Vpp / 10 kOhm |
| HDMI – VGA input resolution |
640x480p @59.94Hz/60Hz |
| HDMI – 480p input resolution |
720x480p @59.94Hz/60Hz |
| HDMI – 720p input resolution |
1280x720p @59.94Hz/60Hz |
| HDMI – input Audio type |
16/20/24-bit Linear PCM |
| Screen size (Diagonal) |
6.95 Inches Wide |
| Screen Size (WxH) |
156.6 x 81.6mm |
| Display system |
Transparent TN LCD Panel |
| Drive system |
TFT Active Matrix System |
| Number of Pixels |
1152000pixels (800(H) x 480(V) x RGB) |
| Effective pixels |
99.99% |
| Pixel arrangement |
RGB Striped |
| Back lighting |
LED (Light Emitting Diode) |
| Operating voltage |
14.4V (11 ~ 16V Allowable) |
| Dimensions (WxHxD) |
178 x 100 x 155mm |
| Weight |
1700 gr. |
| Release keys |
2 pieces |
| Escutcheon |
Yes |
| Installation Sleeve |
Yes |
| DC cord (Mitsumi to ISO) |
20 cm |
| usb extension cable |
2 pieces, 1 meter |
| GPS antenna |
with 3.5 m cable |
| Handsfree Microphone |
with 3 m cable |
| Multi-Language Instruction Manual Included |
Quick-Guide + Instruction manual |
| Manuals Downloadable |
Yes |
| Instalare |
2Din
|
| Conexiuni |
USB/BT/DAB+/Wi-Fi
|
| Afisaj |
Multicolor
|
| Putere Max. |
4 x 50W
|
| Diagonala ecran |
7"
|
Produse similare
Preț vechi
0,00
Lei
(-%)
Preț
2.099,70
Lei
Preț vechi
0,00
Lei
(-%)
Preț vechi
0,00
Lei
(-%)
Preț
1.392,01
Lei
Preț vechi
0,00
Lei
(-%)
Preț vechi
0,00
Lei
(-%)
Preț
3.476,46
Lei
Preț vechi
0,00
Lei
(-%)
Preț vechi
0,00
Lei
(-%)
Preț
1.839,41
Lei
Preț vechi
0,00
Lei
(-%)
Preț vechi
0,00
Lei
(-%)
Preț
2.235,96
Lei
Preț vechi
0,00
Lei
(-%)
Preț vechi
0,00
Lei
(-%)
Preț
4.320,41
Lei
Preț vechi
0,00
Lei
(-%)
Preț vechi
0,00
Lei
(-%)
Preț
2.398,64
Lei
Preț vechi
0,00
Lei
(-%)
Preț vechi
0,00
Lei
(-%)
Preț
2.032,59
Lei
Preț vechi
0,00
Lei
(-%)
Preț vechi
0,00
Lei
(-%)
Preț
5.083,02
Lei
Preț vechi
0,00
Lei
(-%)
Preț vechi
0,00
Lei
(-%)
Preț
3.232,43
Lei
Preț vechi
0,00
Lei
(-%)
Contact
Adresa: Str. Drumul Sării, Nr. 98, sector 6, București
Telefon: 0744.496.176 / 021 411 00 50 / int.104
Email: magazin@alarmservice.ro, marius@alarmservice.ro, office@alarmservice.ro
înregistrează-te
Înscrieți-vă la newsletter-ul nostru.
