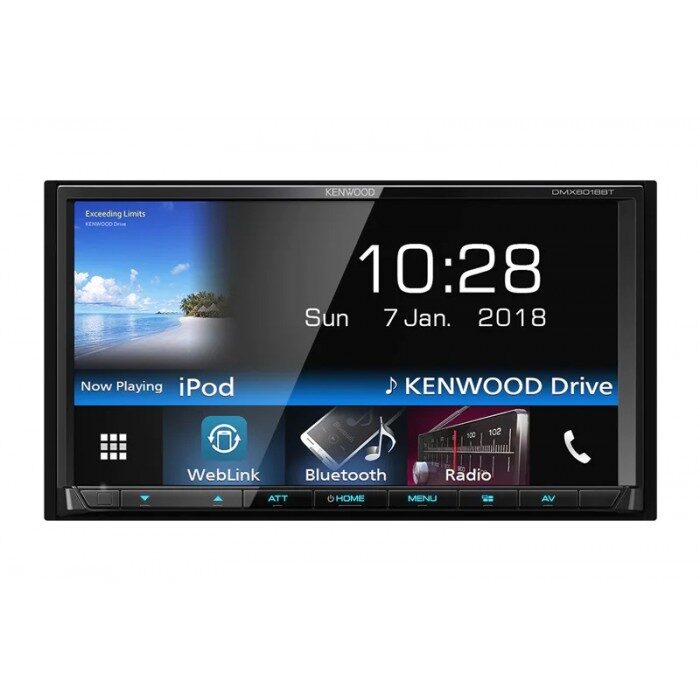

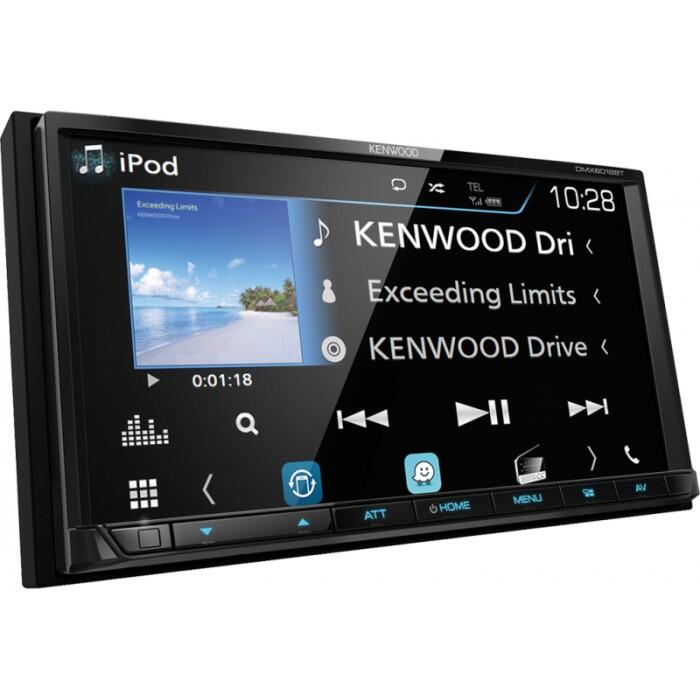

DMX-6018BT MEDIA PLAYER 2DIN KENWOOD DE 7" CU USB/BLUETOOTH

Cod pachet : DMX-6018BT
Adauga in Wishlist
compara...
Detalii produs

Media Player digital cu USB/Bluetooth si ecran de 7

Preț 2.099,70Lei
In stoc!
0 (0 recenzii)
Pret cu TVA
Cantitate
Livrare rapida
Service autorizatpentru instalari profesionale
Descriere produs

Media Player digital cu USB/Bluetooth si ecran de 7

  • Media player fara mecanism AV WVGA 7"
  • Bluetooth încorporat (HFP și streaming audio)
  • Pregatire pentru aplicația KENWOOD Remote
  • USB 2.0 din spate, încărcare rapidă 1,5A pentru smartphone
  • Funcționează cu WebLink
  • Funcționează cu aplicația Spotify
  • Redare Flac (96 kHz/24 biți)
  • Intrare AV, ieșire video, intrare RearCam
  • 3 ieșiri RCA (față-spate-sub) (4,0 V)
  • DSP - 13-Band EQ - DTA încorporat
Caracteristici tehnice:


General Features

DIN Size 2 DIN
On Screen Display (OSD) Operation Yes
Smooth GUI Yes
Selectable GUI Background Wallpaper Yes
Key Illumination Variable color
Installer Memory Yes
Back-up Memory Yes
Attenuator with Smooth Volume Return Yes
Touch Sensor Tone Yes
Optional IR remote controller Yes, (KNA-RCDV331)
Digital Clock (24H) Yes
ISO connector Yes
Bluetooth unit built-in Yes
Firmware upgreadable Yes

Monitor Features

Screen Type 7,0" Wide VGA
High Resolution VGA Display Yes
LCD type 7.0 inch Wide VGA
LCD backlight LED
Display Mode 3 Mode
Display full mode default
Display auto mode Full - Normal/Regular
Display Normal / Regular mode Normal
Screen adjust: Noon / Night Memory Yes
Screen adjust: Brightness Yes
Screen adjust: Tint (Only NTSC) Yes
Screen adjust: Colour Yes
Screen adjust: Contrast Yes
Screen adjust: Blacklight Yes
Dimmer function Manual/Sync
Dimmer Level Auto/On/Off
Visual Source Mode WebLink
Touch Panel Clear resistive
Display Type Glare
Mechanism type Auto Slide
Mechanism Angle Adjustment 7 steps
Mechanism Postion Memory Yes
LCD viewing angle control "0" (Default) / "-1" / "-2" / "-3"
NTSC/PAL judge Yes (Auto)
Display Off Mode Yes
AV Off Yes

Multimedia GUI Features

Menu text 21 languages: ► English(UK)(Default) ► English(US) ► Spanish ► French ► German ► Italian ► Dutch ► Russian ► Portuguese ► Chinese (Simplified) ► Thai ► Turkish ► Arabic ► Persian ► Hebrew ► Greek ► Malaysian ► Indonesian ► Polish ► Czech ► Hungarian
Software updates (SoC) by USB
Graphics Type Graphics
Demonstration Mode Yes
Top Menu Customize Yes
Background Customize 6 preset (5 static, illumi-sync)
Wallpaper colour change yes
Animation Yes
Screen Capture Yes
R-CAM interrupt Yes
R-CAM Caution On Screen Display Yes
R-CAM Parking Guide Lines Yes

Tuner Features

Station Select Manual / Preset (List)
Tuner Type SiLab
FM Reception Yes
AM (MW/LW) Reception Yes
Tuner Presets (FM/AM) 20 Presets (15FM / 5AM)
Tuning mode Auto1/Auto2/Manual
Up/Down Seek/Scan Yes
FM Stereo / Mono Selector Yes
Radio Data System Yes
Radio Text Plus Yes
Traffic Information Yes
Local search Yes
AF Regional Selectable: AF/AF Reg/OFF
Auto TP search Yes
Enhanced Other Networks Function (EON) Yes
Program Type Function (PTY) Yes
PTY News Off/0/10/20/.../80/90min

Bluetooth General Features

Max num. of regist. phones for HFP & A2DP 10 phones
Hands Free Profile (HPF) V1.6
Hands Free Profile with High Sound Quality HFP V1.6
2 phones fulltime connection Yes
Advanced Audio Distribution Profile (A2DP) Yes, V1.3
High Quality Audio Streaming SBC/AAC
Serial Port Profile (SPP) Yes, V1.2
Simple Secure Pairing (SSP) Yes
Phonebook Access Profile (PBAP) Yes
Generic Access Profile (GAP) Yes
Service Discovery Profile (SDP) Yes
Wireless Music Browsing (AVRCP 1.5) Yes
iPhone automatic pairing via USB Yes
Voice Dialing / Siri Eyes Free Yes
Spotify App Link Yes
KENWOOD Remote App Ready Yes
Catchphone / Call Waiting Yes
Private mode Yes
Phone numbers hold: up to 1000 per registed cell-phone.
Alphabet Search (Phonebook) Yes
Noise Canceller Yes
Echo Canceller Yes
Signal strength display Yes
Remaining battery display Yes
High-quality noise canceling microphone Included (rear wired)
Bluetooth firmware upgradeable Yes
* depends on phone model/make

CE_Playable Video file

MPEG1/2 files are playable USB
MPEG4 files are playable USB
WMV files are playable USB
H.264 files are playable USB
mkv files are playable USB
JPEG files are playable USB (for wallpaper)
BMP files are playable USB (for wallpaper)
PNG files are playable USB (for wallpaper)

USB Features

Rear USB Terminal Yes, 1m pig Tail
USB Type 2.0 High speed
Drive Change Yes
Android USB Mass Storage Class (MSC) Yes
Works with WebLink Yes
Repeat Play Folder/File/All
Random play yes
Category search Yes
Resume play Yes
Time code display Yes
1,5A Charge Capability for Smartphone (BC 1.2). Yes

iPod Features

Made for iPod & iPhone * Yes
USB Direct Control (Audio, 1 wire, Lightning-connector) with optional cable KCA-iP103
Music playback Yes
Album art support Yes
Music library search Yes
Alphabet search Yes
Direct Search Yes
iPod EQ Mode Yes
Control by hand Yes
Spotify App Link Yes
iPod Accessory Protocol (iAP) iAP2
iAP over Bluetooth Yes
Reverse browsing Yes
Voice Control using Siri. Yes
Bluetooth Auto Paring for iPhone Yes
Battery charge + power control Yes
* Always update to latest Apple firmware

Audio features

Max. Output Power (MOSFET Power IC) 4 x 50W
Pre-out 3RCA: Front/Rear/Subwoofer
Pre-out Output Level 4V
Volume Offset Yes
Subwoofer Phase Control Yes
Subwoofer Reference Level Adj. Yes
Balance/Fader Control Yes
Loudness Control Yes
Bass Boost Yes
Att.(-20dB) with smooth Volume Return Yes
Digital Sound Processor (DSP) Yes
Beep On/Off Yes

Multimedia DSP Features

DSP Chip AK7601
Position Control Yes
Graphic Equalizer 13 bands
G-EQ manual setting Yes
Time Alignment 0cm ~ 610cm
HPF Cut Off Frequency 14
HPF Cut Slope Level 4
Low Pass Filter (LPF) Yes (Non-Fading)
LPF Cut Off Frequency 14
LPF Cut Slope Level 4
Cross-over Yes
3-Way X'Over Yes
Source DSP Memory Yes
Speaker Size Control Yes
Car type control Yes, ► Off► Compact► Sedan► Wagon► Minivan► SUV► Passenger Van
Channel Level Control Yes
Space Enhancer Yes
Supreme Yes
Realizer Yes
Loudness Yes
Stage EQ Yes
Tweeter volume Yes
Bass Boost Yes
Drive EQ Yes
Front Focus Yes

Connectivity

USB interface Rear Side
OEM Wired Remote Control ready Yes
Programmable OEM Steeringwheel Remote Function Yes
DC-Cord Mitsumi to ISO
Parking sensor wire Yes
Power Control (P.CON) wire Yes
2-way (Tel/Navi) mute wire Yes
Dimmer control wire Yes
AV-Input (Non Switchable)
AV Output Video only (RCA)
Reverse sensor wire Yes
Rear View Camera Input
Amplifier pre-out RCA: Front/Rear/Subwoofer
FM Antenna Input
External microphone input

Tuner Specifications

FM range: 87.5Mhz - 108MHz (50Khz step) Yes
FM Usable Sensitivity 0.56μV/75ohm (S/N 6.2dBf)
FM Quieting Sensitivity 1.58μV/75ohm (S/N 15.2dBf)
FM Frequency Response 30Hz ~ 15kHz (± 3dB)
FM Signal to noise ratio (Mono) 68dB
FM Selectivity(DIN) over 80dB (±400kHz)
FM Stereo Separation (1kHz) 40dB
MW range: 531kHz - 1611kHz (9kHz step) Yes
MW Usable Sensitivity 28.5μV
LW range: 153kHz - 279kHz (9kHz step) Yes
LW Usable Sensitivity 45μV

Bluetooth specifications

Technology Bluetooth V3.0
Frequency 2.402 - 2.48 GHz
Output power +4dBm(max), 0dBm (AVE) power class 2
Maximum range Line of sight approx. 10 meter
Handsfree profile (HFP) Yes, V1.6
Serial port profile (SPP) Yes, 1.2
Service discovery protocol (SDP) Yes
Advanced audio distribution profile (A2DP) Yes, 1.3
Audio Codec SBC/AAC
Generic access profile (GAP) Yes
Phonebook access profile (PBAP) Yes, 1.2

USB Specifications

USB Version compatibility USB 2.0 High Speed
File System FAT 16/32, NTFS
Maximum Supply current 1500mA
D/A Converter 24bit
MPEG1 Decoder MPEG-1 with MPEG Audio Layer 2
MPEG2 Decoder MPEG-2 with MPEG Audio Layer 2
MPEG4 Decoder (.mp4, .m4v)
H.264 Decoder mp4, .m4v, .avi, flv, f4v),
mkv Decoder (.mkv)
WMV Decoder Maximum resolution: 640 × 480
MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
WMA Decode Compliant with Windows Media Audio
AAC Decode AAC-LC "m4a" Files
WAV Decode Linear - PCM Files
flac Decode FLAC files up to 96kHz/24bit
S/N Ratio 104 dB (1kHz)
Dynamic Range 90dB

Audio Specifications

Maximum Power 50W x 4
Output Power (DIN45324,+B=14.4v) 22W x 4
Preout Level 4000mV / 10kOhm,
Preout Impedance ≤ 600Ohm
Speaker Impedance 4Ohm ~ 8Ohm
Graphical Equalizer 13-Band
G. EQ. Frequency (Hz) 62,5/100/160/250/400/630/1k/1k6/2k5/4k/6k3/10k/16k
G. EQ. Gain (dB) -8/-7/-6/.../-1/0/1/.../6/7/8
Subwoofer Level (dB) -15 dB to +15dB

DSP Specifications

Equalizer Type Graphic
Frequency band 13 bands
Frequency band 62/100/160/ ~ / 6.3k/10k/16k
Equalizer Gain –9db ~ +9db
Car type ► Off► Compact► Sedan► Wagon► Minivan► SUV► Passenger Van
Speaker type - Front OEM/8/10/12/13/16/17/18cm/4x6"/5x7"/6x8"/6x9"/7x10"
Speaker type - Rear OEM/8/10/12/13/16/17/18cm/4x6"/5x7"/6x8"/6x9"/7x10"
Speaker type - Sub woofer None/16/20/25/30/38cm
2-Way X'over / Front/Rear (HPF) / Frequency Trough/30/40/50/ ~ / 180/220/250Hz
2-Way X'over / Front/Rear (HPF) / Slope -6/-12/-18/-24 (dB/oct)
2-Way X'over / Subwoofer (LPF) / Frequency 30/40/50/ ~ / 180/220/250/Trough
2-Way X'over / Subwoofer (LPF) / Slope -6/-12/-18/-24 (dB/oct)
3-Way X'Over / High Pass Filter Frequency 1k/1.6k/2.5k/ ~ / 8k/10k/12.5kHz
3-Way X'Over / High Pass Filter Slope -6/-12 (dB)
3-Way X'Over / Band Pass Filter Frequency Trough/30/40/50/ ~ / 180/220/250Hz
3-Way X'Over / Band Pass Filter Slope -6/-12 (dB/Oct)
3-Way X'Over / Low Pass Filter Frequency 1k/1.6k/2.5k/ ~ / 8k/10k/12.5kHz/Trough
3-Way X'Over / Low Pass Filter Slope -6/-12 (dB/Oct)
Position: 2-Way (Front/Rear/Sub)Delay 0cm ~ 610cm (1cm step)
Subwoofer Level -50dB ~ 10dB
Position: 3-Way (Tw/Mid/Sub) Delay 0cm ~ 610cm (1cm step)
Postion Gain -50dB ~ 10dB

Video Specifications

Color System of External Video Input NTSC/PAL
External video input level (mini-jack) 1 Vpp / 75 Ohm
External audio max. input level (mini-jack) 2 Vpp / 25 kOhm
Video input level (RCA) 1 Vpp, 75 Ohms
Video Output Level (RCA) 1 Vpp / 75 Ohm

Monitor Specifications

Screen size (Diagonal) 6.95 Inches Wide
Screen Size (WxH) 156.6 x 81.6mm
Display system Transparent TN LCD Panel
Drive system TFT Active Matrix System
Number of Pixels 1152000pixels (800(H) x 480(V) x RGB)
Effective pixels 99.99%
Pixel arrangement RGB Striped
Back lighting LED (Light Emitting Diode)

General Specifications

Operating voltage 14.4V (10.5 ~ 16V Allowable)
Maximum Current Consumption 10A
Dimensions (WxHxD) 182 x 111 x 160mm
Weight, inclu. sleeve & escutcheon 2.2 kg
Operation Temperature Range -10°C ~ 60°C
Instruction Manuals Multi-language quick Guide

Accessories

Release keys 2 pieces
Escutcheon Yes
Installation Sleeve Yes
DC cord (Mitsumi to ISO) 25 cm
Handsfree Microphone with 3 m cable

Specificatii
Instalare 2Din
Conexiuni USB/BT
Afisaj Multicolor
Putere Max. 4 x 50W
Diagonala ecran 7"
Comentarii
Nu sunt comentarii
Scrie un comentariu

Produse similare

-16%
DMX-120BT MEDIA PLAYER 2DIN KENWOOD DE 6.8″ CU USB/BLUETOOTH
Cod pachet DMX-120BT
In stoc!

DMX-120BT MEDIA PLAYER 2DIN KENWOOD DE 6.8″ CU USB/BLUETOOTH
Preț vechi 1.368,99 Lei (-16%)
Preț 1.149,00 Lei
Preț vechi 1.368,99 Lei (-16%)
In stoc!
-8%
DMX-5020BTS 2DIN KENWOOD DE 6.8″ CU USB/BLUETOOTH/CONTROL SMARTPHONE
Cod pachet DMX-5020BTS
In stoc!

DMX-5020BTS 2DIN KENWOOD DE 6.8″ CU USB/BLUETOOTH/CONTROL SMARTPHONE
Preț vechi 1.809,00 Lei (-8%)
Preț 1.659,03 Lei
Preț vechi 1.809,00 Lei (-8%)
In stoc!
DMX-5023DABS 2DIN KENWOOD DE 6.8″ CU USB/BLUETOOTH/DAB+/CONTROL SMARTPHONE
Cod pachet DMX-5023DABS
In stoc!

DMX-5023DABS 2DIN KENWOOD DE 6.8″ CU USB/BLUETOOTH/DAB+/CONTROL SMARTPHONE
Preț 2.235,96 Lei
In stoc!
ILX-F905D SISTEM MULTIMEDIA ALPINE DE 9″, COMPATIBIL APPLE CARPLAY SI ANDROID AUTO
Cod pachet ILX-F905D
In stoc!

ILX-F905D SISTEM MULTIMEDIA ALPINE DE 9″, COMPATIBIL APPLE CARPLAY SI ANDROID AUTO
Preț 4.320,41 Lei
In stoc!
iLX-W690D SISTEM MULTIMEDIA ALPINE DE 7″, COMPATIBIL APPLE CARPLAY SI ANDROID AUTO
Cod pachet ILX-W690D
In stoc!

iLX-W690D SISTEM MULTIMEDIA ALPINE DE 7″, COMPATIBIL APPLE CARPLAY SI ANDROID AUTO
Preț 2.398,64 Lei
In stoc!
iLX-W650BT SISTEM MULTIMEDIA ALPINE DE 7″, COMPATIBIL APPLE CARPLAY SI ANDROID AUTO
Cod pachet ILX-W650BT
In stoc!

iLX-W650BT SISTEM MULTIMEDIA ALPINE DE 7″, COMPATIBIL APPLE CARPLAY SI ANDROID AUTO
Preț 2.032,59 Lei
In stoc!
ILX-F115D SISTEM MULTIMEDIA ALPINE DE 11″, COMPATIBIL APPLE CARPLAY SI ANDROID AUTO
Cod pachet ILX-F115D
In stoc!

ILX-F115D SISTEM MULTIMEDIA ALPINE DE 11″, COMPATIBIL APPLE CARPLAY SI ANDROID AUTO
Preț 5.083,02 Lei
In stoc!
iLX-705D SISTEM MULTIMEDIA ALPINE DE 7″, COMPATIBIL APPLE CARPLAY SI ANDROID AUTO
Cod pachet iLX-705D
In stoc!

iLX-705D SISTEM MULTIMEDIA ALPINE DE 7″, COMPATIBIL APPLE CARPLAY SI ANDROID AUTO
Preț 3.232,43 Lei
In stoc!


Contact
Adresa: Str. Drumul Sării, Nr. 98, sector 6, București
Telefon: 0744.496.176 / 021 411 00 50 / int.104
Email: magazin@alarmservice.ro, marius@alarmservice.ro, office@alarmservice.ro
Linkuri utile:
Promotii
Blog
Sitemap
Termeni si conditii


Info-center
Contact
Cum cumpar
Confidentialitate
Cookies
Politica de retur
înregistrează-te

Înscrieți-vă la newsletter-ul nostru.

powered by teamshare
© Copyright 2026 Alarm Service
designed by headstart.ro
Powered by Teamshare ®
