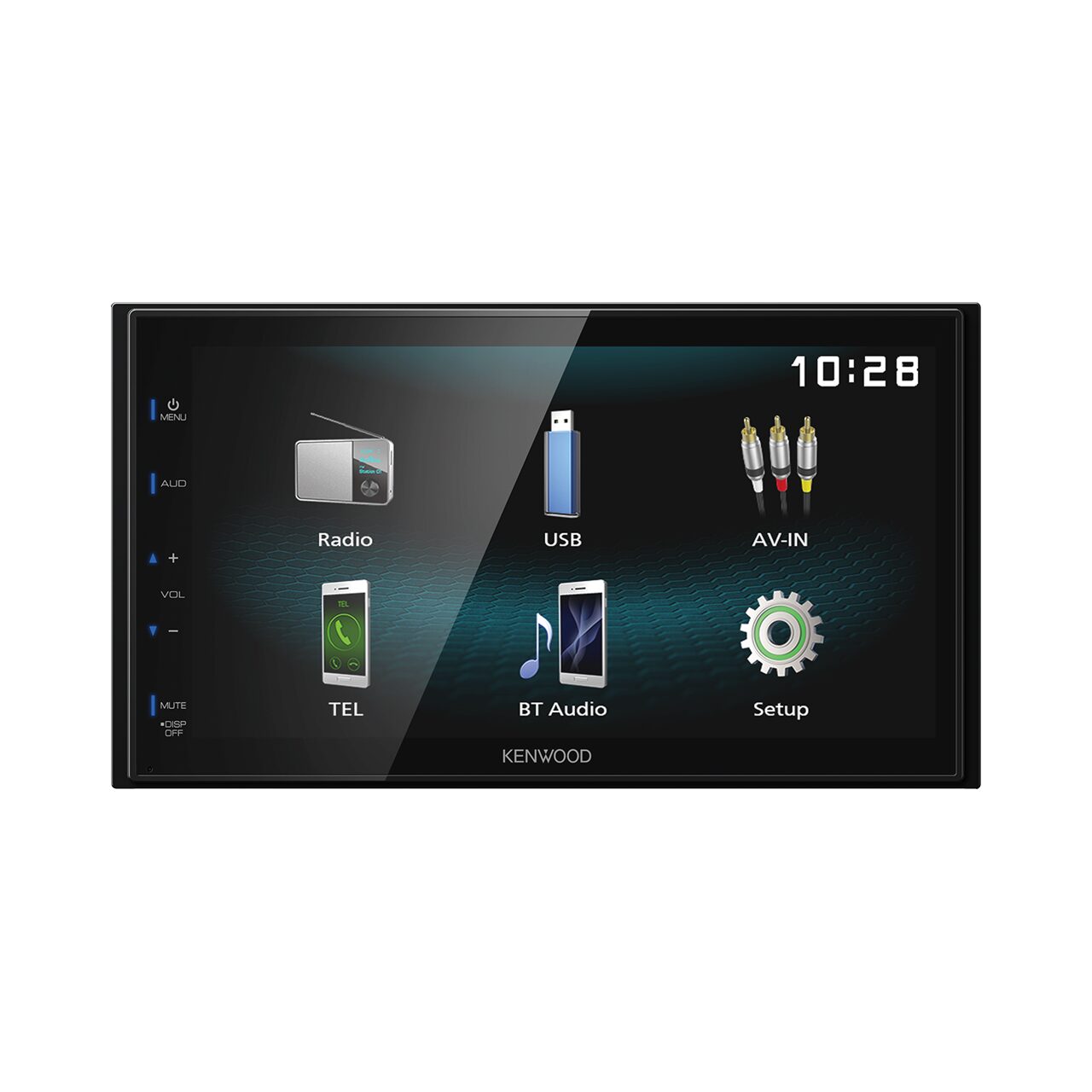

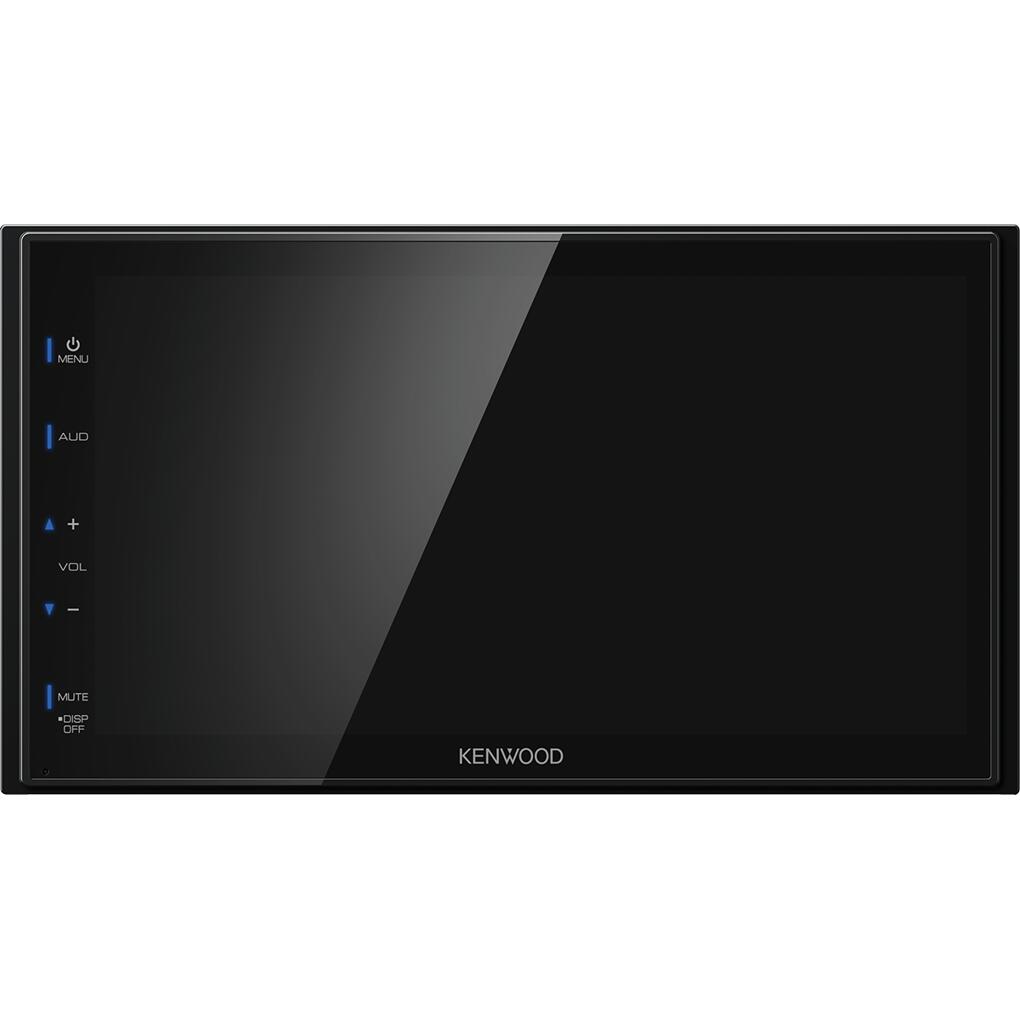

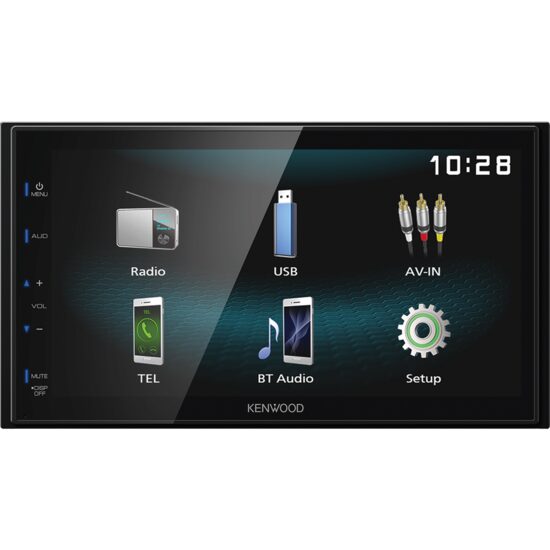

DMX-120BT MEDIA PLAYER 2DIN KENWOOD DE 6.8″ CU USB/BLUETOOTH
Detalii produs
Media Player digital cu USB/Bluetooth si ecran de 6.8″
Pret vechi:
1.368,99Lei
Preț
1.149,00Lei
Service autorizatpentru instalari profesionale
Media Player digital cu USB/Bluetooth si ecran de 6.8″
- Fara mecanism

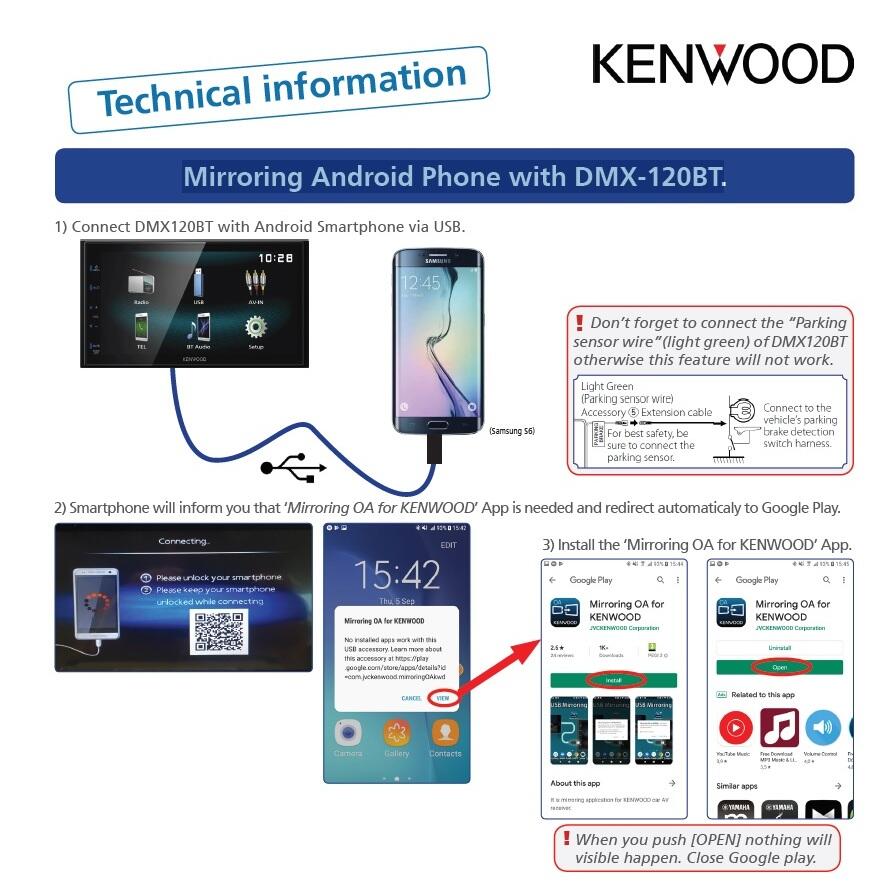

- Mirroring cu Android
- Ecran tactil de 6.8″ WVGA
- Iluminare taste: albastru
- Finisaj lucios
- Corp scurt, adâncime instalare de 75 mm
- USB pe spate
- Redare fisiere audio MP3, WMA, AAC, WAV & FLAC
- Redare fisiere video MPEG1/2 & MPEG4, H.264, WMV & MKV
- Bluetooth incorporat si streaming audio
- Egalizator 7 benzi
- Putere maxima: 4 x 50W
- 3 Pre-amplificari
Caracteristici tehnice:
| Clear resistive 6.8″ WVGA touch screen |
| Android USB mirorring ready |
| 7 band equalizer |
| 3 preouts, (2.0V) (Front/Rear/Sub(mono)) |
| AV-in, Video-out & RCAM-in |
| Bluetooth handsfree & audiostreaming built-in |
| Rear USB, 1A Charge |
| MP3, WMA, AAC, WAV & FLAC audio file playback |
| MPEG1/2 & MPEG4, H.264, WMV & MKV video file playback |
| Shortbody, only 75mm installation depth |
| DIN Size |
2 DIN |
| Smooth GUI |
Yes |
| Key Illumination |
Blue LED |
| Touch sensor |
Yes |
| Touch Sensor Tone |
Yes |
| Optional IR remote controller |
Yes, KNA-RCDV331 |
| Digital Clock (24H) |
Yes |
| ISO connector |
Yes |
| Bluetooth unit built-in |
Yes |
| Screen Type |
6.8″ Wide VGA |
| High Resolution VGA Display |
Yes |
| LCD type |
6,8 inch Wide VGA |
| LCD backlight |
LED |
| Display Mode |
1 Mode: Full |
| Touch Panel |
Clear resistive |
| Display Type |
Glare |
| NTSC/PAL judge |
Yes (Auto) |
| OSDC Type |
Graphic |
| Opening Screen Type |
standard |
| R-CAM interrupt |
Yes |
| Menu text in selectable language |
English(Default), Espagñol, Français, Deutch, Italiano, Nederlands, Finnish, Russian, Português, Polski, Cestina, Magyar. |
| Station Select |
Auto / Manual |
| FM Reception |
Yes |
| AM Reception |
Yes, (MW Reception) |
| Tuner Presets (FM/AM) |
30 Presets (18FM / 12AM) |
| Up/Down Seek/Scan |
Yes |
| Automatic Memory Entry (AME) |
Yes |
| Radio Data System |
Yes |
| Traffic Information |
Yes |
| Local search |
Yes |
| Auto TP search |
Yes |
| Enhanced Other Networks Function (EON) |
Yes |
| Program Type Function (PTY) |
Yes |
Bluetooth General Features
| Hands Free Profile (HPF) |
V1.6 |
| Advanced Audio Distribution Profile (A2DP) |
Yes, (SBC) |
| Phonebook Access Profile (PBAP) |
Yes |
| Voice Control |
Yes |
| High-quality noise canceling microphone |
included |
| AAC (*.m4a) files are playable |
USB |
| AAC (*.aac) files are playable |
USB |
| MP3 files are playable |
USB |
| WMA (.wma) files are playable |
USB |
| WAV (.wav) files are playable |
USB |
| FLAC files are playable |
USB |
| MPEG1/2 files are playable |
USB |
| MPEG4 files are playable |
USB |
| WMV files are playable |
USB |
| H.264 files are playable |
USB |
| mkv files are playable |
USB |
| JPEG files are playable |
USB |
| Rear USB Terminal |
Yes |
| USB Type |
2.0 Full speed |
| MP3 playback with ID3 Tag Display |
Yes |
| WMA (Windows Media File) playback |
Yes |
| AAC (Advanced Audio Codec) playback |
Yes |
| MPEG1 Video decoder |
Yes |
| MPEG2 Video Decoder |
Yes |
| MPEG4 Video Decoder |
Yes |
| Repeat/Scan/Random search |
Yes |
| Repeat / Random Play |
Yes |
| 1A Charge Capability for Smartphone. |
Yes |
| Max. Output Power |
4 x 45W |
| Max. Output Power (MOSFET Power IC) |
4 x 21W |
| Pre-out |
3RCA: Front/Rear/Subwoofer |
| Pre-out Output Level |
2V |
| Low Pass Filter (LPF) |
Yes |
| Subwoofer Reference Level Adj. |
Yes |
| Balance/Fader Control |
Yes |
| Loudness Control |
Yes |
| Equalizer |
Yes, 7-bands |
| Beep On/Off |
Yes |
| Audio Video Output |
Yes |
| Audio/Video Input |
Yes |
| Video-In for Rear-view Camera |
1 dedicated video input (RCA) |
| USB interface |
|
| OEM Wired Remote Control ready |
Yes |
| Parking sensor (handbrake) wire |
Yes |
| 2-way (Tel/Navi) mute wire |
Yes |
| AV-Input (Non Switchable) |
(RCA) |
| AV Output |
Video only (RCA) |
| Reverse sensor wire |
Yes |
| Rear View Camera Input |
|
| FM Antenna Input |
|
| External microphone input |
|
| FM range: 87.5Mhz – 108MHz (50Khz step) |
Yes |
| FM Usable Sensitivity |
12.2μV/75ohm (S/N 26dBf) |
| FM Quieting Sensitivity |
19.2μV/75ohm (S/N 26dBf) |
| FM Frequency Response |
30Hz ~ 14kHz (± 3dB) |
| FM Signal to noise ratio (Mono) |
55dB |
| FM Selectivity(DIN) |
over 70dB (±400kHz) |
| MW range: 531kHz – 1611kHz (9kHz step) |
Yes |
| Technology |
bluetooth V2.1+EDR |
| Frequency |
2.402 – 2.48 GHz |
| Output power |
+4dBm(max), 0dBm (AVE) power class 2 |
| Maximum range |
Line of sight approx. 10 meter |
| Handsfree profile (HFP) |
Yes, V1.6 |
| Advanced audio distribution profile (A2DP) |
Yes, V1.2 |
| Audio Codec |
SBC |
| Audio/Video remote control profile (AVRCP) |
Yes, V1.3 |
| Phonebook access profile (PBAP) |
Yes, V1.1.1 |
| USB Version compatibility |
2.0 Full Speed |
| File System |
FAT 16/32 |
| Maximum Supply current |
1000mA |
| D/A Converter |
24bit |
| MPEG1 Decoder |
MPEG-1 with MPEG Audio Layer 2 |
| MPEG2 Decoder |
MPEG-2 with MPEG Audio Layer 2 |
| MPEG4 Decoder |
yes |
| MP3 Decode |
Compliant with MPEG-1/2 Audio Layer-3 |
| WMA Decode |
Compliant with Windows Media Audio |
| AAC Decode |
„m4a” & „aac” file encoded by AAC-LC format |
| S/N Ratio |
99 dB (1kHz) |
| Dynamic Range |
99dB |
| Maximum Power |
50W x 4 |
| Output Power (DIN45324,+B=14.4v) |
21W x 4 |
| Preout Level |
2000mV / 10kOhm, |
| Preout Impedance |
≤ 600Ohm |
| Speaker Impedance |
4Ohm ~ 8Ohm |
| Graphical Equalizer |
7-Band |
| G. EQ. Frequency (Hz) |
62,5Hz – 16kHz |
| G. EQ. Gain (dB) |
-7 / … / +7 |
| Low Pass Filter Frequency (Hz) |
80 / 120 / 160 / Off |
| Color System of External Video Input |
NTSC/PAL |
| External Video Input Level (RCA) |
1 Vpp / 75 Ohm |
| External Audio Max. Input Level (RCA) |
1.8 V / 10 kOhm |
| Screen size (Diagonal) |
6.75 Inches Wide |
| Screen Size (WxH) |
151.8 x 79.7mm |
| Display system |
Transparent TN LCD Panel |
| Drive system |
TFT Active Matrix System |
| Number of Pixels |
1152000pixels (800(H) x 480(V) x RGB) |
| Effective pixels |
99.99% |
| Pixel arrangement |
RGB Striped |
| Back lighting |
LED (Light Emitting Diode) |
| Operating voltage |
14.4V (10.5 ~ 16V Allowable) |
| Maximum Current Consumption |
10A |
| Dimensions (WxHxD) |
182 x 112 x 74.5mm |
| Weight |
900 gr. |
| Operation Temperature Range |
-10°C ~ 60°C |
| Release keys |
2 pieces |
| Escutcheon |
Yes |
| Installation Sleeve |
Yes |
| Handsfree Microphone |
with 3 m cable |
| Instalare |
2Din
|
| Conexiuni |
USB/BT
|
| Afisaj |
Multicolor
|
| Putere Max. |
4 x 50W
|
| Diagonala ecran |
6.8"
|
