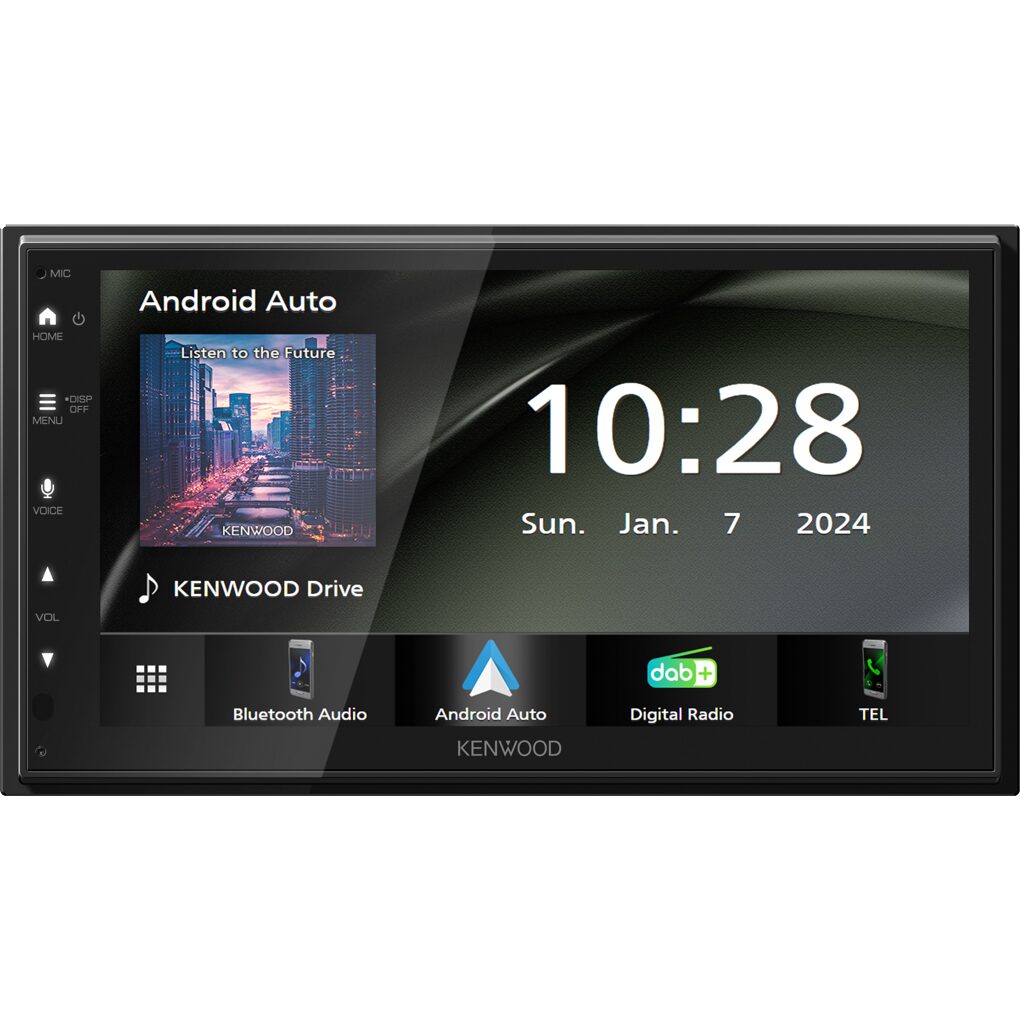

DMX-5023DABS 2DIN KENWOOD DE 6.8″ CU USB/BLUETOOTH/DAB+/CONTROL SMARTPHONE

Cod pachet : DMX-5023DABS
Adauga in Wishlist
compara...
Detalii produs

Unitate Multimedia AV 2DIN cu ecran de 6,8 “, control CarPlay®/Android Auto™ prin cablu și Mirroring cu Android prin USB, conectivitate Bluetooth si radio digital DAB+.

Preț 2.235,96Lei
In stoc!
0 (0 recenzii)
Pret cu TVA
Cantitate
Livrare rapida
Service autorizatpentru instalari profesionale
Detalii suplimentare
Manual
Descriere produs

Unitate Multimedia AV 2DIN cu ecran de 6,8 “, control CarPlay®/Android Auto™ prin cablu și Mirroring cu Android prin USB, conectivitate Bluetooth si radio digital DAB+

  • Fara mecanism
  • Corp scurt pentru instalare ușoară
  • Ecran tactil capacitiv WSVGA de 6,8 “- Iluminare taste pe alb
  • Compatibil Apple CarPlay® prin cablu
  • Compatibil Android Auto™ prin cablu
  • Mirroring prin USB pe Android / iPhone
  • Tuner DAB+ și modul Bluetooth încorporat
  • Port USB pe spate / cablu 1m / fix
  • Navigare muzică wireless prin Bluetooth
  • Redare Audio: Direct Stream Digital (DSD) High Definition
  • 2 Pre-amplificari + subwoofer (2.0V)
  • Intrare cameră spate cu linii de ghidare la parcare
  • AV-in, Video-out & RCA-in
  • 13-Benzi EQ / DTA incorporat
  • Putere maxima: 4 x 50W

Caracteristici tehnice:

DIN Size 2 DIN
Smooth GUI Yes
Selectable GUI Background Wallpaper Yes
Key Illumination White color
Attenuator with Smooth Volume Return Yes
Touch Sensor Tone Yes
Optional IR remote controller Yes, (KNA-RCDV331)
Digital Clock (24H) Yes
Built-in Bluetooth Yes
DAB Tuner Built-in Yes
Made for iPhone Yes
Works with Apple CarPlay Yes
Works with Android Auto Yes
USB Mirroring for iPhone / Android with MirrorAPP+” app Yes
Firmware upgreadable Yes

Monitor Features

Screen Type 6.8" Wide SVGA
Display Type Glare
Display Panel Capacitive
Display film Anti Fingerprint
High Resolution WSVGA Screen 1024 x 600 pixel
LCD backlight White LED
Display Mode 3 Mode (Normal(default) / 16:9 / 4:3)
Screen Adjustments Brightness / Tint / Color / Contrast
Dimmer function Manual/Sync
Dimmer Level Auto/On/Off
Visual Source Mode Mirorring / CarPlay / Android Auto.
Mechanism type Fixed
NTSC/PAL judge Yes (Auto)
Display Off Mode Yes

Multimedia GUI Features

OSDC Type Graphic
Menu text 14 languages:► English(UK)(Default)► English(US)► Spanish► French► German► Italian► Dutch► Portuguese► Arabic► Hebrew► Greek► Polish► Czech► Hungarian
Demonstration Mode Yes
Top Menu Customize Yes
Opening Screen Type standard
Wallpaper customizable 6 x presets + 2 x user set
R-CAM interrupt Yes
R-CAM Parking Guide Lines Yes, Built-in, customizable

Tuner Features

FM Reception Yes
AM (MW/LW) Reception Yes
Tuning mode Auto1/Auto2/Manual
Up/Down Seek/Scan Yes
Tuner Presets (FM/AM) 36 Presets (24FM / 12AM)
Automatic Memory Entry (AME) Yes
Radio Data System Yes
Radio Text Plus Yes
Traffic Information Yes
Local search Yes
AF Regional Selectable: AF/AF Reg/OFF
Enhanced Other Networks Function (EON) Yes
Program Type Function (PTY) Yes

CE DAB tuner features

DAB+ tuner built-in Yes
Digital Radio Certification Mark Yes
Intelligent seek Yes
Tuning mode / Seek mode Auto1/Auto2/Manual
Service preset 15 ch * 1 bank presets,
Service list by alphabet order Yes
Alphabet Search Yes
DAB-DAB/DAB-FM auto switch Yes
Seamless DAB-FM blending Yes
DLS (Dynamic Label) Yes
PTY (Programme Type) search Yes
Announcement Switching (ASW) Select Yes
Slide Show Yes
Soft linking Yes
Antenna power supply on/off switch Yes

Bluetooth General Features

Hands Free Profile (HPF) Ver. 1.8
Audio Streaming (A2DP) Yes, (SBC/AAC)
Simple Secure Pairing (SSP) Yes
Phonebook Access Profile (PBAP) Yes
PBAP call history Up to 20 entries of dialed, received and missed calls
Audio/Video Remote Control Profile (AVRCP) Yes, V1.6
iPhone & Android automatic pairing via USB Yes
Private mode Yes
Interrupt call request Yes
Voice Control Yes
Noise Canceller Yes
Echo Canceller Yes
High-quality noise canceling microphone built-in
Bluetooth firmware upgradeable Yes, Included in system updates

CE_Playable Video file

MPEG1/2 files are playable USB
MPEG4 files are playable USB
WMV files are playable USB
H.264 files are playable USB
mkv files are playable USB

USB Features

USB terminal Yes, rear side / 1m cable / fix
USB Type 2.0 High speed
Yes
Drive Change Yes
File System FAT16 / FAT32 / exFAT / NTFS
Tag Information Display Yes
Album Art Display Yes
Repeat Play Folder/File/All
Random play Folder
Category search Yes
Link Search Yes
Last Position Memory / Resume Yes
Time code display Yes
USB ports maximum output current 2.1A

iPhone Features

Connection via: USB / Bluetooth
Plug & Play Yes
Made for iPhone Yes
Tag Information Display Yes
Time Code Display Yes
List Access Yes
Album art support Yes
Random Play Yes
Repeat Play Yes
Skip Yes
iAP over Bluetooth Yes
Works with Apple CarPlay via USB

Android Phone Control

Connection via USB / Bluetooth
Works with Android Auto Via USB
Android Open Accessory Protocol Yes (For Android Auto)

Audio features

Max. Output Power 4 x 50W
Primary Power Output 4 x 22W
Pre-out 2 RCA : FRONT/REAR + SUB(mono)
Pre-out Output Level 2.5V
Volume Offset Yes
Volume Type DSP
Built-in Amplifier Off Yes
Balance/Fader Control Yes
Beep On/Off Yes

Multimedia DSP Features

Position Preset 4 Presets
Graphic Equalizer 13 bands
G-EQ manual setting Yes
G-EQ adjustable level Yes, +9db / -9dB
Time Alignment 0 ~ 610cm
HPF Cut Off Frequency 14 steps
HPF Cut Slope Level 4 steps
Low Pass Filter (LPF) Yes (Non-Fading)
LPF Cut Off Frequency 14 steps
LPF Cut Slope Level 4 steps
X'over Yes
Speaker Size Control Yes
Channel Level Control Yes
Loudness Yes
Tweeter volume Yes
Bass Boost Yes
Source Volulme Offset source independent

Connectivity

DC-Cord 22pin (New Type) to ISO
Reverse sensor wire Yes
Parking sensor (handbrake) wire Yes
Power Control (P.CON) wire Yes
Dimmer control wire Yes
Preout 2 x RCA (Front/rear) + Sub (mono)
AV-Input (Non Switchable) (Mini-jack) audio & video
Video Out RCA x1 (Source: USB)
Rear View Camera Input Dedicated RCA Video-in
GPS Aerial Input GPS antenna included
FM Antenna Input JASO connector
DAB Aerial input SMB
External microphone input 3,5mm mini-jack
OEM Wired Remote Control ready Yes, Optional interface needed
Learning Steering Remote Function Yes

Tuner Specifications

FM range: 87.5Mhz - 108MHz (50Khz step) Yes
FM Usable Sensitivity 1.8μV/75ohm (S/N 30dBf)
FM Frequency Response 30Hz ~ 14kHz (± 3dB)
FM Signal to noise ratio (Mono) 50dB
FM Stereo Separation (1kHz) 35dB
MW range: 531kHz - 1611kHz (9kHz step) Yes
MW Usable Sensitivity 99μV

DAB Tuner specifications

Band III - Frequency range 174.928 MHz - 239.2MHz
Mode Band III
Sensitivity - 98dBm
Signal to noise ratio 82dB
Audio format MPEG1 Audio Layer II, MPEG4 HE-AAC V2
Output Voltage 14V (10.5V to 16V allowable)
Maximum Current < 100 mA

Bluetooth specifications

Technology Bluetooth V5.0
Frequency 2.402 - 2.48 GHz
Output power +9 dBm (max), Power Class 1
Maximum range Line of sight approx. 10 meter
Handsfree profile (HFP) Yes, V 1.8
Advanced audio distribution profile (A2DP) Yes, V 1.3
Audio Codec SBC/AAC
Audio/Video remote control profile (AVRCP) Yes, V1.6
Phonebook access profile (PBAP) Yes, V1.2

USB Specifications

USB Version compatibility USB 2.0 High Speed
File System FAT 16/32 / exFAT / NTFS
Maximum Supply current 2100mA
D/A Converter 24bit
Video Decoder MPEG1/2/4, WMV, H.264, mkv
Audio Decoder MP3, WMA, AAC, WAV, FLAC

Audio Specifications

Maximum Power 50 W x 4
Output Power (DIN45324,+B=14.4v) 22 W x 4
Output frequency band 20 Hz ~ 20 kHz
Preout Level 2500 mV / 10 kOhm,
Preout Impedance ≤ 1400 Ohm
Speaker Impedance 4 Ohm ~ 8 Ohm

Video Specifications

Color System of External Video Input NTSC/PAL
External Video Input Level (RCA) 1 Vpp / 75 Ohm
Video Output Level (RCA) 1 Vpp / 75 Ohm

Monitor Specifications

Screen size (Diagonal) 6.8 Inches Wide
Display system Transparent TN LCD Panel
Drive system TFT Active Matrix System
Number of Pixels 1843200pixels (1024(H) x 600(V) x RGB)
Effective pixels 99.99%
Pixel arrangement RGB Striped
Back lighting LED (Light Emitting Diode)

General Specifications

Operating voltage 14.4V (10.5 ~ 16V Allowable)
Dimensions (WxHxD) 178 x 100 x 86mm
Weight 1070 gr.
Weight, inclu. sleeve & escutcheon 1.07 kg

Accessories

Release keys 2 pieces
Escutcheon Yes
Installation Sleeve Yes
DC cord 25 cm
GPS Antenna Ground Plane Mount (Adhesive Metal Pad) Yes
Multi-Language Instruction Manual Included

Specificatii
Instalare 2Din
Conexiuni USB/BT/DAB+
Afisaj Multicolor
Putere Max. 4 x 50W
Diagonala ecran 6.8"
