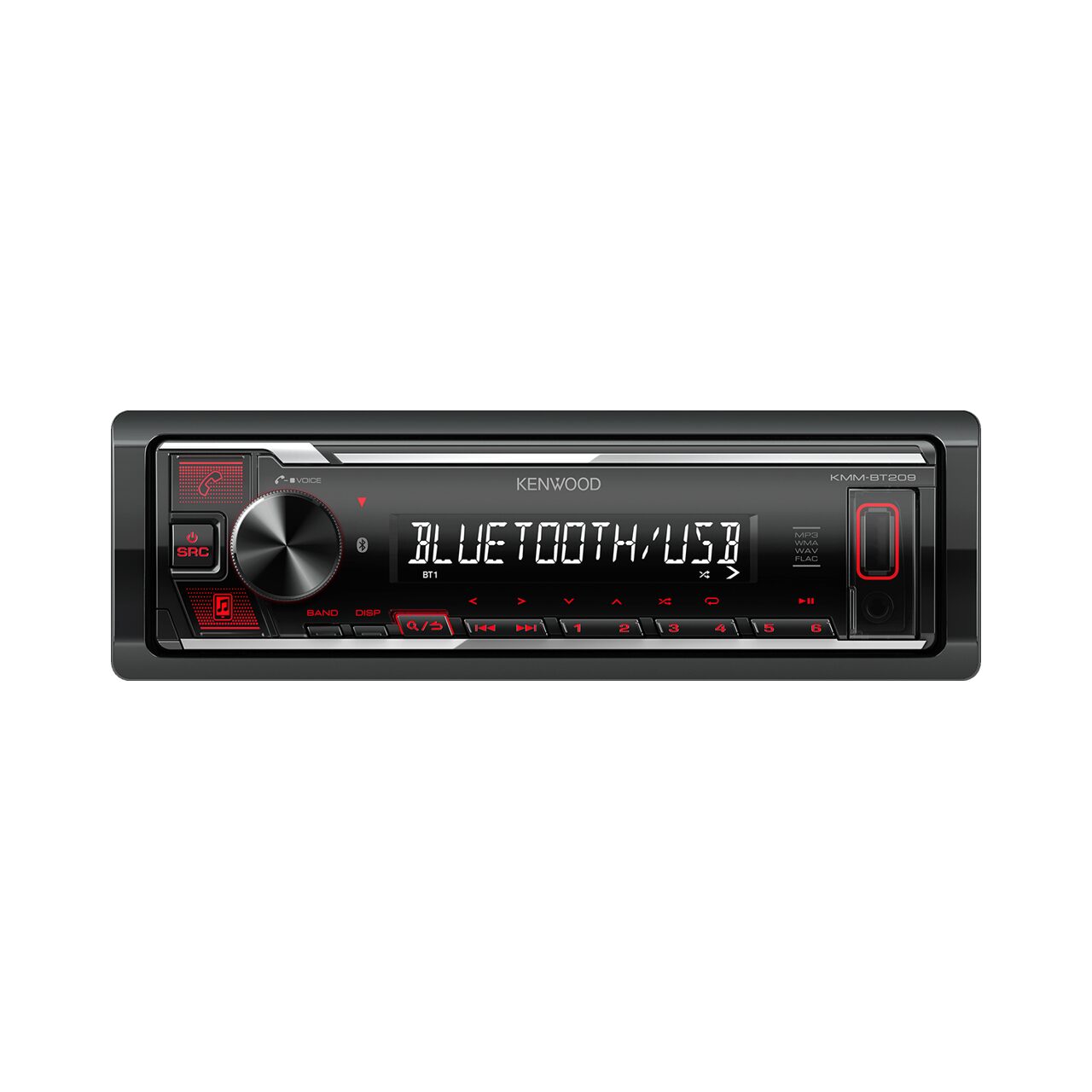

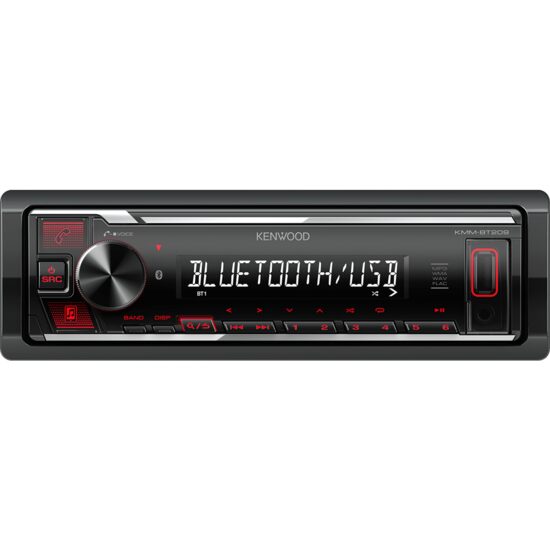

KMM-BT209 RADIO CU USB/BLUETOOTH KENWOOD, ROSU
Detalii produs
Media Receiver digital rosu cu USB/Bluetooth si AUX-in
Service autorizatpentru instalari profesionale
Media Receiver digital rosu cu USB/Bluetooth si AUX-in
- Fara mecanism
- Iluminare butoane pe rosu, afisaj alb
- USB si AUX-in frontal
- Bluetooth incorporat pentru apeluri telefonice hands-free si streaming audio
- Dual Phone Connection – comută automat între 2 telefoane asociate pentru apelurile primite.
- Streaming audio doar comutând între cele 5 dispozitive BT conectate cu Music Mix
- Folosește smartphone-ul ca o telecomandă fără fir cu aplicația KENWOOD Remote
- Digital Sound Processor, Time Alignment & 13-Band EQ pentru îmbunătățiri optime de reglare a sunetului.
- Ieșire RCA spate sau subwoofer (comutabil) pentru a conecta un amplificator de putere.
- Ecran LCD lat cu 1 linie cu contrast ridicat, unghi larg de vizualizare și iluminare fundal cu LED alb.
- Redare fisiere MP3/WMA/AAC/WAV/FLAC
- Meniu in limba engleză (implicit), rusă, spaniolă sau franceză.
- Corp scurt (100 mm) pentru instalare ușoară.
- Putere maxima: 4 x 50W
- 1 Pre-amplificare
Caracteristici tehnice:
| Bluetooth technology for hands-free calls and music streaming. |
| Dual Phone Connection switches automatically between the 2 paired phones for incoming calls. |
| Enjoy audio streaming just by switching among 5 connected BT devices with Music Mix |
| Use your smartphone like a wireless remote control with the KENWOOD Remote app. |
| MP3 / WMA / AAC / WAV / FLAC music file playback. |
| Digital Sound Processor, Time Alignment & 13-Band EQ for optimal sound tuning enhancements. |
| Rear or subwoofer (Switchable) RCA preout to connect a power amplifier. |
| Wide 1 line LCD display with high contrast, wide viewing angle & white LED backlight. |
| Menu language in English(default), Russian, Spanish or French. |
| Short body (100mm) for easy installation |
| Display Type |
Liquid Crystal Display (LCD) |
| Display Layout |
1 line 13 Segments x 13 Digit |
| Vertical Aligment Liquid Crystal Display |
Yes |
| Display Illumination |
White (LED) |
| Dimmer Control |
Manual / Set by Timer |
| Brightness control |
0 - 31 steps |
| Demo Mode |
Yes |
| Menu text in selectable language |
English(default) / Spanish / French / German / Russian |
| Dress plate |
Black Injection |
| Preset key finish |
Black Injection |
| Escutcheon finish |
Piano Black |
| Volume & operation knob or wheel |
Transparant Lighting |
| Triangle Illumination |
Red LED |
| Front terminals dust cover |
Yes |
| Key illumination |
Red LED |
| Illuminated front USB port |
Red LED |
| Brightness Control (Key) |
0 - 31 step |
| Dimmer Control (Key) |
Manual / Set by Timer |
| Chrome-finished accents |
Volume knod & faceplate |
| USB terminal |
Yes, Front with dust cover |
| USB Type |
2.0 High speed |
| MP3, WMA, AAC, WAV, FLAC playback |
Yes |
| Repeat/Scan/Random search |
Yes |
| Repeat / Random Play |
Yes |
| Direct search |
Yes |
| Last Position Memory / Resume |
Yes |
| Time code display |
Yes |
| 1,5A Smartphone Quick Charge |
Yes |
| Maximum Output Power |
50W x 4 |
| MOSFET Power IC |
Yes |
| Auxiliary Type |
Mini-jack, front panel |
| Pre-out |
1 RCA |
| Pre-out Output Level |
2.5V |
| Preout Rear / Subwoofer Switchable |
Yes |
| Subwoofer Reference Level Adj. |
Yes |
| 2-Way X'over network |
Yes |
| 3-Way x'over (bi-amp connection) |
Yes |
| Tone Control / Easy EQ |
13 band, 8 presets |
| Balance/Fader/Loudness Control |
Yes |
| Bass Boost Circuit |
Off/+1/+2/+3/+4/+5 |
| Att.(-20dB) with smooth Volume Return |
Yes |
| Easy 3-band EQ mode |
Yes |
| Graphic Equalizer + Preset |
13-Bands Graphic Equalizer with 8 Presets. |
| Digital Sound Processor (DSP) Built-in |
Yes |
| Digital Time Aligment (DTA) |
Yes |
| Low- & High-pass Filter |
Yes |
| Speaker Size Control |
Yes, Front/rear/subwoofer independently |
| Kenwood Sound Reconstruction |
Yes |
| Sound Reconstruction |
Yes |
| Space Enhancer |
Yes |
| Sound Realizer |
Yes |
| Stage EQ |
Yes |
| Drive EQ |
Yes |
Bluetooth General Features
| FM range: 87.5Mhz - 108MHz (50Khz step) |
Yes |
| FM Usable Sensitivity |
0.56μV/75ohm (S/N 30dBf) |
| FM Quieting Sensitivity |
1.58μV/75ohm (S/N 46dBf) |
| FM Frequency Response |
30Hz ~ 15kHz (± 3dB) |
| FM Signal to noise ratio (Mono) |
68dB |
| FM Stereo Separation (1kHz) |
40dB |
| MW range: 531kHz - 1611kHz (9kHz step) |
Yes |
| MW Usable Sensitivity |
28.5μV |
| LW range: 153kHz - 279kHz (9kHz step) |
Yes |
| LW Usable Sensitivity |
45μV |
| MP3 Format |
MPEG 1/2 Audio Layer 3-Files |
| WMA Format |
in accordance with Windows Media Audio |
| AAC Format |
AAC-LC “.aac”(CD&USB) and ".m4a"(USB) files |
| WAV Format |
RIFF waveform Audio Format (only for LinearPCM) |
| FLAC Format |
FLAC files (up to 96kHz/24bit) |
| USB Version compatibility |
USB 1.1 / 2.0 full speed |
| File System |
FAT 32 / 16 / 12 |
| Maximum Supply current |
1500mA |
| D/A Converter |
24bit |
| MP3 Decode |
Compliant with MPEG-1/2 Audio Layer-3 |
| WMA Decode |
Compliant with Windows Media Audio |
| AAC Decode |
"m4a" & "aac" file encoded by AAC-LC format |
| WAV Decode |
Linear - PCM Files |
| flac Decode |
FLAC files up to 96kHz/24bit |
| Maximum Power |
50 W x 4 |
| Output Power (DIN45324,+B=14.4v) |
22 W x 4 |
| Preout Level |
2500 mV / 10 kOhm, |
| Preout Impedance |
≤ 600 Ohm |
| Speaker Impedance |
4 Ohm ~ 8 Ohm |
| AUX Frequency Response |
20 Hz ~ 20 kHz (±1dB) |
| AUX Maximum Input Voltage |
1000 mV |
| AUX Input Impedance |
30 kOhm |
| Frequency band - Front |
62.5Hz ~ 16kHz |
| Equalizer Gain |
–9db ~ +9db |
| Q Control |
0.25/ 0.50/ 1.00/ 2.00 |
| High Pass Filter frequency |
Through/50 ~ 220 (Hz) |
| High Pass Filter Slope |
-12/-18/-24 dB/Oct |
| Low Pass Filter frequency |
50 ~ 120(Hz)/Through |
| Low Pass Filter Slope |
-12/-18/-24 dB/Oct |
| Time Alignment |
0 — 610cm(2 cm step) |
| Car type control |
► OFF► COMPACT► Full SIZE CAR► WAGON► MINIVAN► SUV► MINIVAN LONG |
| Equalizer Type |
Graphic |
| Frequency band |
13 bands |
| Technology |
Bluetooth V4.2 |
| Frequency |
2.402 - 2.48 GHz |
| Output power |
+4dBm(max), 0dBm (AVE) power class 2 |
| Maximum range |
Line of sight approx. 10 meter |
| Handsfree profile (HFP) |
Yes |
| Serial port profile (SPP) |
Yes |
| Advanced audio distribution profile (A2DP) |
Yes |
| Audio Codec |
SBC/AAC |
| Audio/Video remote control profile (AVRCP) |
Yes |
| Phonebook access profile (PBAP) |
Yes |
| Release keys |
2 pieces |
| Escutcheon |
Yes |
| Installation Sleeve |
Yes |
| DC cord (Mitsumi to ISO) |
15 cm |
| Handsfree Microphone |
with 3 m cable |
| Operating voltage |
14.4V (10.5 ~ 16V Allowable) |
| Maximum Current Consumption |
10A |
| Dark Current Consumption |
Below 1mA |
| Dimensions (WxHxD) |
182 x 53 x 100mm |
| Weight |
600 gr. |
| Operation Temperature Range |
-10°C ~ 60°C |
| Instruction Manuals |
Multi-language quick Guide |
| Instalare |
1Din
|
| Conexiuni |
USB/BT
|
| Afisaj |
Rosu
|
| Putere Max. |
4 x 50W
|
