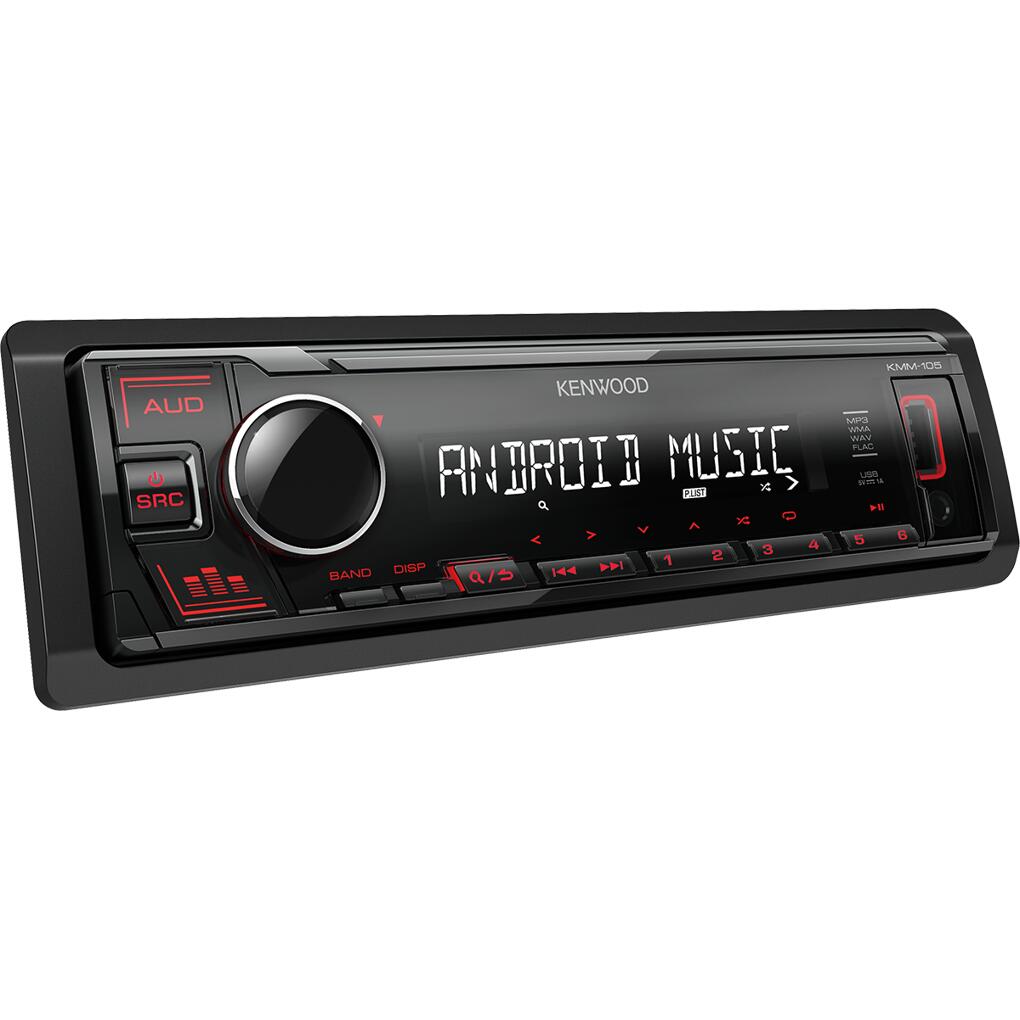

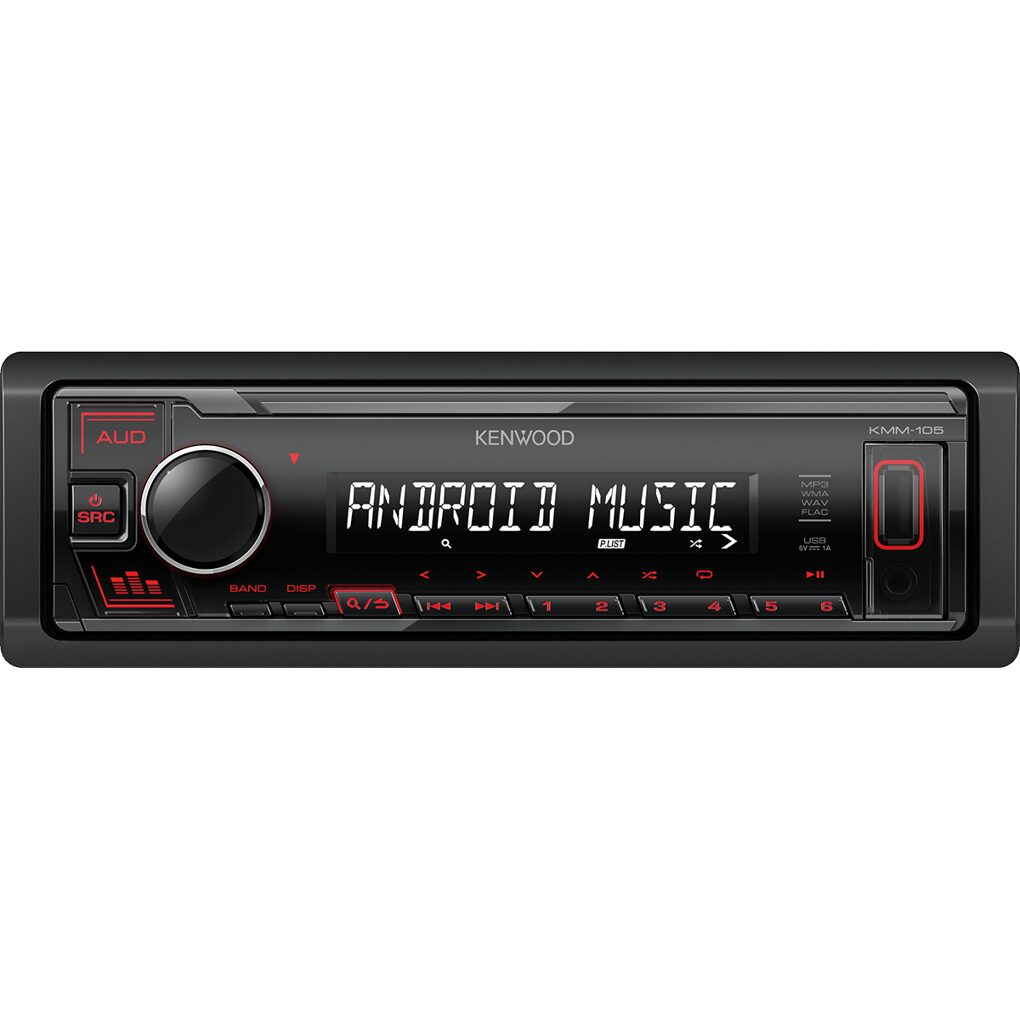

KMM-105RY RADIO CU USB KENWOOD, ROSU
Detalii produs
MEDIA RECEIVER CU USB FRONTAL SI INTRARE AUX, AFISAJ ROSU
Service autorizatpentru instalari profesionale
MEDIA RECEIVER CU USB FRONTAL SI INTRARE AUX, AFISAJ ROSU
- Fara mecanism
- Corp scurt
- Iluminare butoane: rosu
- Iluminare afisaj: alb
- Afișaj LCD, aliniere verticală cu 13 cifre.
- USB si AUX-in frontal
- Redare MP3/WMA/WAV/FLAC
- EQ cu 3 benzi încorporat
- Tuner FM (RDS) / AM (MW/LW) (24 pre-setari)
- Putere maxima: 4 x 50W
- 1 Pre-amplificare
- Panoul frontal detașabil
- Greutate: 600gr.
- Dimensiuni (Lxhxl): 182 x 53 x 100mm
| Short body media receiver |
| 13 Digits vertical alignment LCD display. |
| Red key & white display illumination. |
| Dual Accent Key. |
| FM (RDS) / AM (MW/LW) tuner (24presets). |
| Illuminated front USB with dust cover (1,0A). |
| MP3/WMA/WAV/FLAC playback. |
| 3-band EQ built-in. |
| 1 RCA (rear/sub switchable) preout (2,5V). |
| Display Type |
Liquid Crystal Display (LCD) |
| Display Layout |
13 Segments x 13 Digit |
| Vertical Aligment Liquid Crystal Display |
Yes |
| Display Illumination |
White (LED) |
| Dimmer Control |
Manual / Set by Timer |
| Brightness control |
0 - 31 steps |
| Demo Mode |
Yes |
| Menu text in selectable language |
English(default) / Spanish / French / Russian |
| Dress plate |
Piano Black |
| Preset key finish |
Piano Black |
| Escutcheon finish |
Black Injection |
| Volume & operation knob or wheel |
Piano black with chrome finished ring |
| Triangle Illumination |
Red LED |
| Front terminals dust cover |
Yes |
| Key illumination |
Red LED |
| Illuminated front USB port |
Red LED |
| Brightness Control (Key) |
0 - 31 step |
| Dimmer Control (Key) |
Manual / Set by Timer |
| Brightness zone concept |
2 zone brightness control |
| Maximum Output Power |
50W x 4 |
| MOSFET Power IC |
Yes |
| Auxiliary Type |
Mini-jack, front panel |
| Pre-out |
1 RCA |
| Pre-out Output Level |
2.5V |
| Preout Rear / Subwoofer Switchable |
Yes |
| Subwoofer Reference Level Adj. |
Yes |
| Tone Control / Easy EQ |
3-Band, 8 Presets |
| Balance/Fader/Loudness Control |
Yes |
| Bass Boost Circuit |
Off/+1/+2/+3/+4/+5 |
| Att.(-20dB) with smooth Volume Return |
Yes |
| Parametric Equalizer + Presets |
3-Bands Parametric Equalizer with 8 Presets. |
| Low-pass Filter |
Yes |
| Speaker Size Control |
Yes, Off / 5" or 4" / 6*9" or 6" / OEM |
| Kenwood Sound Reconstruction |
Yes |
| Drive EQ |
Yes |
| FM range: 87.5Mhz - 108MHz (50Khz step) |
Yes |
| FM Usable Sensitivity |
0.71μV/75ohm (S/N 30dBf) |
| FM Quieting Sensitivity |
2μV/75ohm (S/N 46dBf) |
| FM Frequency Response |
30Hz ~ 15kHz (± 3dB) |
| FM Signal to noise ratio (Mono) |
64dB |
| FM Stereo Separation (1kHz) |
40dB |
| MW range: 531kHz - 1611kHz (9kHz step) |
Yes |
| MW Usable Sensitivity |
28.2μV |
| LW range: 153kHz - 279kHz (9kHz step) |
Yes |
| LW Usable Sensitivity |
50μV |
| MP3 Format |
MPEG 1/2 Audio Layer 3-Files |
| WMA Format |
in accordance with Windows Media Audio |
| WAV Format |
RIFF waveform Audio Format (only for LinearPCM) |
| FLAC Format |
FLAC files (up to 96kHz/24bit) |
| USB Version compatibility |
USB 1.1/2.0 full speed |
| File System |
FAT 32/16/12 |
| Maximum Supply current |
1500mA |
| D/A Converter |
24bit |
| MP3 Decode |
Compliant with MPEG-1/2 Audio Layer-3 |
| WMA Decode |
Compliant with Windows Media Audio |
| WAV Decode |
Linear - PCM Files |
| flac Decode |
FLAC files up to 48kHz/16bit |
| Maximum Power |
50 W x 4 |
| Output Power (DIN45324,+B=14.4v) |
22 W x 4 |
| Preout Level |
2500 mV / 10 kOhm, |
| Preout Impedance |
≤ 600 Ohm |
| Speaker Impedance |
4 Ohm ~ 8 Ohm |
| AUX Frequency Response |
20 Hz ~ 20 kHz (±1dB) |
| AUX Maximum Input Voltage |
1000 mV |
| AUX Input Impedance |
30 kOhm |
| Bass Tone Control |
100 Hz ±8 dB |
| Middle Tone Control |
1 kHz ±8 dB |
| Treble Tone Control |
12.5 kHz ±8 dB |
| Low Pass Filter Frequency (Hz) |
Through/85/120/160Hz |
| Subwoofer Level (dB) |
-15 dB to +15dB |
| Operating voltage |
14.4V (10.5 ~ 16V Allowable) |
| Maximum Current Consumption |
10A |
| Dark Current Consumption |
Below 1mA |
| Dimensions (WxHxD) |
182 x 53 x 100mm |
| Weight |
600 gr. |
| Operation Temperature Range |
-10°C ~ 60°C |
| Instruction Manuals |
Multi-language quick Guide |
| Instalare |
1Din
|
| Conexiuni |
USB
|
| Afisaj |
Rosu
|
| Putere Max. |
4 x 50W
|
