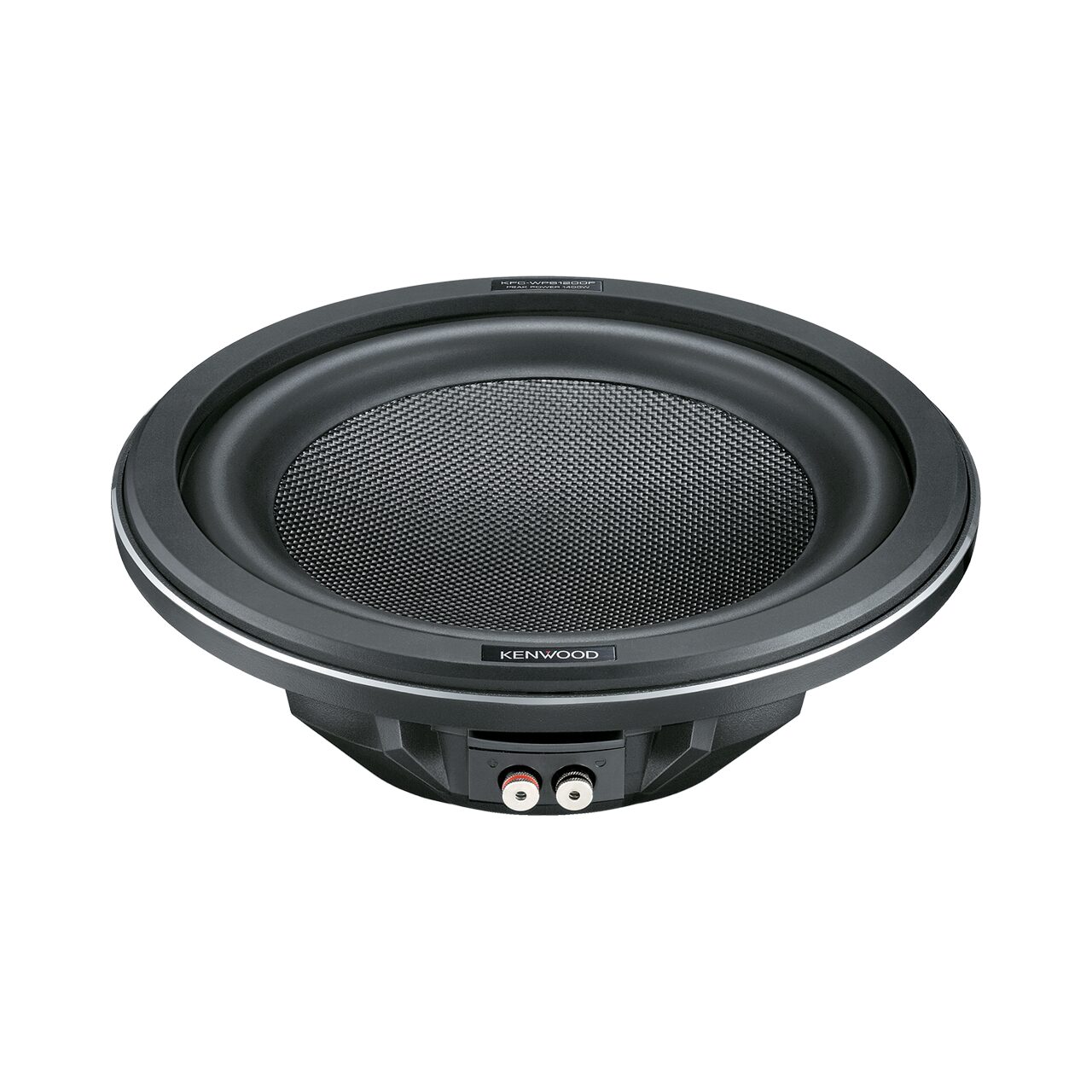

KFC-WPS1200F SUBWOOFER SLIM KENWOOD DE 12" (30CM), 1400W
Detalii produs
SUBWOOFER SLIM DE 30CM (12″), 350W RMS
Service autorizatpentru instalari profesionale
SUBWOOFER SLIM DE 30CM (12″), 350W RMS
- Difuzor de bas de 30cm ( fara incinta )
- Putere maxima: 1400W
- Putere nominala: 350W
- Impedanta: 4Ω
- Sensibilitate: 91dB/W/m
- Raspuns in frecventa: 30Hz ~ 800Hz
- Dimensiuni difuzor ( Lxhxl ): 325 x 325 x 121 mm
- Adancime montaj: 10 cm
- Diametru gaura de montaj Ø: 27.6 cm
- Greutate difuzor 7 kg
- Greutate totala: 8 kg
- Greutate magnet: 1.37 kg
| 300mm Carbon-Glass Fiber Honeycomb Cone Subwoofer |
| Super Linear Spider |
| Smooth Linear Surround |
| Heat transfer structure |
| Shallow Mount |
| Speaker Type |
Subwoofer |
| Peak Input Power |
1400W |
| Rated Input Power |
350W |
| Speaker Size |
300mm |
| Speaker Cone Design |
Carbon-Glass Fiber Honeycomb Cone |
| Magnet Type |
Ferrit |
| Terminals |
Silver-plated Push Type |
| Heat Transfer Motor Circuit |
Yes |
| Magnet Cover |
Aluminum Die-Cast Basket |
| Gasket Installation |
two-sided |
| Installation Capabillity |
Sealed/ Ported |
Speaker/woofer Specifications
| Peak Input Power |
1400W |
| Maximum Input Power |
700W |
| Rated Input Power |
350W |
| Woofer Cone material |
Carbon-Glass Fiber Honeycomb Cone |
| Speaker Basket |
Aluminum Die-Cast |
| Speaker Surround |
Rubber |
| Spider Type |
Super Linear Spider |
| Sensitivity |
91dB/W/m |
| Frequency Response |
30Hz ~ 800Hz |
| Speaker Impedance |
4Ω |

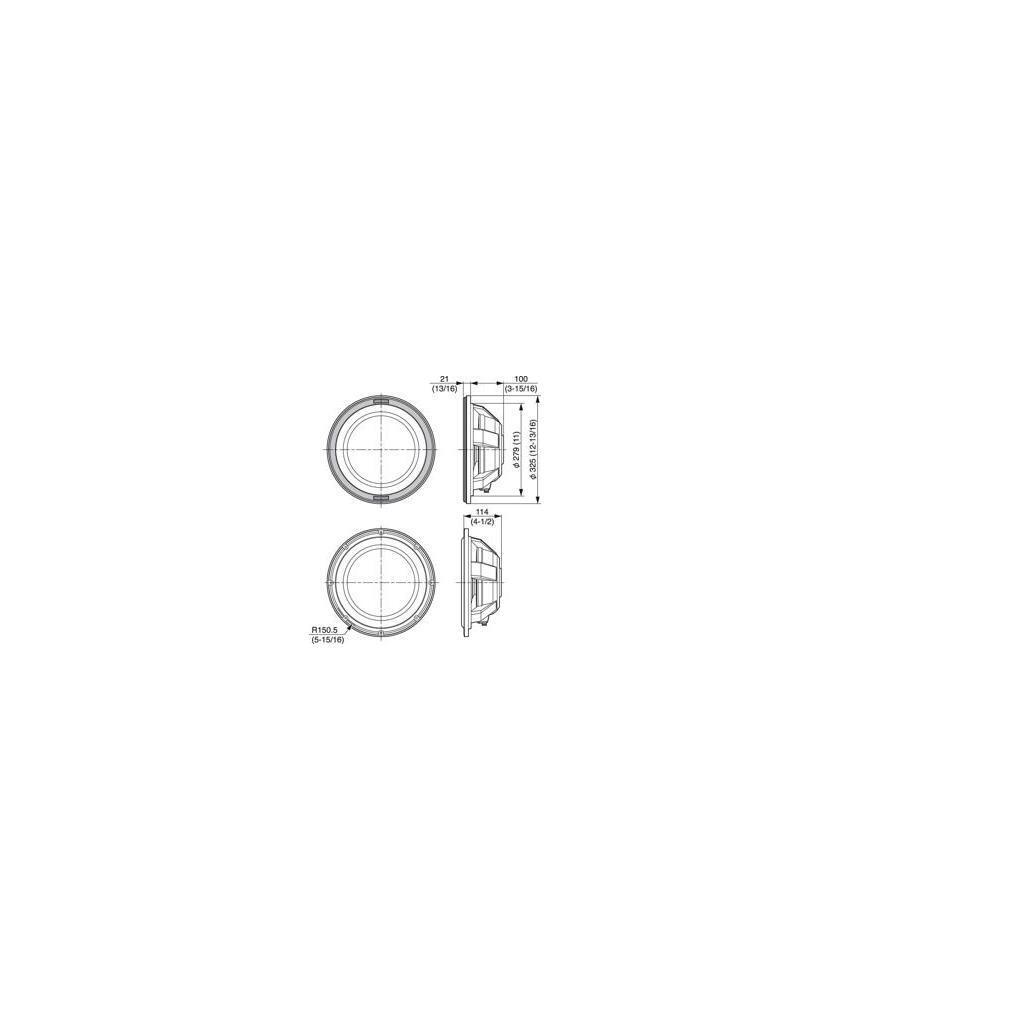

| Dimensions (W x H x D) |
325 x 325 x 121mm |
| Mounting Depth |
100mm |
| Mouting Hole Diameter Ø |
279mm |
| Speaker Weight |
7000gr |
| Gross Weight |
8000gr |
| Weight of Magnet |
1370gr |
| Nominal impedance (Z) |
4Ω |
| DC resistance (Re) |
3.2Ω |
| Resonant frequency (FSO) |
24.8Hz |
| Mechanical Q factor (QMS) |
2.897 |
| Electrical Q factor (QES) |
0.67 |
| Total Q factor (QTS) |
0.544 |
| Voice coil inductance (LBM) |
2.8mH |
| Voice coil diameter (d) |
65mm |
| Force factor (BL) |
12.93T/m |
| Peak excursion Xmax |
8.5mm |
| Moving mass (MMS) |
224gr. |
| Volume accoustic compliance (VAS) |
62.685liter |
| Piston Area (SD) |
0.049m² |
| Displacement |
1740cc |
| Sealed box volume |
22.6liter |
| Sealed Box Dimensions (trapezium shape) |
773 x 362 x 107 x 172mm ( 21mm thick MDF)(WxHxD1xD2) |
| Vented box volume |
22.6liter |
| Vented Box Dimensions (trapezium shape) |
773 x 362 x 107 x 172mm ( 21mm thick MDF)(WxHxD1xD2) |
| Vented box port diameter/length |
Ø 76mm / 102mm |
| Screws (Parker-type) |
Ø 5 x 30mm, 8 pieces |
| Badge |
2 pieces |
| Gasket |
1 piece(s) |
| Cushion |
1 piece(s) |
| Tip |
Pasiv
|
| Constructie |
Fara incinta
|
| Diametru |
30 cm (12")
|
| Impedanta |
4 Ω
|
