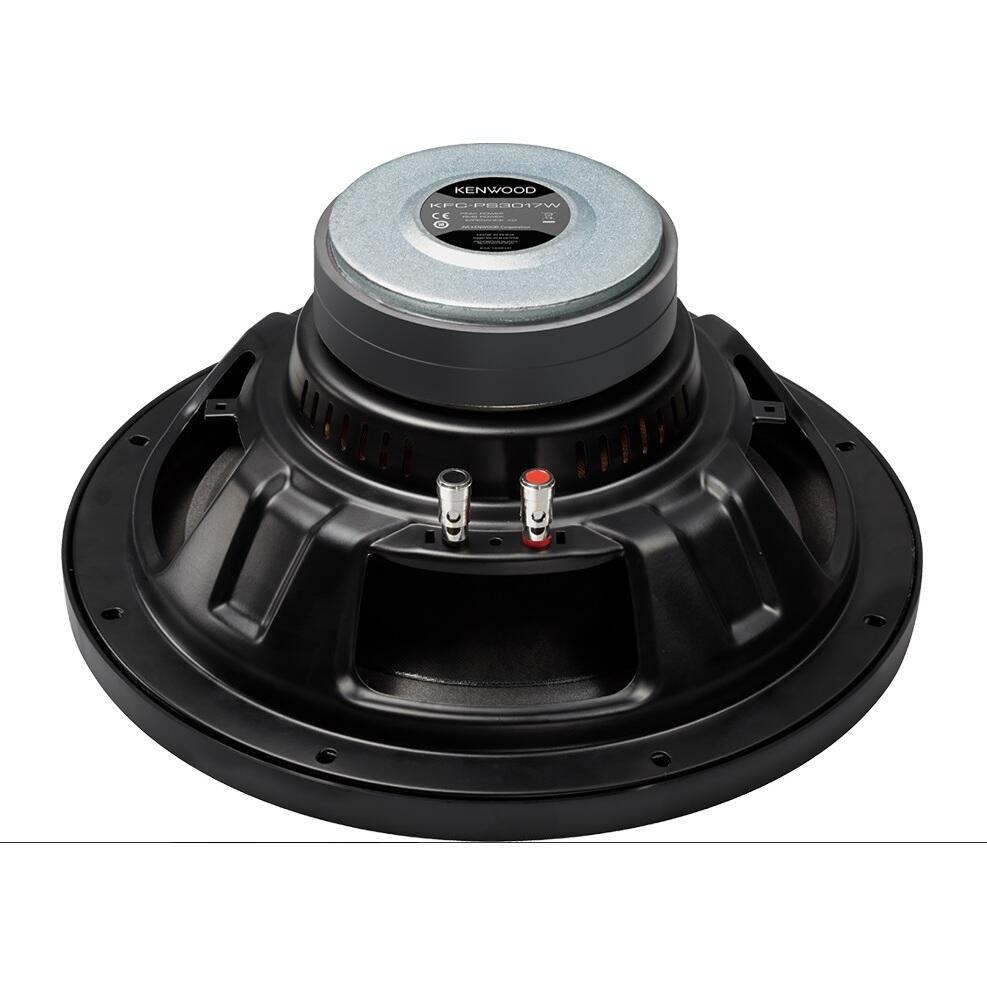

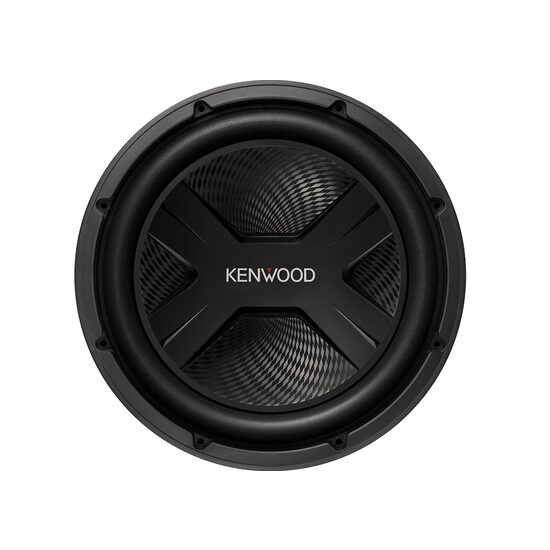

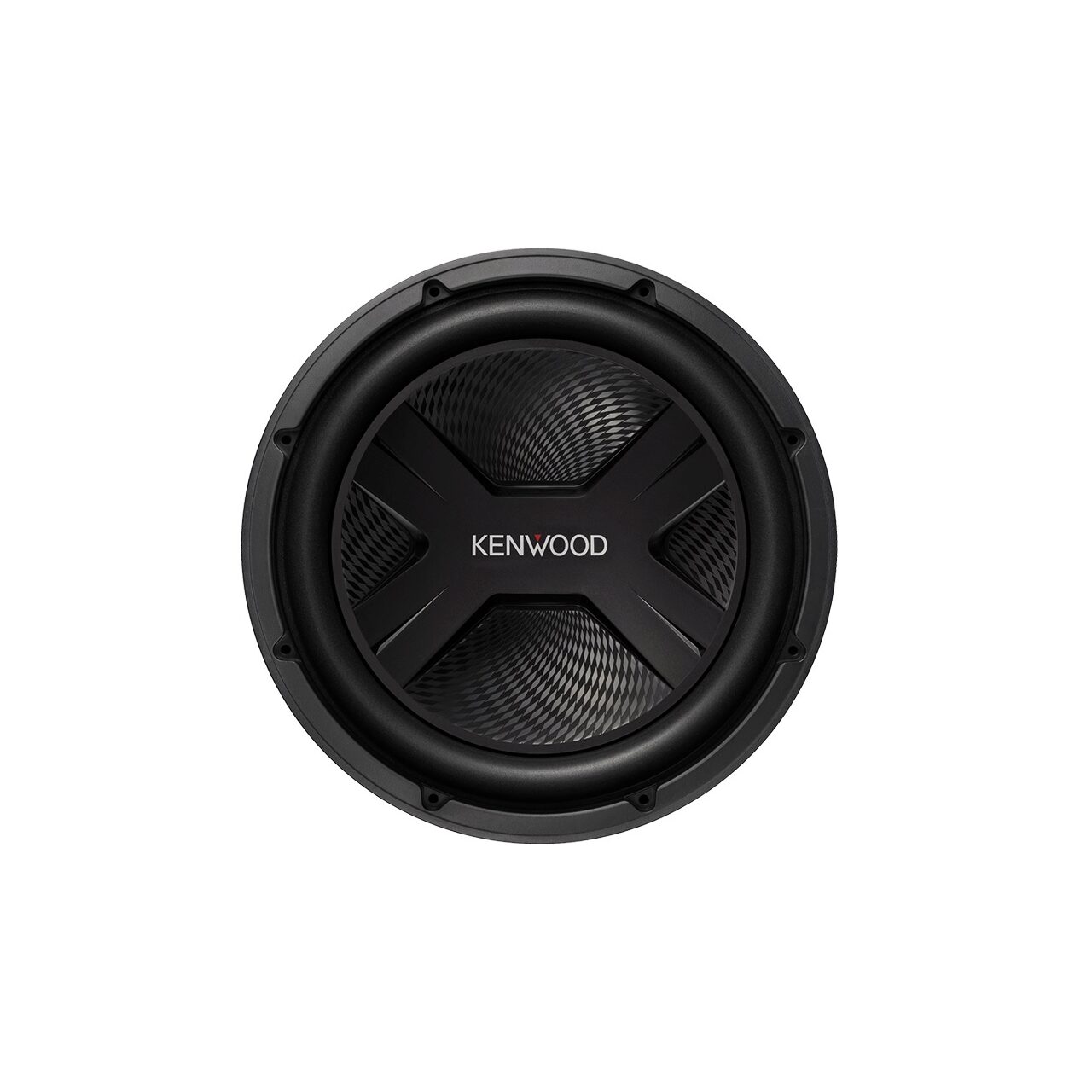

KFC-PS3017W SUBWOOFER KENWOOD DE 12" (30CM), 2000W
Detalii produs
SUBWOOFER DE 30CM (12″), 400W RMS
Service autorizatpentru instalari profesionale
SUBWOOFER DE 30CM (12″), 400W RMS
- Difuzor de bas de 30cm ( fara incinta )
- Putere maxima: 2000W
- Putere nominala: 400W
- Impedanta: 4Ω
Caracteristici tehnice:
- Diametru difuzor: 30 cm
- Putere maxima: 2000W
- Putere nominala: 400W
- Tip Magnet: Ferita
- Material Con difuzor: Con din Polipropilena (PP)
- Grila de otel
- Impedanta: 4Ω
- Sensibilitate: 85dB/W/m
- Raspuns in frecventa: 29Hz ~ 300Hz

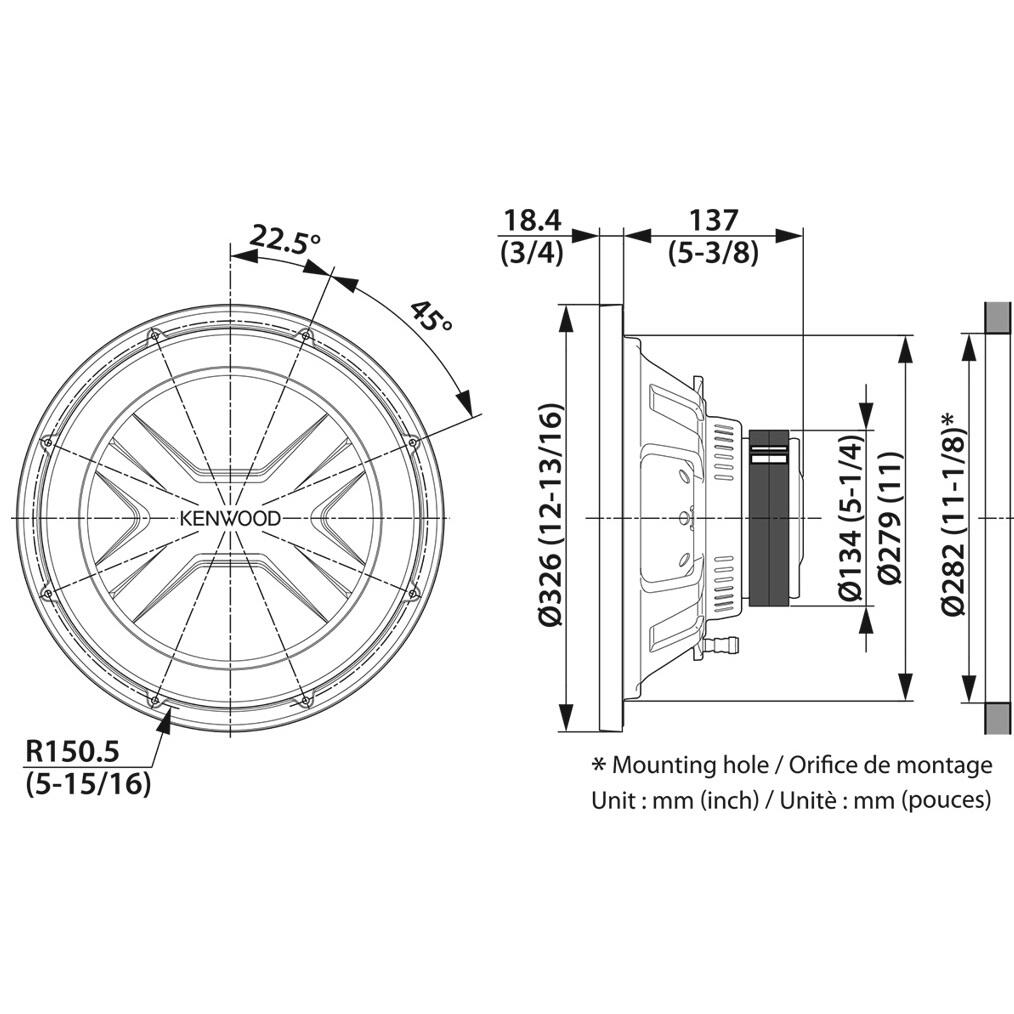

- Dimensiuni difuzor ( Lxhxl ): 326 x 326 x 155.4 mm
- Adancime montaj: 13.7 cm
- Diametru gaura de montaj Ø: 28 cm
- Greutate difuzor 4.2 kg
| Speaker Size |
300mm |
| Oversized Dimension |
Yes |
| Speaker Cone Design |
Diamond-Array pattern |
| Magnet Type |
Ferrit |
| Voice-coil |
single, multi-layer voice coil |
| Terminals |
Push Type |
| Spider |
Stress controlled spider |
| Bottom-Yoke |
Fully closed bottom yoke |
| Heat dissipation technology |
Airflow control |
| Installation Capabillity |
Sealed / Ported |
Speaker/woofer Specifications
| Peak Input Power |
2000W |
| Rated Input Power |
400W |
| Woofer Cone material |
Polypropylene (PP) Cone |
| Center Cap Type |
x-motif cap |
| Speaker Basket |
Steel |
| Speaker Surround |
Foam |
| Spider Type |
Stress controlled Spider |
| Sensitivity |
85dB/W/m |
| Frequency Response |
29Hz ~ 300Hz |
| Speaker Impedance |
4Ω |
| Dimensions (W x H x D) |
326 x 326 x 155.4mm |
| Mounting Depth |
137mm |
| Mouting Hole Diameter Ø |
280mm |
| Speaker Weight |
4200gr |
| Nominal impedance (Z) |
4Ω |
| DC resistance (Re) |
3.7Ω |
| Resonant frequency (FSO) |
24.4Hz |
| Mechanical Q factor (QMS) |
6.79 |
| Electrical Q factor (QES) |
0.52 |
| Total Q factor (QTS) |
0.483 |
| Voice coil inductance (LBM) |
2.04mH |
| Voice coil diameter (d) |
50mm |
| Force factor (BL) |
12.9T/m |
| Peak excursion Xmax |
5.9mm |
| Moving mass (MMS) |
152gr. |
| Volume accoustic compliance (VAS) |
104liter |
| Piston Area (SD) |
0.0512m² |
| Displacement |
1.2cc |

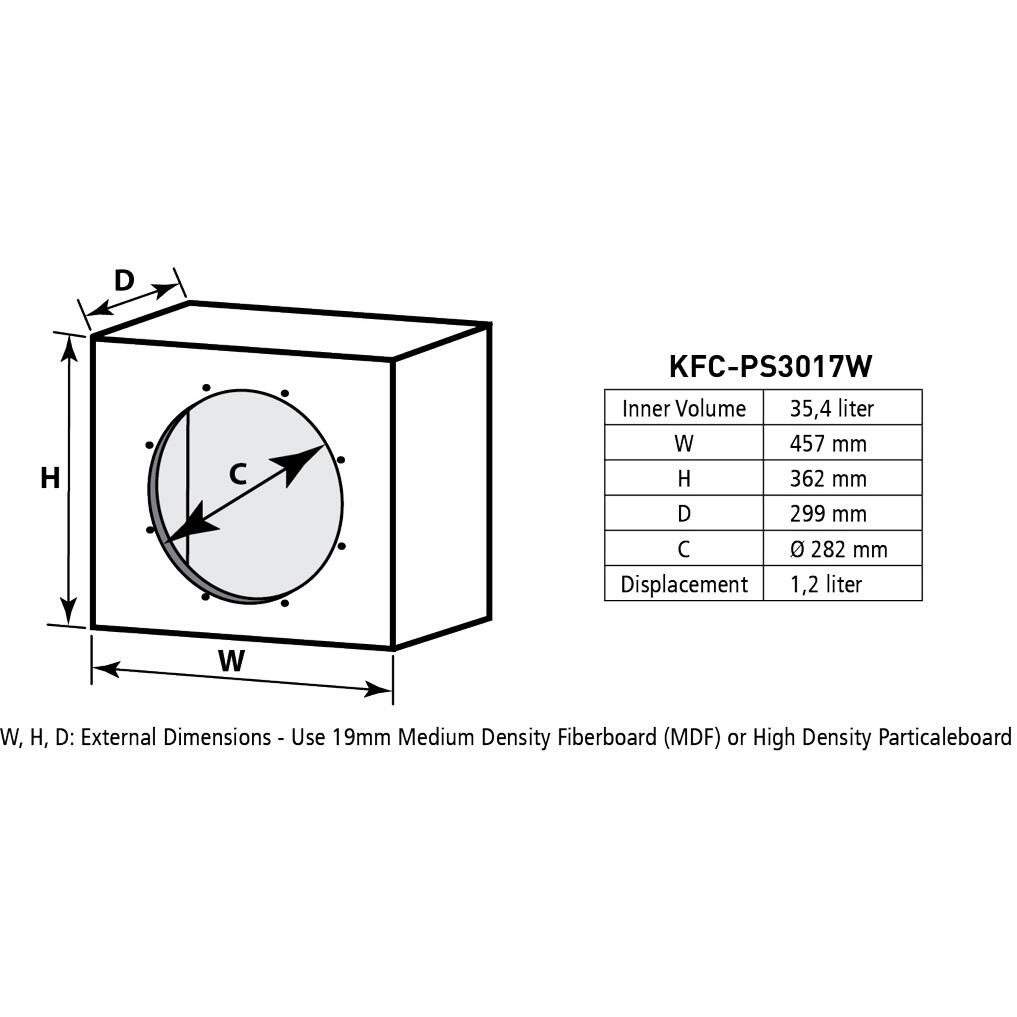

| Sealed box volume |
35.4liter |
| Sealed Box Dimensions |
457 x 362 x 299mm ( 18mm thick MDF)(WxHxD) |
| Vented box volume |
42.5liter |
| Vented Box Dimensions |
590 x 362 x 394mm ( 18mm thick MDF)(WxHxD) |
| Port dimensions (labyrinth) (W x H x L) |
35 x 324 x 736mm |
| Tip |
Pasiv
|
| Constructie |
Fara incinta
|
| Diametru |
30 cm (12")
|
| Impedanta |
4 Ω
|
