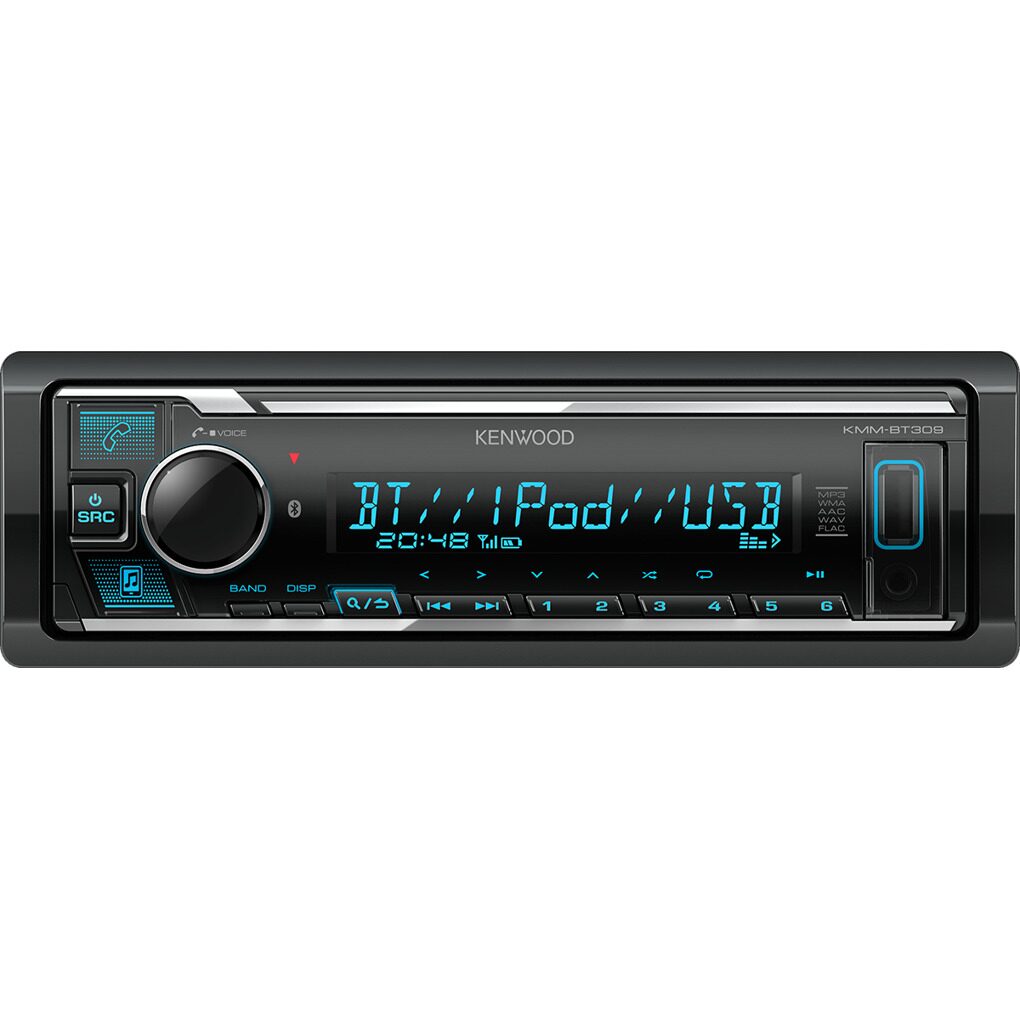

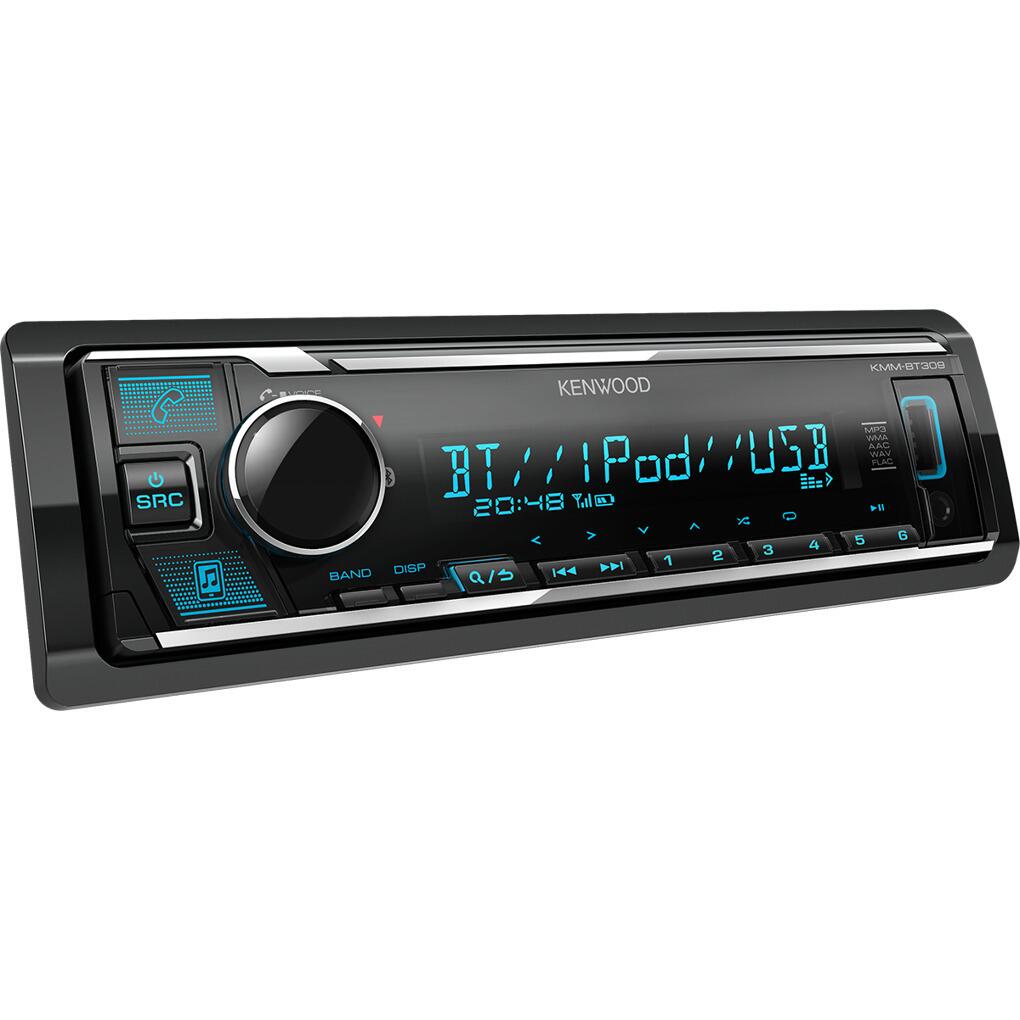

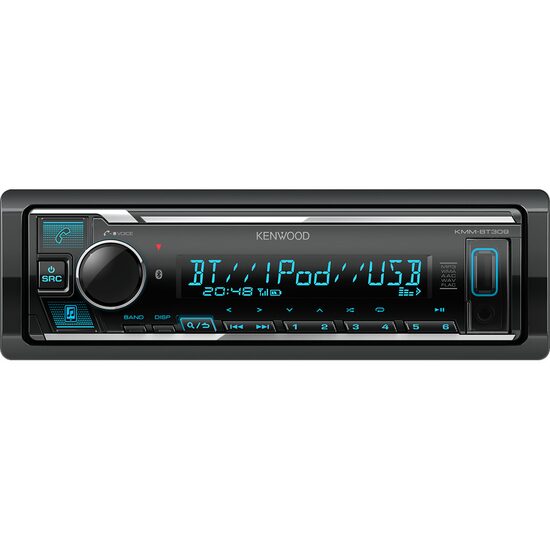

KMM-BT309 RADIO CU USB/BLUETOOTH KENWOOD, MULTICOLOR

Cod pachet : KMM-BT309
Adauga in Wishlist
compara...
Detalii produs

Media Receiver digital cu afisaj variabil color, USB/Bluetooth si AUX-in

Preț 599,00Lei
In stoc!
0 (0 recenzii)
Pret cu TVA
Cantitate
Livrare rapida
Service autorizatpentru instalari profesionale
Detalii suplimentare
Manual
Descriere produs

Media Receiver digital cu afisaj variabil color, USB/Bluetooth si AUX-in

  • Tehnologie Bluetooth pentru apeluri hands-free și streaming de muzică.
  • 2 telefoane asociate pentru apelurile primite, comuta automat.
  • Bucurați-vă de streaming audio pur și simplu comutând între 5 dispozitive Bluetooth conectate cu Music Mix.

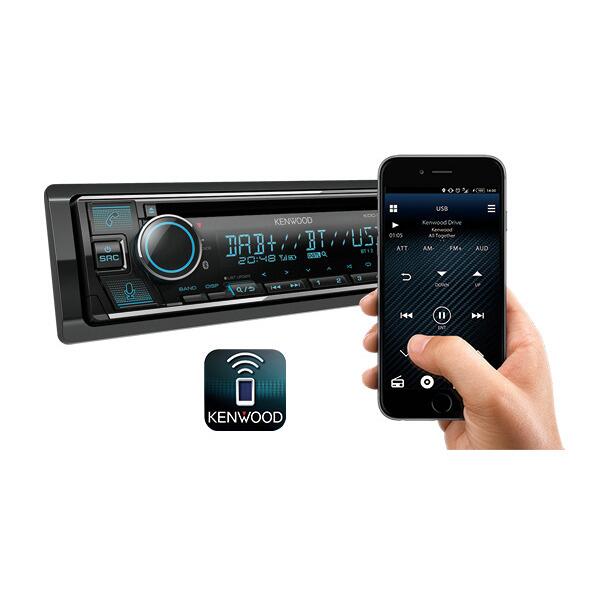

  • Utilizați-vă smartphone-ul ca pe o telecomandă wireless cu aplicația KENWOOD Remote.
  • Redare fișiere muzicale de pe USB: MP3 / WMA / AAC / WAV / FLAC.
  • Procesor de sunet digital, aliniere temporală și egalizator pe 13 benzi pentru îmbunătățiri optime ale reglajului sunetului.
  • 3 ieșiri pre-RCA de mare putere (2,5V) pentru a conecta mai multe amplificatoare de putere.
  • Ecran LCD lat, 1,5 linii, cu contrast ridicat, unghi larg de vizualizare și iluminare de fundal cu culori variabile.
  • Corp scurt (100 mm) pentru instalare ușoară.
  • Tip: 1DIN
  • Putere max.: 4 x 50W
  • Dimensiuni: 182 x 53 x 100mm
  • Microfon cu cablu de 3m
  • Radio: 24 posturi pre-setate (18FM / 6AM )
  • Meniu in limba engleză (implicit), rusă, spaniolă, franceză sau germană.

Specificatii tehnice:

DIN Size 1 DIN
Detachable Faceplate Yes
Key Illumination Variable LED
Rotary Encoder & Control Knob Yes
Dual Accent Key Handsfree & Audio Streaming
Back-up Memory Tuner presets & menu settings
Attenuator with Smooth Volume Return Yes
Touch Sensor Tone Yes
Digital Clock (24H) Yes
Clock display when power-off default off
All-off Select (20/40/60 minutes) Yes
Built-in Connector Mitsumi, 16 pin
ISO connector Yes, Mitsumi to ISO cable
Bluetooth unit built-in Yes
USB interface x 1 Yes, (Front)
Firmware upgreadable Yes
Mechless receiver Yes
Short body Yes

Display Features

Display Type Liquid Crystal Display (LCD)
Display Layout 2 line text + custom icons
Vertical Aligment Liquid Crystal Display Yes
Display Illumination Variable by RGB LED
Dimmer Control Manual / Set by Timer
Brightness control 0 - 31 steps
Demo Mode Yes
Menu text in selectable language English(default) / Spanish / French / German / Russian

Cosmetics features

Dress plate Piano Black
Preset key finish Piano Black
Escutcheon finish Piano Black
Volume & operation knob or wheel Transparant Lighting & Chrome Finished Ring
Triangle Illumination Red LED
Front terminals dust cover Yes
Key illumination Variable by RGB LED
Illuminated front USB port Variable by RGB LED
Brightness Control (Key) 0 - 31 step
Dimmer Control (Key) Manual / Set by Timer
Variable color illumination Yes
Color Zone Concept 2 zone colour control
Brightness zone concept 2 zone brightness control
Chrome-finished accents Volume knod & faceplate

Tuner Features

FM Reception Yes
FM Stereo / Mono Selector Yes
AM (MW/LW) Reception Yes
Up/Down Seek/Scan Yes
Station Select Manual / Preset
Tuner Presets (FM/AM) 24 Presets (18FM / 6AM)
Mixed preset memory (FM & AM) 6 presets
Automatic Memory Entry (AME) Yes
Tuner Preset Back-up Memory Yes
Radio Data System Yes
Radio Text Plus Yes
Traffic Information Yes
Local search Yes
AF Regional Selectable: AF/AF Reg/OFF
Auto TP search Yes
Enhanced Other Networks Function (EON) Yes
Program Type Function (PTY) Yes

USB Features

USB Type 2.0 High speed
Repeat/Scan/Random search Yes
Repeat / Random Play Yes
Direct search Yes
Last Position Memory / Resume Yes
Time code display Yes

iPhone Features

USB Direct Control (Audio, 1 wire, Lightning-connector) with optional cable KCA-iP103
Music playback Yes
Alphabet search Yes
Skip search Yes
Related search Yes
Direct Search Yes
Control by hand Yes
App & iPod control mode Yes
Spotify App Link Yes
iAP over Bluetooth Yes
iTunes Radio App yes iAP2
Reverse browsing Yes
Battery charge + power control Yes
* Always update to latest Apple firmware

Audio Features

Maximum Output Power 50W x 4
MOSFET Power IC Yes
Auxiliary Type Mini-jack, front panel
Pre-out 3 RCA
Pre-out Output Level 2.5V
Subwoofer Reference Level Adj. Yes
2-Way X'over network Yes
3-Way x'over (bi-amp connection) Yes
Tone Control / Easy EQ 13 band, 8 presets
Balance/Fader/Loudness Control Yes
Bass Boost Circuit Off/+1/+2/+3/+4/+5
Att.(-20dB) with smooth Volume Return Yes
Easy 3-band EQ mode Yes
Graphic Equalizer + Preset 13-Bands Graphic Equalizer with 8 Presets.
Digital Sound Processor (DSP) Built-in Yes
Digital Time Aligment (DTA) Yes
Low- & High-pass Filter Yes
Speaker Size Control Yes, Front/rear/subwoofer independently
Kenwood Sound Reconstruction Yes
Sound Reconstruction Yes
Space Enhancer Yes
Sound Realizer Yes
Stage EQ Yes
Drive EQ Yes

Bluetooth General Features

Max num. of regist. phones for HFP & A2DP 5 phones
Hands Free Profile with High Sound Quality HFP V1.7.1
Max num. of regist. phones for HFP 5 phones
2 phones full time connection Yes
Audio Streaming (A2DP) Yes
High Quality Audio Streaming SBC/AAC
Max num. of regist. units for A2DP 5 units
Serial Port Profile (SPP) Yes
Phonebook Access Profile (PBAP) Yes
iPhone & Android automatic pairing via USB Yes
KENWOOD Remote App Ready
KENWOOD Music Mix Support Yes
Catchphone / Call Waiting Yes
Private mode Yes
Alphabet Search (Phonebook) Yes
Noise Canceller Yes
Echo Canceller Yes
Phone device status display Yes
Audio device status display Yes
Signal strength display Yes
Remaining battery display Yes
Bluetooth Paring Indicator Yes
High-quality noise canceling microphone Rear Wired
Bluetooth firmware upgradeable Yes
* depends on phone model/make & Kenwood unit

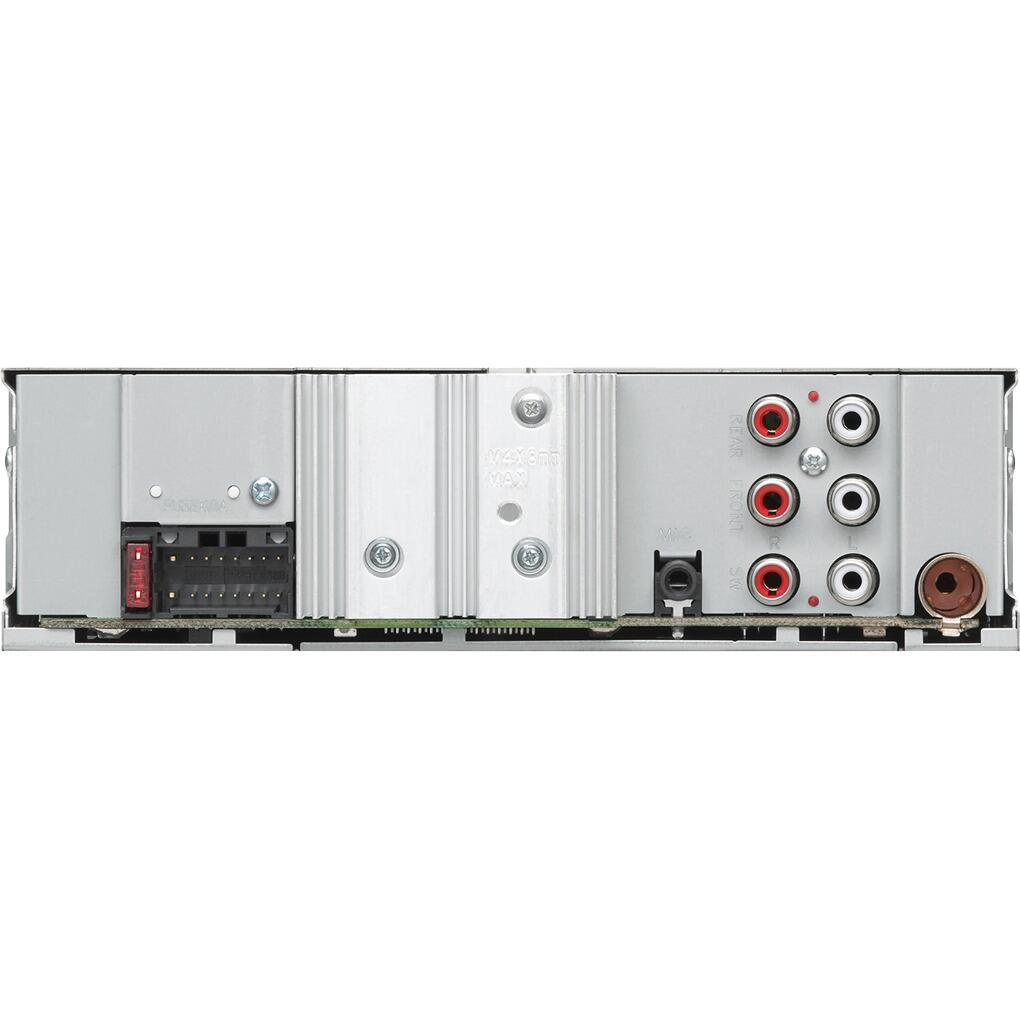

Connectivity

Front USB & AUX Input Yes
DC-Cord Mitsumi to ISO
Power Control (P.CON) wire Yes
Amplifier pre-out 3 x RCA: Front/Rear/Subwoofer
FM Antenna Input JASO connector
External microphone input 3,5mm mini-jack
OEM Wired Remote Control ready Yes

Tuner Specifications

FM range: 87.5Mhz - 108MHz (50Khz step) Yes
FM Usable Sensitivity 0.56μV/75ohm (S/N 30dBf)
FM Quieting Sensitivity 1.58μV/75ohm (S/N 46dBf)
FM Frequency Response 30Hz ~ 15kHz (± 3dB)
FM Signal to noise ratio (Mono) 68dB
FM Stereo Separation (1kHz) 40dB
MW range: 531kHz - 1611kHz (9kHz step) Yes
MW Usable Sensitivity 28.5μV
LW range: 153kHz - 279kHz (9kHz step) Yes
LW Usable Sensitivity 45μV

Codec Specs

MP3 Format MPEG 1/2 Audio Layer 3-Files
WMA Format in accordance with Windows Media Audio
AAC Format AAC-LC “.aac”(CD&USB) and ".m4a"(USB) files
WAV Format RIFF waveform Audio Format (only for LinearPCM)
FLAC Format FLAC files (up to 96kHz/24bit)

USB Specifications

USB Version compatibility USB 1.1 / 2.0 full speed
File System FAT 32 / 16 / 12
Maximum Supply current 1500mA
D/A Converter 24bit
MP3 Decode Compliant with MPEG-1/2 Audio Layer-3
WMA Decode Compliant with Windows Media Audio
AAC Decode "m4a" & "aac" file encoded by AAC-LC format
WAV Decode Linear - PCM Files
flac Decode FLAC files up to 96kHz/24bit

Audio Specifications

Maximum Power 50 W x 4
Output Power (DIN45324,+B=14.4v) 22 W x 4
Preout Level 2500 mV / 10 kOhm,
Preout Impedance ≤ 600 Ohm
Speaker Impedance 4 Ohm ~ 8 Ohm
AUX Frequency Response 20 Hz ~ 20 kHz (±1dB)
AUX Maximum Input Voltage 1000 mV
AUX Input Impedance 30 kOhm

DSP Specifications

Frequency band - Front 62.5Hz ~ 16kHz
Equalizer Gain –9db ~ +9db
Q Control 0.25/ 0.50/ 1.00/ 2.00
High Pass Filter frequency Through/50 ~ 220 (Hz)
High Pass Filter Slope -12/-18/-24 dB/Oct
Low Pass Filter frequency 50 ~ 120(Hz)/Through
Low Pass Filter Slope -12/-18/-24 dB/Oct
Time Alignment 0 — 610cm(2 cm step)
Car type control ► OFF► COMPACT► Full SIZE CAR► WAGON► MINIVAN► SUV► MINIVAN LONG
Equalizer Type Graphic
Frequency band 13 bands

Bluetooth specifications

Technology Bluetooth V4.2
Frequency 2.402 - 2.48 GHz
Output power +4dBm(max), 0dBm (AVE) power class 2
Maximum range Line of sight approx. 10 meter
Handsfree profile (HFP) Yes
Serial port profile (SPP) Yes
Advanced audio distribution profile (A2DP) Yes
Audio Codec SBC/AAC
Audio/Video remote control profile (AVRCP) Yes
Phonebook access profile (PBAP) Yes

Accessories

Release keys 2 pieces
Escutcheon Yes
Installation Sleeve Yes
DC cord (Mitsumi to ISO) 15 cm
Handsfree Microphone with 3 m cable

General Specifications

Operating voltage 14.4V (10.5 ~ 16V Allowable)
Maximum Current Consumption 10A
Dark Current Consumption Below 1mA
Dimensions (WxHxD) 182 x 53 x 100mm
Weight 600 gr.
Operation Temperature Range -10°C ~ 60°C
Instruction Manuals Multi-language quick Guide

Specificatii
Instalare 1Din
Conexiuni USB/BT
Afisaj Multicolor
Putere Max. 4 x 50W
