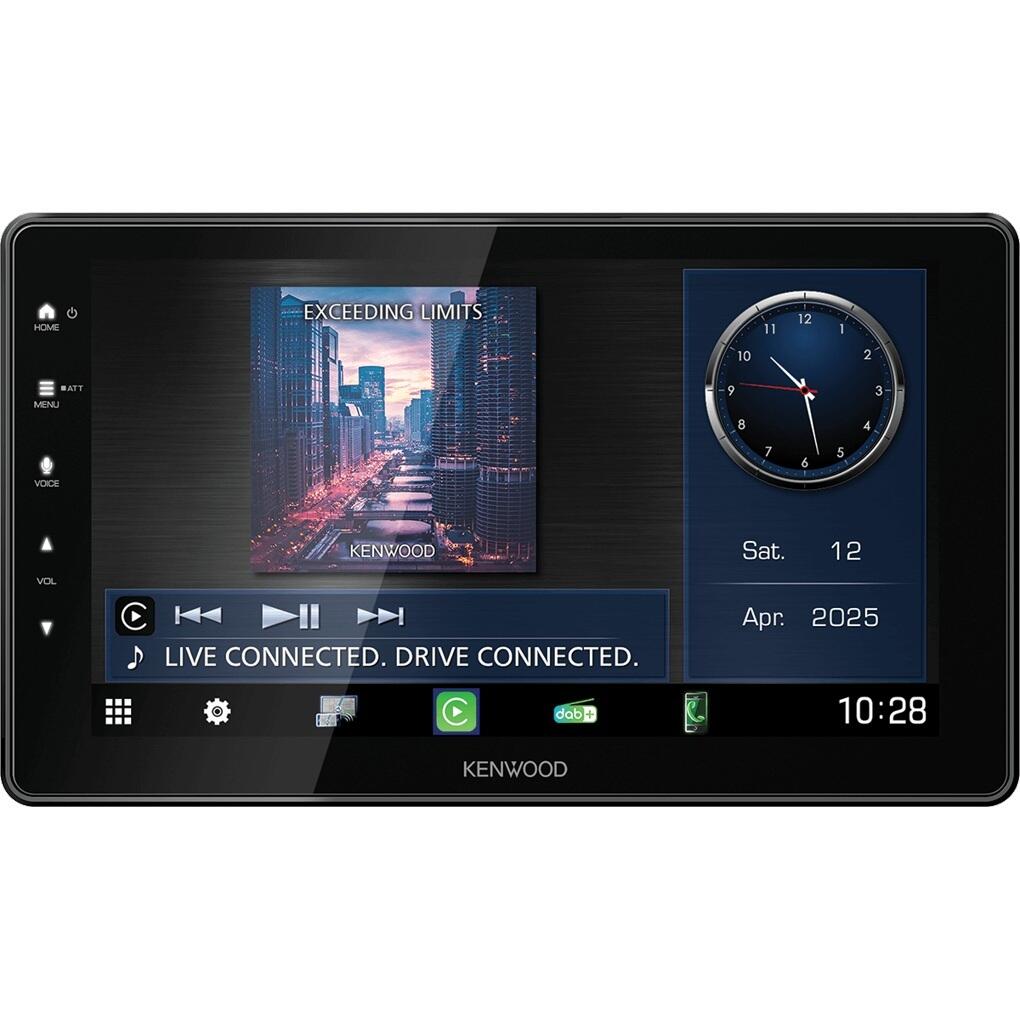

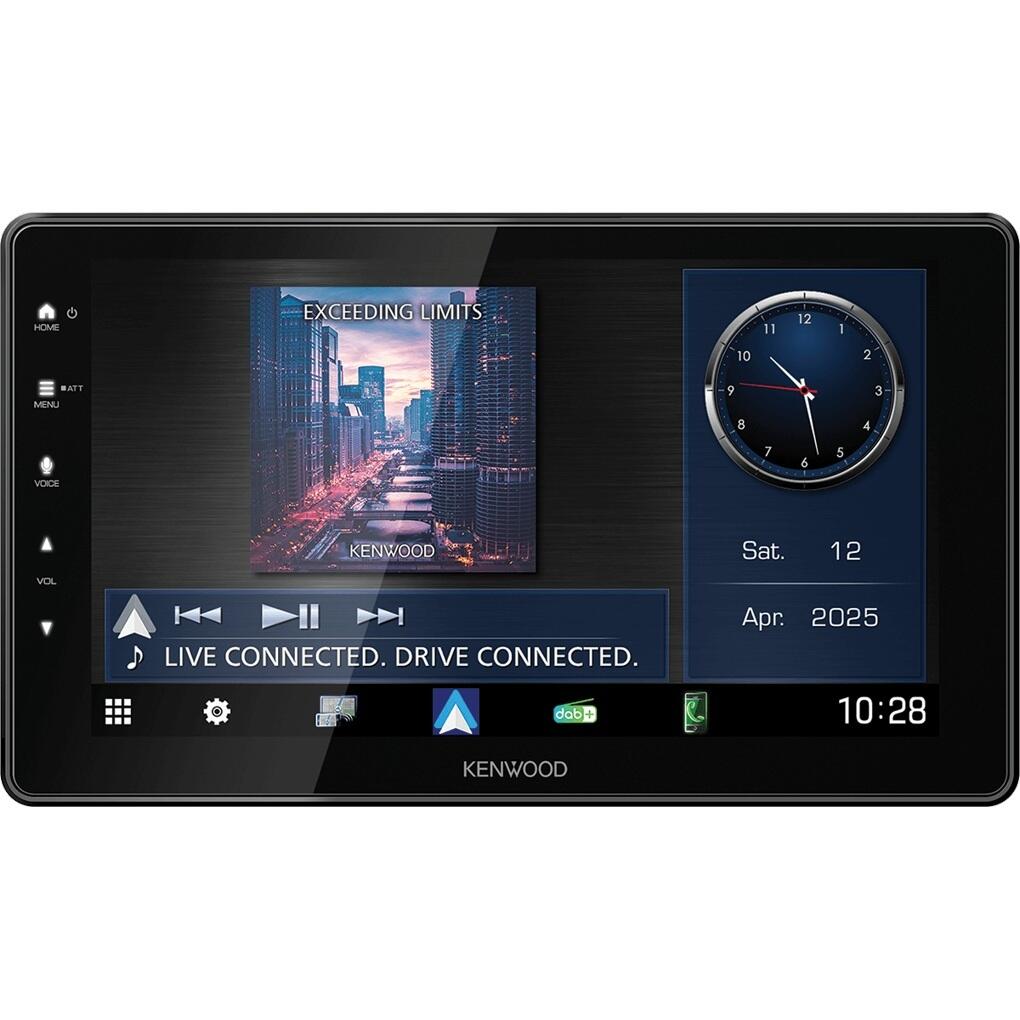

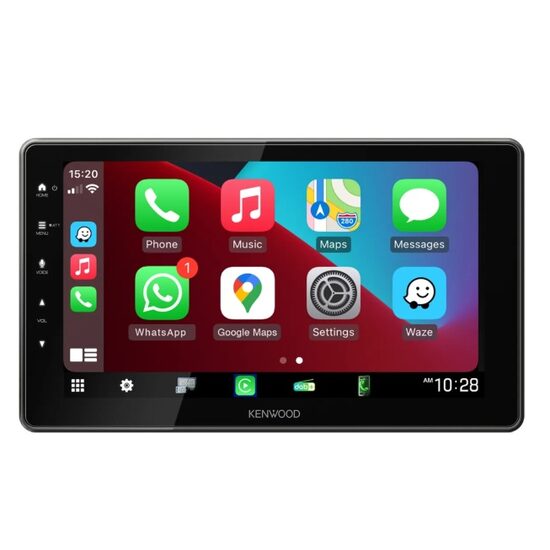

DMX-F920DS Ecran HD de 9", wireless CarPlay si Android Auto/BT/USB/DAB+
Detalii produs
Ecran reglabil HD de 9", conectare wireless/prin cablu pe CarPlay si Android Auto, DAB+/Bluetooth/USB
Service autorizatpentru instalari profesionale
Ecran reglabil HD de 9", conectare wireless sau prin cablu pe CarPlay si Android Auto, DAB+/Bluetooth/USB
- Ecran de înaltă definiție de 9" cu iluminare fundal LED de înaltă luminozitate și unghiuri de vizualizare superioare, largi.

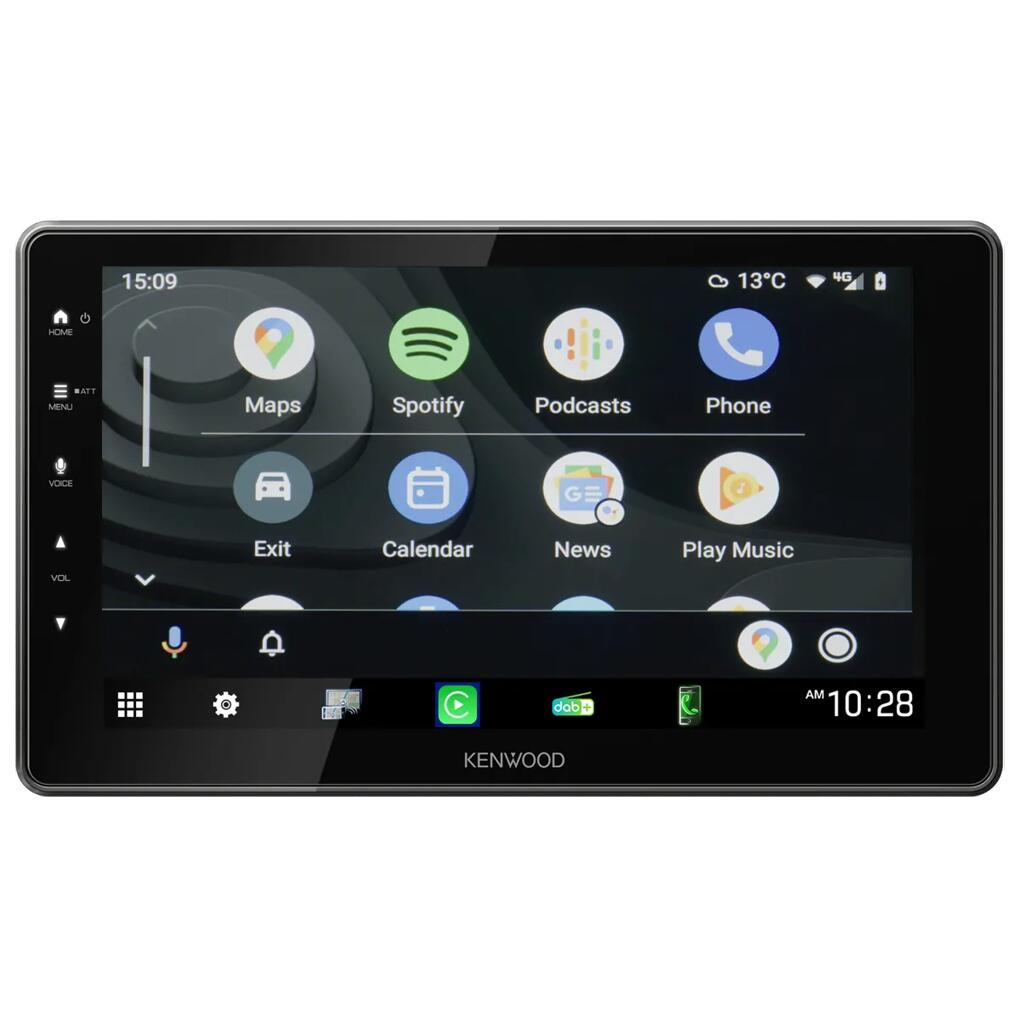

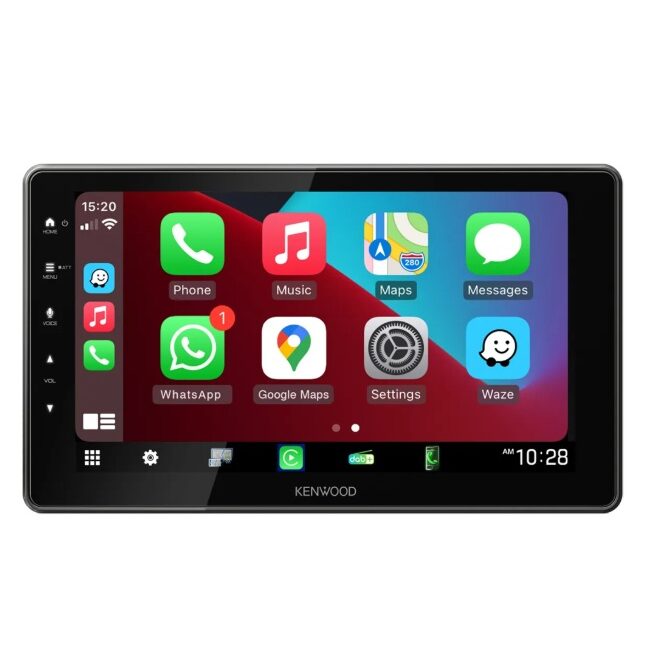

- CarPlay® și Android Auto™ prin cablu și wireless, modalitatea ideală de a utiliza smartphone-ul în mașină.
- Oglindire ecran cu fir și wireless cu aplicația CarbitLink-EasyConnection pentru iOS și Android.
- Tuner radio digital DAB+ pentru sunet stereo digital clar, fără zgomot și interferențe.
- Apeluri hands-free și streaming audio Bluetooth® încorporat.
- Terminal USB tip A de mare viteză pentru dispozitivele compatibile cu USB. (maxim 2,1 A).

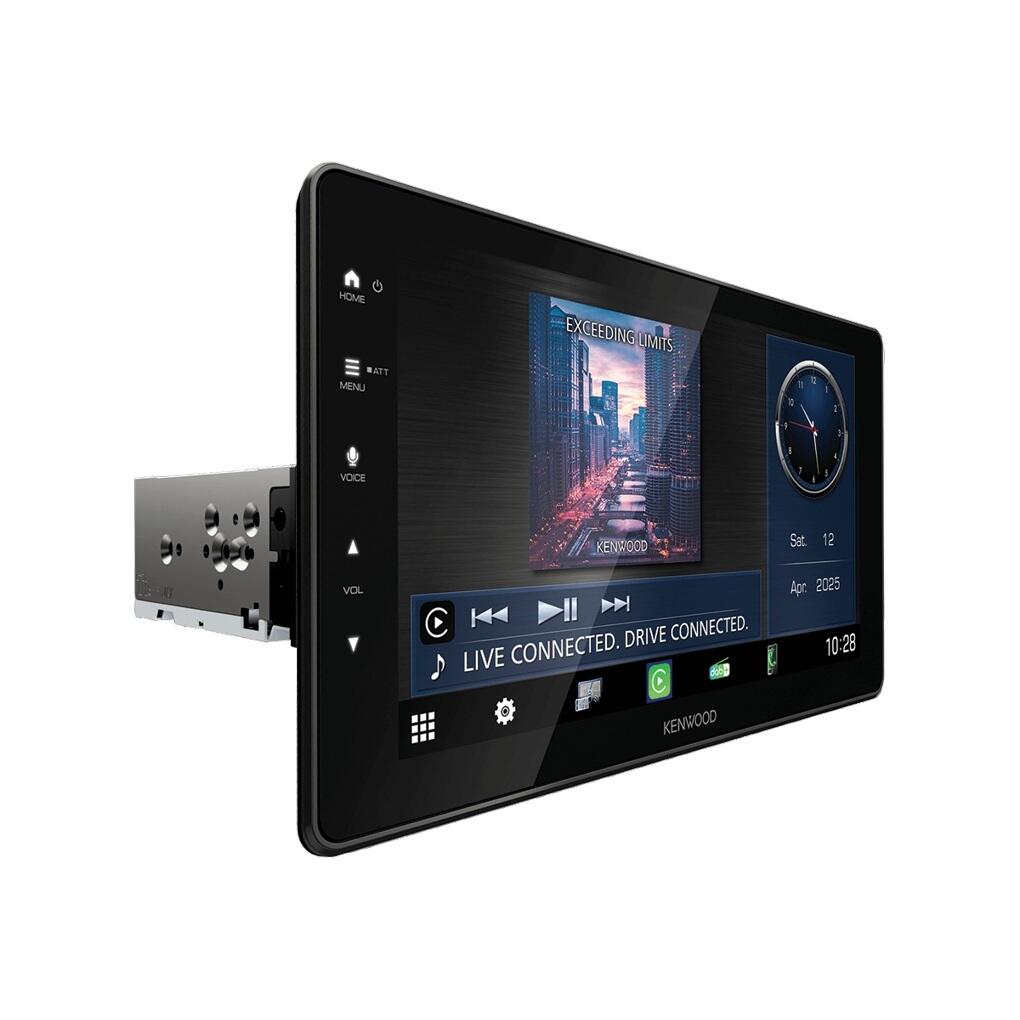

- Ecranul complet reglabil permite șoferilor să rotească și să încline ecranul la 360°, oferind ajustări ușoare ale unghiului cu înclinare, mișcare la stânga și la dreapta pentru o vizualizare optimă.
- Intrare cameră video spate cu ghidaje de parcare, compatibilă cu camera HD.
- Egalizator pe 13 benzi și Digital Time Alignment pentru a optimiza performanța sunetului.
- 3 pre-amplificari (3,0 V) pentru a personaliza și actualiza sistemul audio.
- Design cu corp scurt 1DIN pentru o instalare mai flexibilă.
General Features:
Monitor Features:
| Screen Type |
9.0" High Definition screen |
| Display Type |
Glare |
| Display Panel |
Capacitive |
| Display film |
Anti Fingerprint |
| High Definition Display |
Yes |
| LCD backlight |
White LED |
| Display Mode |
3 Mode (Full(default)/Auto/Normal) |
| Screen Adjustments |
Colour / Contrast / Backlight |
| Dimmer function |
SYNC by Illumination line |
| Dimmer Level |
Auto/On/Off |
| Visual Source Mode |
Mirorring / CarPlay / Android Auto. |
| Mechanism type |
360°Fully Adjustable Floating Mechanism |
| NTSC/PAL judge |
Yes (Auto) |
| Display Off Mode |
Yes |
Multimedia GUI Features:
| OSDC Type |
Graphic |
| Menu text |
available languages:► English(UK)(Default)► English(US)► Spanish► French► German► Italian► Dutch► Portuguese► Arabic► Greek► Polish► Czech► Hungarian |
| Demonstration Mode |
Yes |
| Top Menu Customize |
Yes |
| Opening Screen Type |
KENWOOD |
| Wallpaper customizable |
Preset x4 |
| R-CAM interrupt |
Yes |
| R-CAM Parking Guide Lines |
Yes, Built-in, customizable |
Network & Wifi features
Tuner Features
CE DAB tuner features
Bluetooth General Features
Playable Audio File
CE_Playable Video file
USB Features
| USB Type |
Type-A (2.0 High speed) |
| Yes |
| Drive Change |
Yes |
| File System |
FAT16 / FAT32 / exFAT / NTFS |
| Works with Android Auto |
Yes |
| Works with Apple CarPlay |
Yes |
| USB Screen Mirroring |
with CarbitLink-Easy Connection app |
| Tag Information Display |
Yes |
| Album Art Display |
Yes |
| Repeat Play |
Folder/File/All |
| Random play |
Folder |
| Category search |
Yes |
| Link Search |
Yes |
| Last Position Memory / Resume |
Yes |
| Time code display |
Yes |
| USB ports maximum output current |
2.1A |
iPhone Features
| Connection via: |
USB / Bluetooth |
| Plug & Play |
Yes |
| Made for iPhone |
Yes |
| Tag Information Display |
Yes |
| Time Code Display |
Yes |
| List Access |
Yes |
| Album art support |
Yes |
| Random Play |
Yes |
| Repeat Play |
Yes |
| Skip |
Yes |
| iAP over Bluetooth |
Yes |
| Works with Apple CarPlay |
Wired & Wireless |
Android Phone Control
Audio features
| Max. Output Power |
4 x 50W |
| Primary Power Output |
4 x 22W |
| Pre-out |
3RCA: Front/Rear/Subwoofer |
| Pre-out Output Level |
3V |
| Volume Offset |
Yes |
| Volume Type |
DSP |
| Built-in Amplifier Off |
Yes |
| Balance/Fader Control |
Yes |
| Beep On/Off |
Yes |
Multimedia DSP Features
| Position Control |
Yes |
| Position Preset |
4 Presets |
| Graphic Equalizer |
13 bands |
| G-EQ manual setting |
Yes |
| G-EQ adjustable level |
Yes, +9db / -9dB |
| Time Alignment |
0 ~ 610cm |
| HPF Cut Off Frequency |
14 steps |
| HPF Cut Slope Level |
4 steps |
| Low Pass Filter (LPF) |
Yes (Non-Fading) |
| LPF Cut Off Frequency |
14 steps |
| LPF Cut Slope Level |
4 steps |
| X'over |
Yes |
| Speaker Size Control |
Yes |
| Channel Level Control |
Yes |
| Loudness |
Yes |
| Tweeter volume |
Yes |
| Bass Boost |
Yes |
| Source Volulme Offset |
source independent |
Connectivity
Tuner Specifications
| FM range: 87.5Mhz - 108MHz (50Khz step) |
Yes |
| FM Usable Sensitivity |
1.8μV/75ohm (S/N 30dBf) |
| FM Frequency Response |
30Hz ~ 14kHz (± 3dB) |
| FM Signal to noise ratio (Mono) |
75dB |
| FM Stereo Separation (1kHz) |
40dB |
| MW range: 531kHz - 1611kHz (9kHz step) |
Yes |
| MW Usable Sensitivity |
29μV |
DAB Tuner specifications
| Band III - Frequency range |
174.928 MHz - 239.2MHz |
| Mode |
Band III |
| Sensitivity |
- 98dBm |
| Signal to noise ratio |
78dB |
| Audio format |
MPEG1 Audio Layer II, MPEG4 HE-AAC V2 |
| Output Voltage |
14V (10.5V to 16V allowable) |
| Maximum Current |
< 100 mA |
Bluetooth specifications
| Technology |
Bluetooth V5.3 |
| Frequency |
2.402 - 2.48 GHz |
| Output power |
+9 dBm (max), Power Class 1 |
| Maximum range |
Line of sight approx. 10 meter |
| Handsfree profile (HFP) |
Yes, V1.7 |
| Serial port profile (SPP) |
Yes, V 1.2 |
| Advanced audio distribution profile (A2DP) |
Yes, V 1.4 |
| Audio Codec |
SBC/AAC |
| Audio/Video remote control profile (AVRCP) |
Yes, V1.6 |
| Phonebook access profile (PBAP) |
Yes, V1.2 |
USB Specifications
| USB Version compatibility |
USB 2.0 High Speed |
| File System |
FAT 16/32 / exFAT / NTFS |
| Maximum Supply current |
2100mA |
| D/A Converter |
24bit |
| Video Decoder |
MPEG1/2/4, WMV, H.264, mkv |
| Audio Decoder |
MP3, WMA, AAC, WAV, FLAC |
Audio Specifications
| Maximum Power |
50 W x 4 |
| Output Power (DIN45324,+B=14.4v) |
22 W x 4 |
| Output frequency band |
20 Hz ~ 20 kHz |
| Preout Level |
3000 mV / 10 kOhm, |
| Preout Impedance |
≤ 300 Ohm |
| Speaker Impedance |
4 Ohm ~ 8 Ohm |
Video Specifications
| Color System of External Video Input |
NTSC/PAL |
| External Video Input Level (RCA) |
1 Vpp / 75 Ohm |
| Video Output Level (RCA) |
1 Vpp / 75 Ohm |
Monitor Specifications
| LCD Type |
High Definition screen |
| Screen size (Diagonal) |
9 Inches Wide |
| Screen Size (WxH) |
198.91 x 111.89mm |
| Display system |
Transparent TN LCD Panel |
| Drive system |
TFT Active Matrix System |
| Number of Pixels |
2764800pixels (1280(H) x 720(V) x RGB) |
| Effective pixels |
99.99% |
| Pixel arrangement |
RGB Striped |
| Back lighting |
LED (Light Emitting Diode) |
General Specifications
| Operating voltage |
14.4V (8.5 ~ 16V Allowable) |
| Maximum Current Consumption |
15A |
| Dimensions Monitor unit (WxHxD) |
240 x 140 x 31mm |
| Weight Monitor unit |
0.66 kg |
| Dimensions chassis Unit (WxHxD) |
178 x 50 x 120mm |
| Weight chassis unit |
0.94 kg. |
| Unit weight in individual package |
2.44 kg |
Accessories
| DC cord ( to ISO) |
20-pin connector to ISO, 25 cm |
| Flat Head Screw (M-Type) |
M5 x 8mm, 4 pieces |
| Hex Head Screw (M-Type) |
M5 x 8mm, 4 pieces |
| GPS Antenna Ground Plane Mount (Adhesive Metal Pad) |
Yes |
| Handsfree Microphone |
with 3 m cable |
| Multi-Language Instruction Manual Included |
|
Clipuri video:
| Instalare |
1Din
|
| Conexiuni |
USB/BT/DAB+/Wi-Fi
|
| Afisaj |
Multicolor
|
| Putere Max. |
4 x 50W
|
| Diagonala ecran |
9"
|
