PDX-V9 AMPLIFICATOR ALPINE PE 5 CANALE, 1600W
Detalii produs
AMPLIFICATOR AUTO DIGITAL, 4 CANALE + 1 MONO, 1600W
Service autorizatpentru instalari profesionale
AMPLIFICATOR AUTO DIGITAL, 4 CANALE + 1 MONO, 1600W
- Seria PDX este complet reproiectata pentru a imbunatati performantele, calitatea sunetului si fiabilitatea. Seria PDX este pentru adevaratii audiofili, toate acestea intr-o dimensiune compacta.
- Putere maxima totala: 1600 W
- Pe canal in 4 Ohmi: 100W RMS x 4 + 500W RMS x 1
- Pe canal in 2 Ohmi: 100W RMS x 4 + 500W RMS x 1
Caracteristici tehnice:
Install

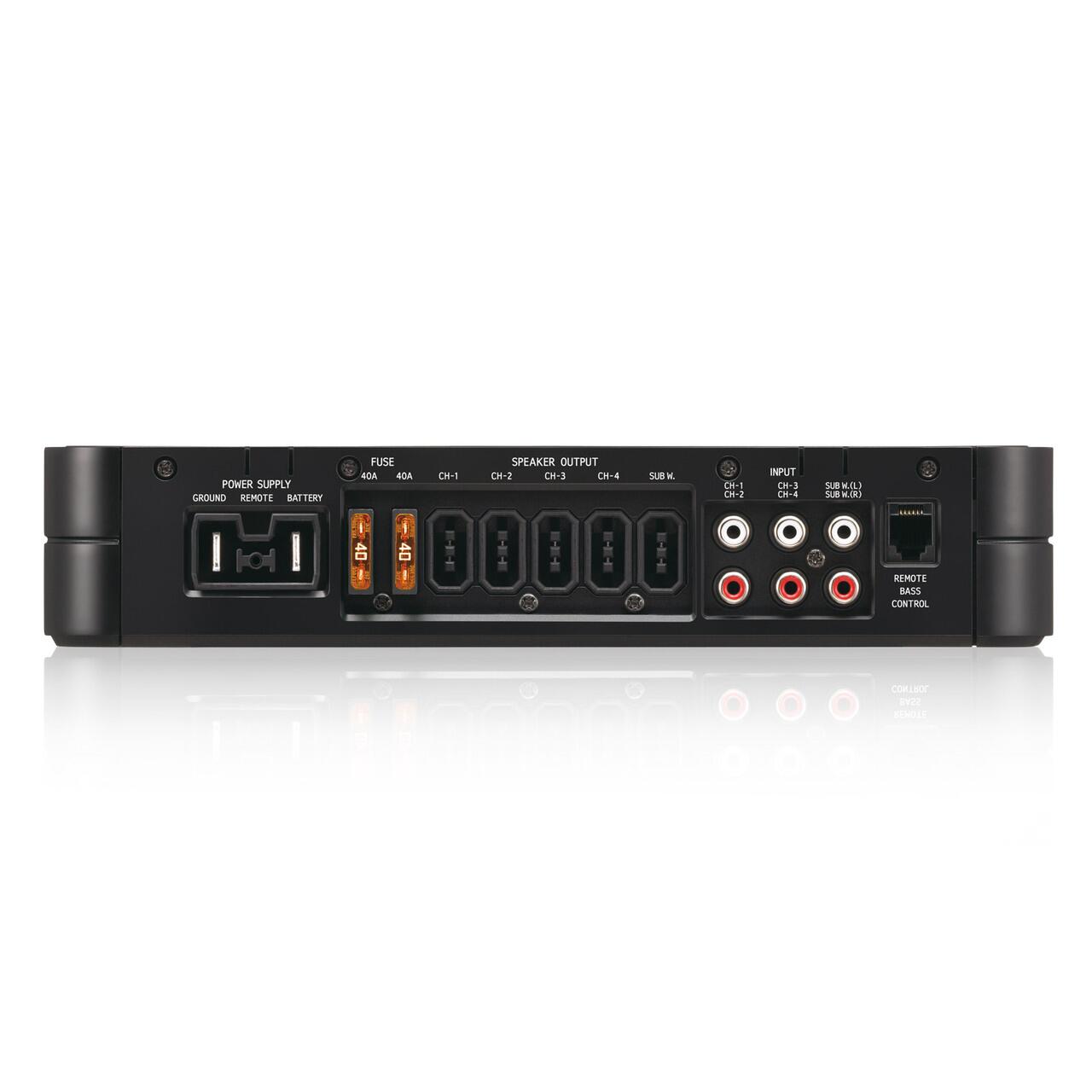

- Connectors: Quick Connect Terminals for Power Supply and Speaker Output
- Terminal Layout: One-Sided
- Mounting Design: Easy Stacking and Smart Installation
General
- Amplifier Type: Class-D (Digital)
- Channel Design: 4-channel + 1-channel (Mono)
- Thermal Protection
- Low-battery Protection
- Power Supply: DC-DC PWM Power Supply
- Board Circuitry: S.T.A.R. Circuit
- Current Protection: Auto Over Current Protection
- Power Indicator: Top Mounted LED Power/Status Indicator
- Crossover: Variable High Pass, Low Pass and Band Pass Filter
- Input Channel Mode Setting (CH1/2 & CH3/4):
- Input Channel Mode Setting (Subwoofer)
- Subsonic Filter: Variable Subsonic Filter
- Pre-Amp Stage: Discrete
- Final Outputs: MOSFET
- Board Design: 6-Layer Glass Epoxy PC Board
- Bass Control: Remote Bass Control (RUX-KNOB) Ready
Max Power Output Ratings
RMS Power Ratings
- Per Channel into 4ohms, 14.4V (≤1%THD+N): 100W RMS x 4 + 500W RMS x 1
- Per Channel into 2ohms, 14.4V (≤1%THD+N): 100W RMS x 4 + 500W RMS x 1
- Bridged into 4ohms, 14.4V (≤1%THD+N): 200W RMS x 2
Sound Tuning
- Crossover (CH1/2, HPF): 30 – 600 Hz (x1), 300 – 6kHz (x10), -12 dB/oct.
- Crossover (CH3/4, HPF): 30 – 600 Hz, -12 dB/oct.
- Crossover (CH3/4, BPF): 30 – 600 Hz (HPF), 300 – 6kHz (LPF, x10), -12 dB/oct.
- Crossover (Subwoofer): 50 – 600 Hz, -24 dB/oct.
- Subsonic Filter: 3 – 30 Hz, -24 dB/oct.
General
- Power Requirements: 14.4 V.DC (11-16 V allowable)
- Input Sensitivity (RCA Input): 0.2 – 4V (CH1/2, CH3/4), 0.1 – 4V (Subwoofer)
- Input Impedance: >10k ohms
- Frequency Response (+0, -3dB: 1W into 4 ohms) for CH-1/2/3/4: 3 – 100kHz
- Frequency Response (+0, -3dB: 1W into 4 ohms) for Subwoofer: 3 – 600 Hz
- THD+N (10W into 4 ohms) for CH-1/2/3/4: ≤0.005%
- THD+N (10W into 4 ohms) for Subwoofer: ≤0.006%
- THD+N (Rated Power into 4 ohms) for CH-1/2/3/4: ≤0.03%
- THD+N (Rated Power into 4 ohms) for Subwoofer: ≤0.05%
- Damping Factor for CH-1/2/3/4: >500 into 4ohms at 100Hz
- Damping Factor for Subwoofer: >1000 into 4ohms at 100Hz
- Signal to Noise (Rated Power into 4 ohms) for CH-1/2/3/4: 112 dB
- Signal to Noise (Rated Power into 4 ohms) for Subwoofer: 119 dB
- Weight: 2.7 kg
Dimensions
- Footprint: 257 x 50.8 x 192 mm
| Numar canale |
5
|
| Putere Max. |
1301 - 1600W
|
| Putere RMS in 4Ω |
4 x 100W
|
| Putere RMS in 2Ω |
4 x 100W
|
