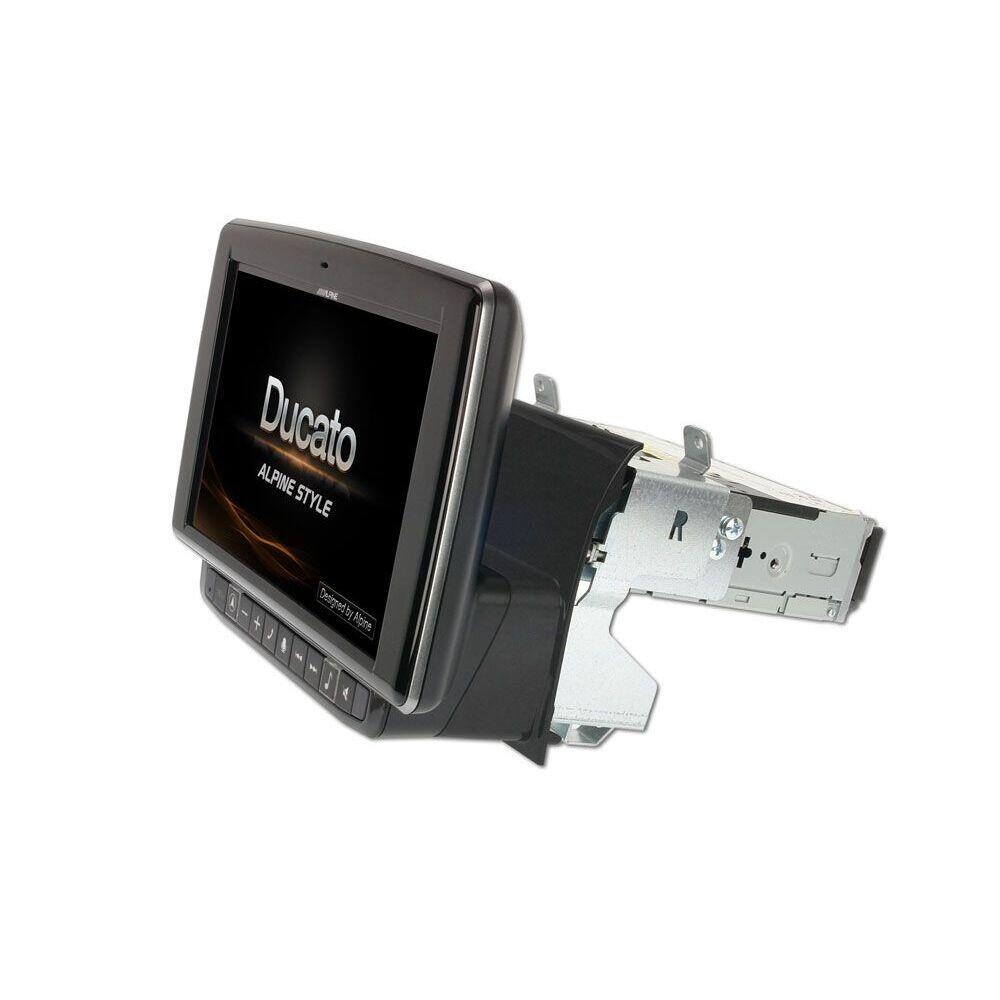

i902D-DU SISTEM MULTIMEDIA ALPINE DE 9" PENTRU FIAT, CITROEN, PEUGEOT

Sistem Multimedia Alpine cu ecran de 9", compatibil Apple CarPlay si Android Auto

Alpine prezinta a doua generatie de sisteme Alpine Style pentru Fiat Ducato 3, Citroën Jumper 2 si Peugeot Boxer 2, asociate cu cele mai noi dotari. Alpine oferă cel mai mare ecran (9"), opțiuni media extinse, cum ar fi compatibilitate cu Apple CarPlay și Android Auto ( prin cablu ). Cu acest sistem fantastic, obțineți cea mai bună calitate a sunetului și diferite opțiuni de reglare a sunetului.

Integrare perfectă a vehiculului cu componente premium. Performanță fără compromis!

Caracteristici tehnice:

Tuner

• Station memory: FM: 24 / MW: 6 / LW: 6
• Station memory: Automatic station memory
• Search function: Manual / Local / DX selection
• RDS function: AF, TA, TP, PTY, PI, NEWS, RADIO TEXT

DAB + tuner

• Integrated DAB + tuner
• DAB + / DMB support
• SLS (Slideshow Service)
• DLS (Dynamic Label Service)
• DAB + to DAB + Service Following
• FM linking (automatic DAB + / FM switching (if signal available))
• Station memory: 18 program memory locations
• Automatic ensemble / service storage
• Alphabetical station search function
• Service search function
• PTY search function
• Phantom power selectable for DAB antenna (on / off)

BLUETOOTH

• Integrated BLUETOOTH module
• Wide band speech technology
• Hands-free function: HFP (Hands Free Profile) compatible
• Music Streaming: A2DP (Advanced Audio Distribution Profile) compatible
• Music streaming control: AVRCP (Audio / Video Remote Control Profile) version 1.5 compatible
• Advanced BLUETOOTH technology
• Connection: SSP (Secure Simple Pairing) support
• Individual profile connection: hands-free function and music streaming
• Phonebook: Automatic phonebook transfer
• Direct selection buttons: 4 memory locations per phone
• Registration of different phones: 5 different phones can be registered
• Multiple numbers: up to 5 phone numbers per contact can be displayed
• Device name display
• Automatic call acceptance
• Call list: dialed number / answered calls / missed calls
• Reelection function
• Speech volume setting: Adjustable for incoming and outgoing calls
• DTMF tone function
• Display of the GSM signal strength
• Display of the battery charge status
• Menu language selection: 24 menu languages
• Firmware updatable

Made for iPod & iPhone

• Compatible with iPod / iPhone / iTouch: Made for iPod touch 6th / 5th Gen., iPod nano 7th Gen., iPhone 6 and 6 Plus, iPhone SE, iPhone 5S, iPhone 5C, iPhone 5, iPhone 4s
• Connection: KCU-471i required (optionally available)
• Possible selection: playlist, artist, album, song, podcast, genre, composer, audiobook
• Alphabetical search
• Album art ad
• Direct Up / Down: Playlist / Artist / Album / Genre / Composer
• MIX (shuffle) play: song, album, all
• Repeat function
• Charging function

Connectivity

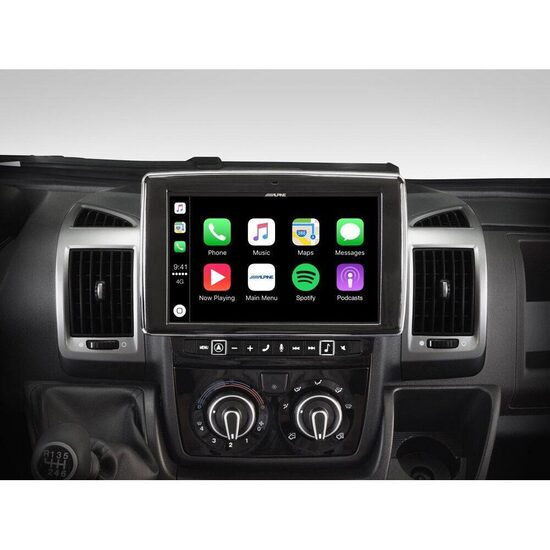

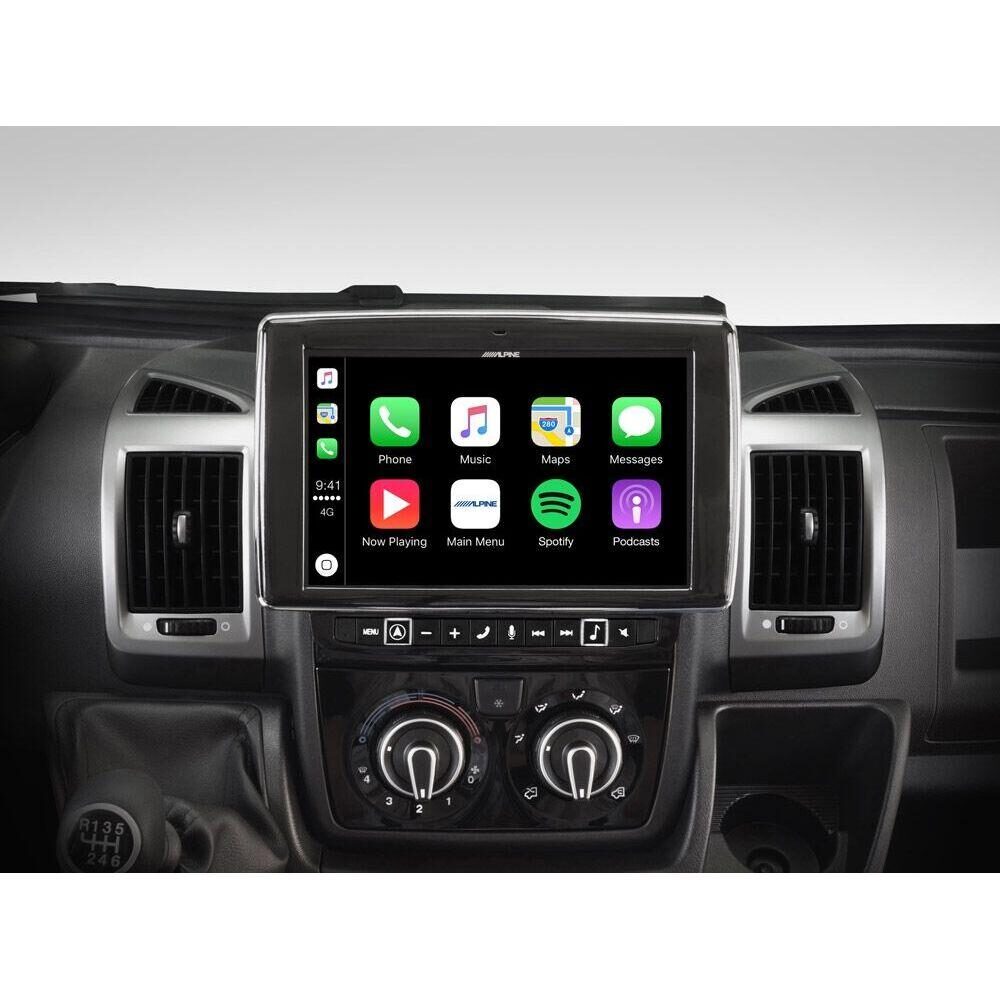

• Works with Apple CarPlay (CarPlay compatible smartphone required)

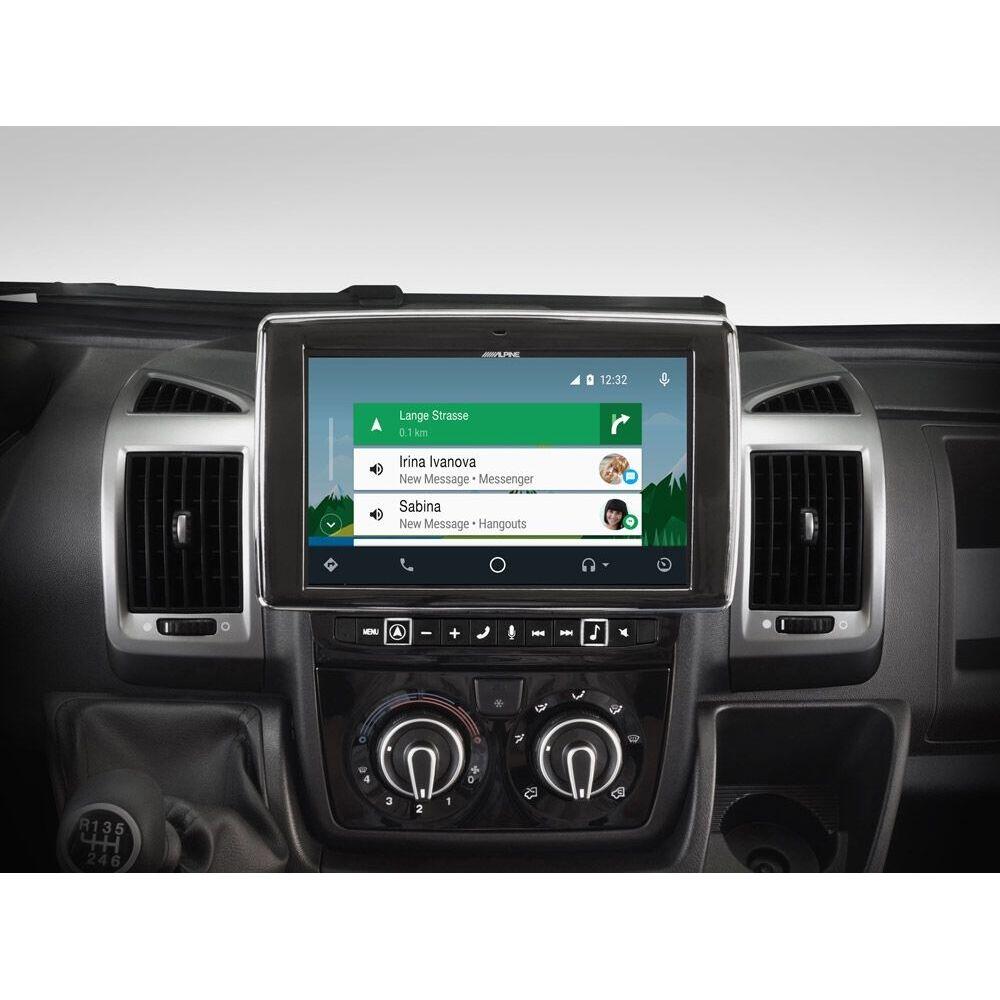

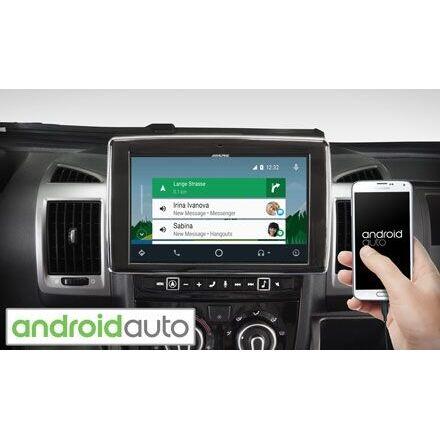

• Works with Android Auto (Android Auto compatible smartphone required)

USB connection

• USB port on the back (2 m USB extension cable included)

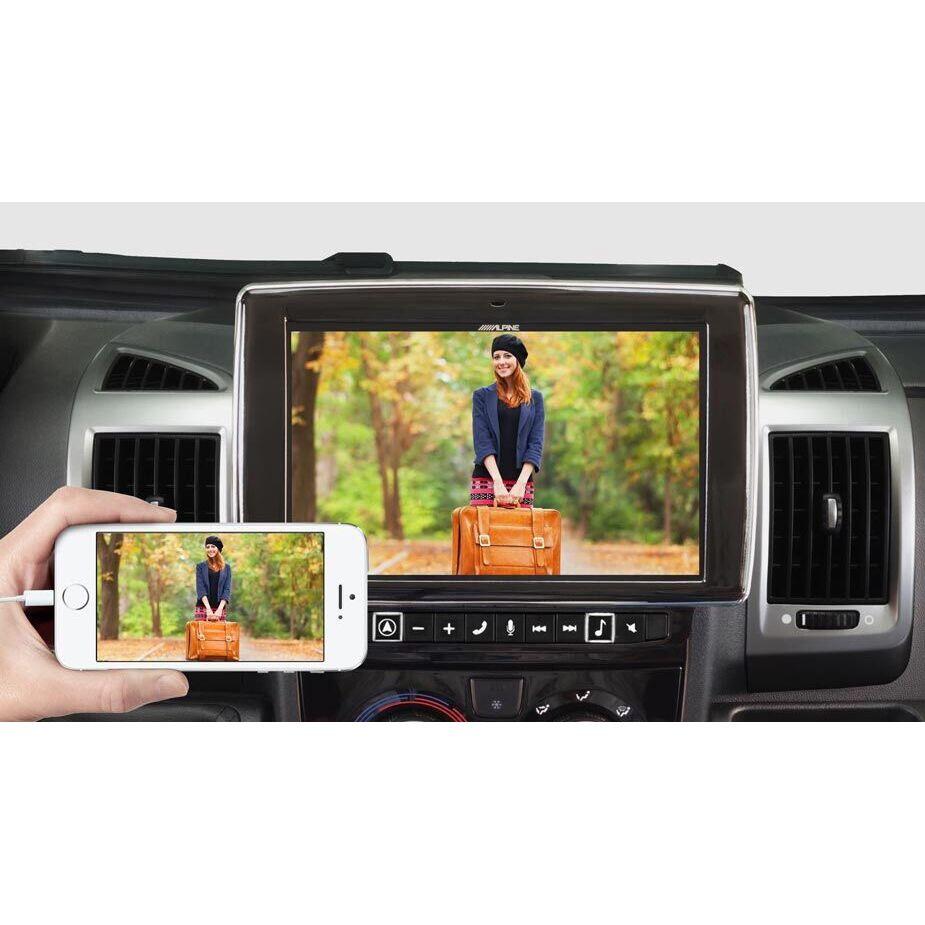

• Music and video playback
• Formats: FLAC / MP3 / WMA / AAC / AVI / MP4 / MKV playback
• File / Folder Name Search
• Tag info search
• Folder Up / Down
• MIX random play
• Repeat function

Sound tuning

• BASS ENGINE Pro
• BASS ENGINE SQ
• Subwoofer level adjustable
• Subwoofer phase selectable
• 4 V preamp output (connection cable KTX-PRE1 optional)

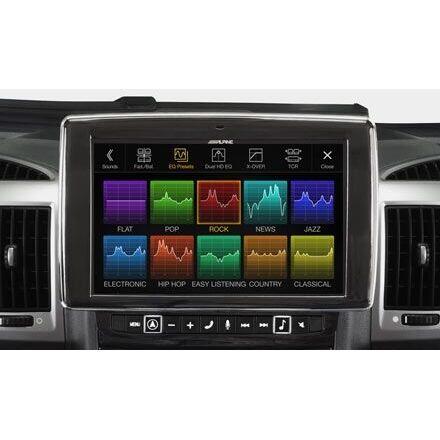

• Equalizer: Flat, Pops, Rock, News, Jazz, Electrical Dance, Hip Hop, Easy Listening, Country, Classical
• Dual HD EQ (9-band parametric equalizer (front / rear separated))
• 6-channel runtime correction
• Digital crossover
• Customizable sound settings by vehicle type
• MediaXpander HD
• Source volume adjustable
• Download online sound settings
• Easy, step-by-step sound adjustment
• "Alpine TuneIt App" ready

General

• Output power: Max. Power 4x 50 W high power amplifier
• Integrated premium quality amplifier for excellent sound
• Display: 23 cm (9-inch) capacitive WVGA high resolution display
• White LED backlight
• Touchscreen with slide function / pull and scroll function
• Customizable favorites screen
• 2 user profiles can be created
• High quality audiophile design
• Preamplifier: 3 PreOuts (4 V, front / rear / subwoofer) (connection cable KTX-PRE1 optional)
• AUX-In: 1x A / V input (cinch connection)
• Preparation for infrared remote control
• Navigation mix announcement
• Direct camera connection & built-in multi-view camera control
• Camera connection with adjustable distance marks
• Reversing camera with immediate start function (immediate display of the reversing camera when the system starts)
• Simple Mode & Info Mode display
• Visual EQ
• Live contrast setting
• Menu language: 24 languages (for AV & Bluetooth), 29 languages (navigation menu and voice prompts)
• Time
• Automatic dimmer
• Anti-theft device with number code
• Firmware updatable
• Connection for motor antenna
• Remote turn-on
• HDMI input & output (special Alpine HDMI connection cable required)
• HDMI expansion box KCX-630HD Ready
• Start-stop ready
• CAN-BUS connection port for steering wheel remote control included, ISO connection cable
• Compatible with optional DVD player: DVE-5300

installation

• Including bracket, wiring harness and SWRC interface for complete installation.

screen

• Screen size: 23 cm (9-inch) capacitive WVGA display
• LCD type: Transparent Type TN LCD
• Work system: TFT Active Matrix
• Number of pixels: 1,152,000 pixels (800 x 3 x 480)
• Lighting system: White LED backlight
• Effective number of picture elements: 99.99% or more
• Color system: NTSC, PAL

Maximum output power

• Max. Power 4x 50 W

FM tuner

• Frequency range: 87.5 - 108.0 MHz
• Mono usage sensitivity: 8.1 dBf (0.7 µV / 75 Ohm)
• 50 dB sensitivity: 12 dBf (1.1 µV / 75 Ohm)
• Alternative channel selectivity: 80 dB
• Signal-to-noise ratio (S / N): 65 dB
• Stereo channel separation: 35 dB
• Single-wave fluctuation: 2 dB

MW tuner

• Frequency range: 531 - 1.602 kHz
• Sensitivity (IEC standard): 25.1 µV / 28 dBf

LW tuner

• Frequency range: 153 - 281 kHz
• Sensitivity (IEC standard): 31.6 µV / 30 dBf

USB

• USB requirements: USB 2.0
• Max. Current consumption: 1,500 mA (CDP support)
• USB class: playback from device / mass storage
• File system: FAT 16/32
• MP3 decoding: MPEG-1/2 AUDIO Layer-3
• WMA decoding: Windows Media Audio
• AAC decoding: ACC-LC format ′ ′ .m4a ′ ′ file
• Flac decoding: Free Lossless Audio Codec flac / fla
• H.264 decoding: AVI / MP4 / MKV file with H.264 video codec and MP3 / AAC audio codec
• Number of channels: 2-channel (stereo)
• Frequency response: 5 - 20 kHz ± 1 dB * Depending on the encoding software and bit rate
• Total Harmonic Distortion - THD (at 1 kHz): 0.008%
• Dynamic range (at 1 kHz): 95 dB
• Signal-to-noise ratio: 100 dB
• Channel separation (at 1 kHz): 85 dB

GPS / Glonass

• GPS / Glonass compatible antenna included
• GPS reception frequency 1,575.42 ± 1 MHz
• GPS reception sensitivity -130 dB max.

BLUETOOTH

• BLUETOOTH version: Bluetooth V2.1 + EDR
• Output power: +4 dBm max. (Performance class 2)
• HFP (Hands Free Profile)
• OPP (Object Push Profile)
• PBAP (Phone Book Access Profile)
• A2DP: (Advanced Audio Distribution Profile)
• AVRCP: (Audio / Video Remote Control Profile)
• SPP (Serial Port Profile)

Sound tuning

• Subwoofer level adjustable: 0 to +15
• Subwoofer phase: 0 ° or 180 °
• BASS ENGINE SQ: 5 modes, level 0 to +6
• High pass filter (frequency): 20/25 / 31.5 / 40/50/63/80/100/125/160/200 Hz
• High pass filter (slope): Off / -6 / -12 / -18 / -24 dB / oct.
• High pass filter (gain): - 12 to 0 dB
• Low pass filter (frequency): 20/25 / 31.5 / 40/50/63/80/100/125/160/200 Hz
• Low pass filter (slope): Off / -6 / -12 / -18 / -24 dB / oct.
• Low pass filter (gain): - 12 to 0 dB
• Runtime correction: 0.0 to 336.6 cm (3.4 cm steps) or 0.0 - 9.9 ms (0.1 ms steps)
• Dual HD EQ - 9 band parametric equalizer for front + rear
• Parametric equalizer (band 1): 20 - 100 Hz
• Parametric equalizer (band 2): 63 - 315 Hz
• Parametric equalizer (band 3): 125 - 500 Hz
• Parametric equalizer (band 4): 250 - 1k Hz
• Parametric equalizer (band 5): 500 - 2k Hz
• Parametric equalizer (band 6): 1k - 4k Hz
• Parametric equalizer (band 7): 2k - 7.2k Hz
• Parametric equalizer (band 8): 5.8k - 12k Hz
• Parametric equalizer (band 9): 9k - 20k Hz
• Parametric equalizer (gain): ± 14
• Parametric equalizer (bandwidth): 1, 2, 3
• Source volume: ± 14

HDMI

• Input format 720p / 480p / 480i / VGA
• Output format 480p

General

• Power supply: 14.4 V.DC (11-16 V permissible)
• Preamplifier output (without clipping): 4 V / 10 kOhm
• Maximum installation angle: 30 ° to the horizontal

Dimensions

• i902D-DU: suitable for Fiat Ducato III (250/290), CITROËN Jumper II (250) and Peugeot Boxer II (250)
• Housing dimensions (W x H x D) mm: 178 x 50 x 164 mm

Compatible vehicles

For vehicles with 1-DIN radio or radio preparation.Vehicle connection wiring harness with ISO / Mini-ISO connection required.
